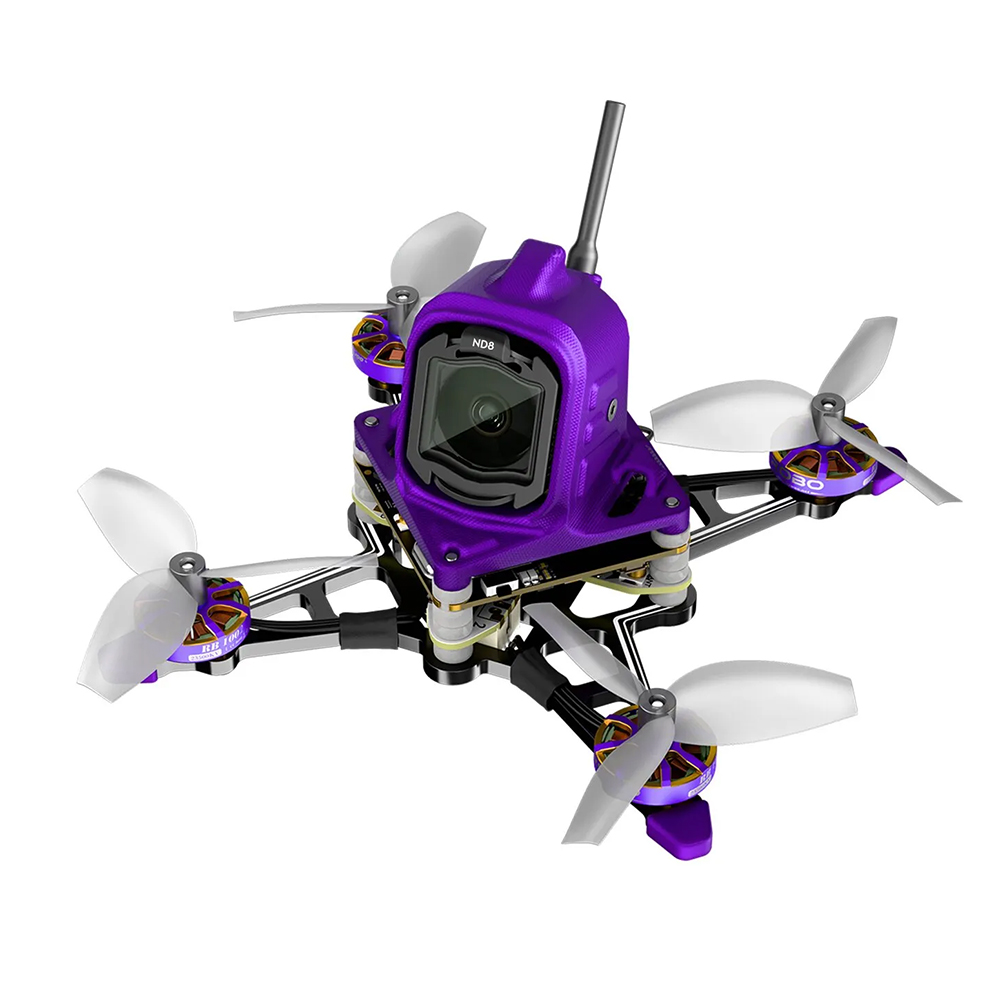

Flywoo Firefly16 Nano Baby V3 O4 Wide - 1S ELRS

Flywoo Firefly16 1S Nano Baby V3 O4 Wide is an ultralight toothpick drone for 1S batteries and 40mm (1.6") propellers. It is ideal for flying in the garden, in the park, or on smaller outdoor spaces, where you will appreciate its precise control and nimble flight. The drone is equipped with a digital image transmission DJI O4 with Flywoo Wide modification. The camera has a replaced lens for a wider FOV. The drone has motors connected via connectors, making their potential replacement very easy. The package also includes plastic propeller guards that the drone can be optionally equipped with.

Thanks to its low weight (approximately 36g without battery), flying with the drone is relatively safe while providing enough power for more dynamic maneuvers. Flight is ensured by the AIO board GOKU F405 HD 1S, which integrates the flight controller, ESCs, and UART ELRS receiver operating at a frequency of 2.4GHz. The flight controller uses a microprocessor F405 in combination with a gyro ICM42688P, and a barometer SPL06 for altitude measurement. There is 8MB of memory available for blackbox. The ESCs handle a current up to 5A and use Bluejay firmware. The motors are ROBO1002 23500Kv paired with a 1S Lipo battery with an A30 connector.

Recommended batteries are 1S with a capacity of 450–750 mAh.
