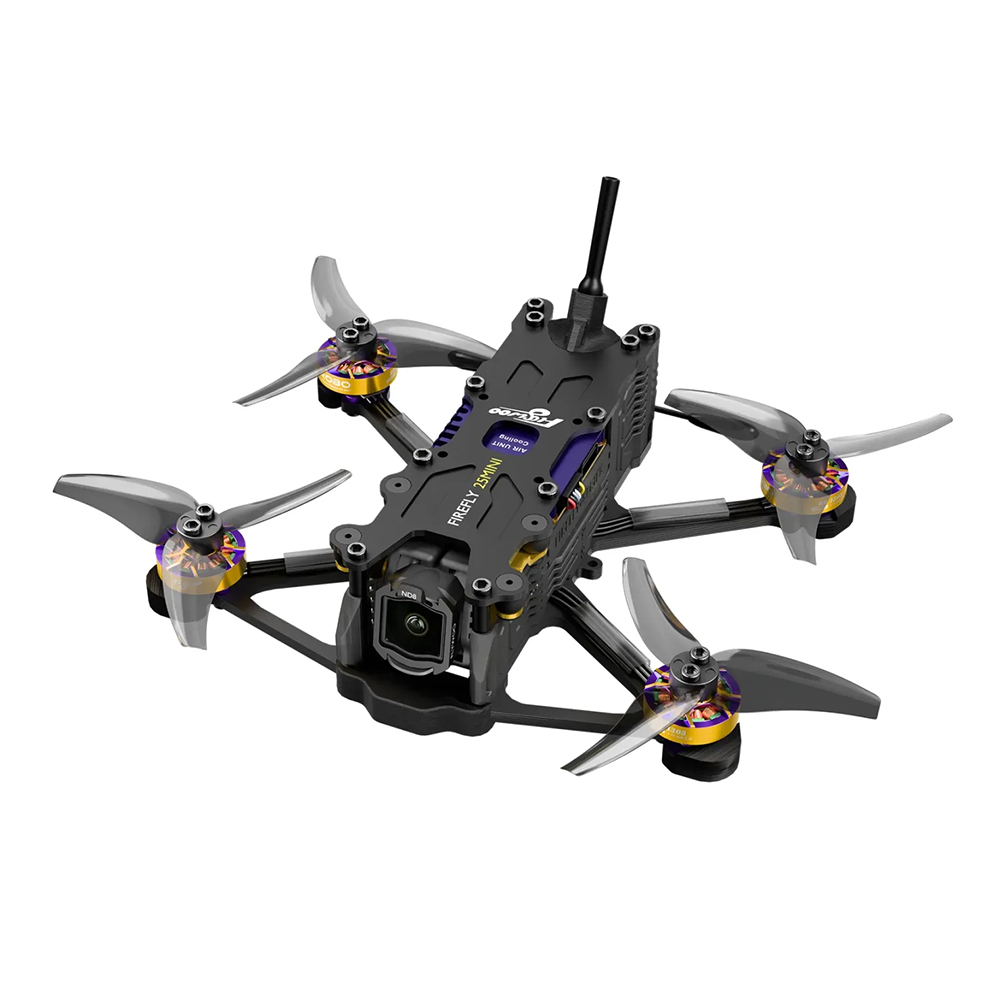

Flywoo Firefly 25MINI O4 Wide is a 2.5" drone built with DJI O4 digital transmission and a Flywoo Wide modification, where the original camera lens is replaced with one with a wider FOV. The drone is equipped with an external ELRS receiver on 2.4GHz. Flywoo Firefly 25 is suitable for relaxed cinematic flying, backyard freestyle, and smaller long-range flights.
Flight control is handled by the AIO board Flywoo GOKU F405 SE 20A with an STM32F405 processor and integrated 20A ESCs. All peripherals (GPS, RC receiver, video transmitter) connect via connectors without soldering. The board also has an integrated buzzer for easy drone location in the field. Propulsion is provided by ROBO 1303 6000Kv motors with 2520-3 propellers. Top speed is around 95 km/h with a 3S battery.
The frame has a bottom plate with arms made from a single piece of carbon with a thickness of 2.5mm. Removable side panels protect the electronics from dirt. The top plate includes a mount for the camera and the DJI O4 Pro unit. Using 4 screws, the top plate with the FPV unit can be removed and transferred to the Firefly 20Pro drone. The FPV camera is mounted via rubber softmounts with an adjustable angle of 0°–25°.
The recommended battery is a 3S LiPo with a capacity of 450–1000mAh and an XT30 connector.
Important notice: The DJI O4 camera uses a new generation of gyroscopes that are more sensitive to vibrations. This may affect the proper functioning of RockSteady and Gyroflow stabilization.
Key Features
- Motor diagonal distance: 122mm
- Bottom plate thickness: 2.5mm
- Recommended battery: 3S 450-1000mAh XT30
- Video transmission: DJI O4 with Flywoo Wide modification
- Flight controller: GOKU F405 SE 3-4S 20A AIO
- MCU: STM32F405
- Blackbox memory: 8MB
- Receiver: external ELRS 2.4GHz
- Motors: ROBO 1303 6000KV (1.5mm shaft)
- Propeller size: 2.5"
- Weight: 99.5g without battery
User Guides
Package Includes
- 1x Drone
- 1x ND8 filter
- 2x Propeller set
- 2x LiPo strap
- 2x Side panel set
- 1x USB cable
- 1x Softmount set
- 1x Screw set
