Flywoo Explorer LR HD WTFPV - 4S ELRS

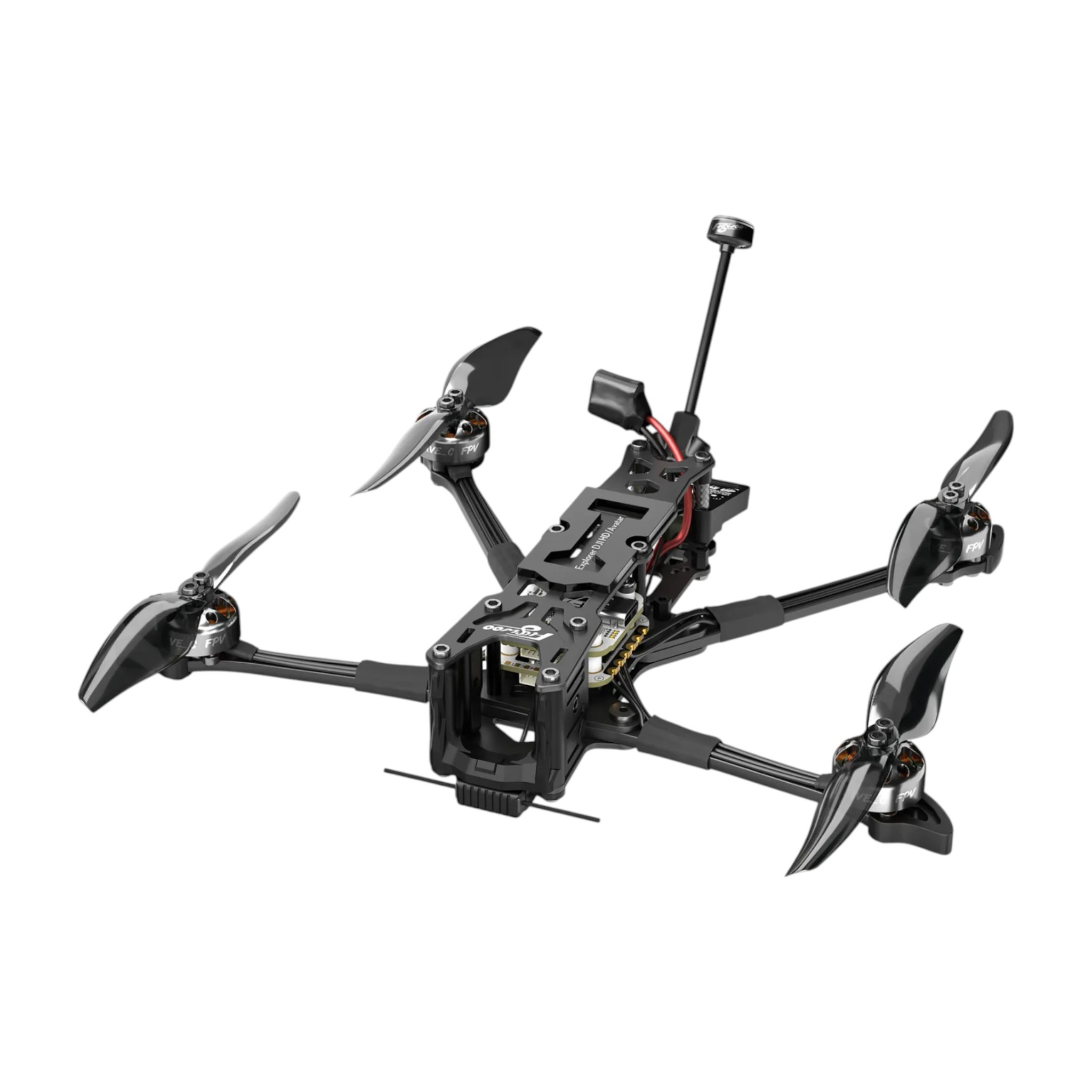

Flywoo Explorer LR4 is a small 4" drone suitable for a calm cruise or long-range. Due to its light weight of 159.3 g, it is quiet and has a long flight time. The drone is delivered without video transmission. It is designed for the installation of the DJI O4 unit. The frame has a deadcat shape, where the front arms are shifted more to the side and back, so the edges of the propellers are not visible in the image. The drone is equipped with a GPS module by default, enabling automatic return to the launch point. A great addition is also a beeper with its own battery that starts beeping if the main battery is disconnected during a crash.

The drone is powered by NIN1404 2750Kv motors with 4" two-blade propellers and a 4S battery. The flight is controlled by the GOKU F7 Mini flight controller with ICM42688 gyro and 16MB memory for blackbox, along with a barometer for altitude measurement. The regulators use 32-bit firmware and can handle currents up to 45A. The drone is equipped with ELRS 2.4 GHz receiver Flywoo EL24P for sufficient range.

Recommended batteries are 4S with a capacity of 650-1000 mAh or 4S Li-ion batteries from 18650.

The drone is delivered in a version without a video unit.
