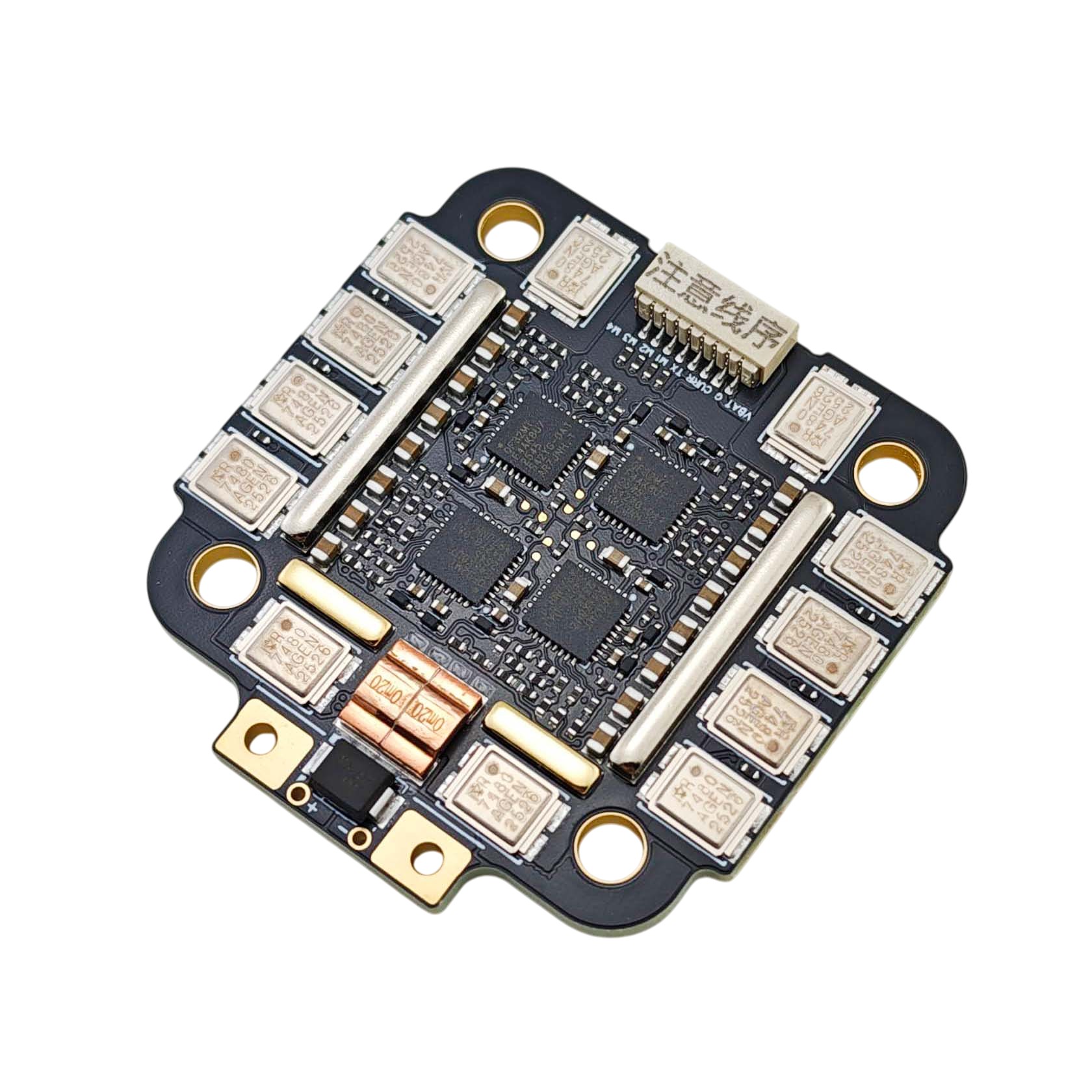

FlyingRC 4in1 75A ESC is a 4in1 controller suitable for 4-12" drones powered by 3-7S LiPo batteries. This board is aimed at heavier freestyle and long-range builds where high current reserve is needed.
The controller handles a continuous current of 75A per channel. The ESC is equipped with gold-plated Infineon IRF7480 MOSFETs with an on-state resistance of only 0.95mΩ, whose metal package is in direct contact with the chip, ensuring efficient heat dissipation. The PCB has 10 layers with 2oz copper and four surface-soldered gold-plated copper strips that help conduct current and reduce resistance and heat generation. Control is handled by a 32-bit QF32F4AK8U7 processor at 120MHz with an integrated ID6288 driver. The controller uses AM32 firmware, supports DShot150/300/600, OneShot and PWM, and handles sinusoidal startup with high torque at low RPM. It includes a current sensor with scale 100. The supplied 680uF/35V capacitor and power cable with XT60 connector must be soldered to the controller.
The controller has a mounting spacing of 30,5x30,5mm with a mounting hole M4 (M3 with softmount). It connects to the FC with an 8-pin SH1.0 cable.
FlyingRC is a drone and robotics electronics brand whose development team is based in Singapore.
Key Features
- Input voltage: 3-7S LiPo
- ESC MCU: QF32F4AK8U7 (120MHz)
- ESC firmware: AM32
- Continuous current: 75A
- Input protocol: DShot150/300/600, OneShot, PWM
- MOSFETs: Infineon IRF7480 (gold-plated package, 0.95mΩ)
- Current sensor: Yes (scale 100)
- Protective TVS diode: Yes
- Mounting holes: 30,5x30,5mm — M4 (M3 with softmount)
- ESC dimensions: 45x45,2x5,5mm
- ESC weight: 18,6g
User Guides
Package Includes
- 1x Controller
- 1x 680uF/35V capacitor
- 1x XT60 connector with 12AWG 12cm cable
- 1x Set of cables and accessories
