FlyfishRC Totem 25-2500mW

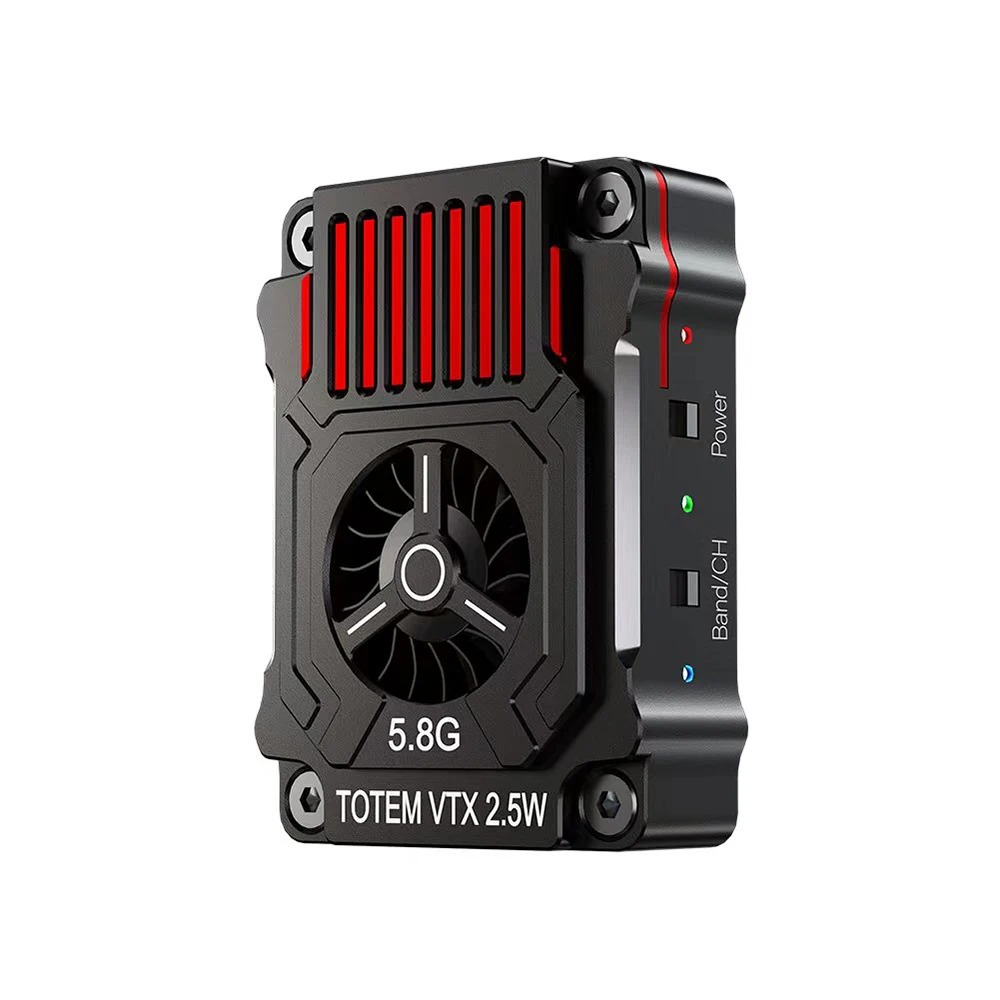

This is a powerful analog video transmitter with a maximum power of up to 2.5W. The video transmitter is thus especially suitable for long-range or freestyle drones. The VTX is cover in an aluminum casing, which acts as a heatsink while protecting sensitive components from dirt. For optimal cooling even before the drone is launched, the video transmitter is equipped with a small fan. The video transmitter can be powered with voltages in the range of 7-36V (2-8S) and includes a 5V BEC for powering the camera. Changing channels, band and output power can be done using the button or more conveniently via the flight controller using the IRC Tramp protocol. The antenna is connected via a MMCX connector. For easier attachment to the drone, the video transmitter has 25.5x25.5mm M2 mounting holes.
