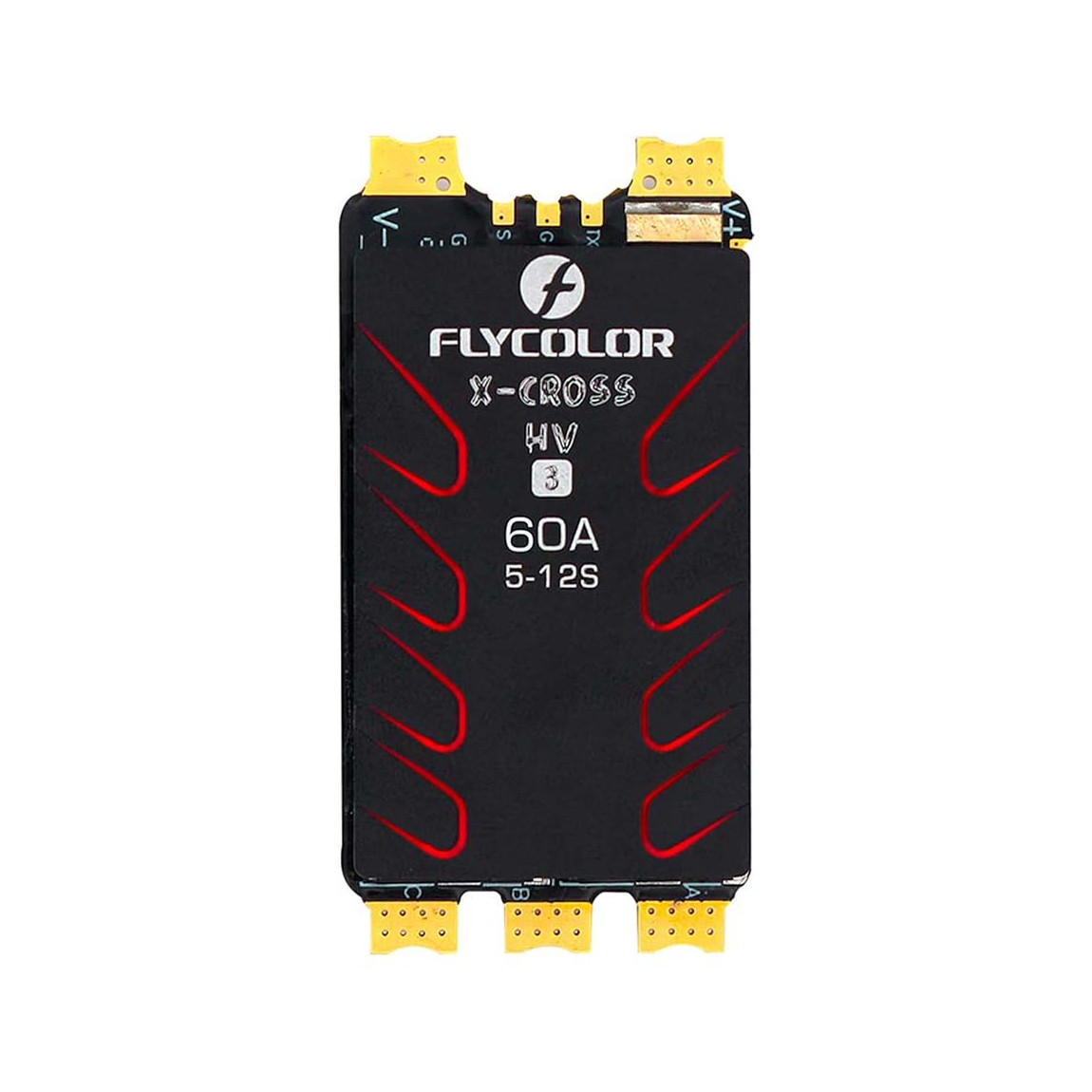

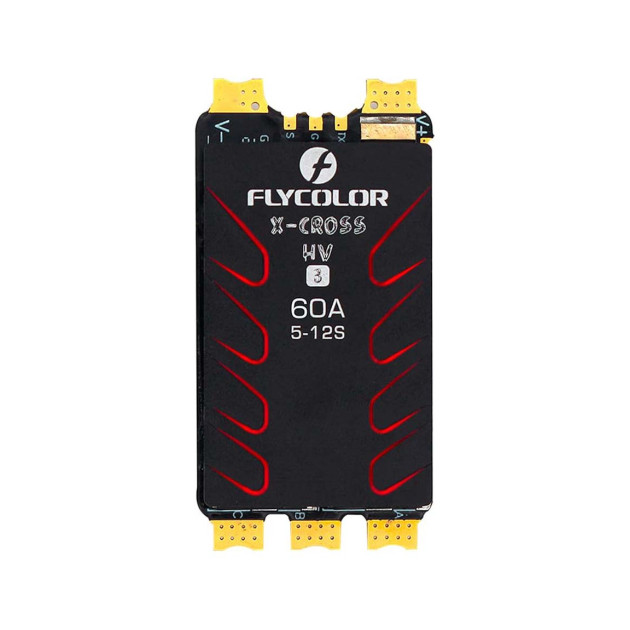

Flycolor X-Cross HV3 60A 5-12S BL32

Flycolor X-Cross HV3 is a high-end ESC designed for powerful FPV drones and aircraft. It supports up to 60A continuous current and is compatible with 5–12S LiPo batteries, making it ideal for larger drones with 10–15" propellers. The ESC features an aluminum heatsink that helps dissipate heat and provides mechanical protection for sensitive components. For high current setups, external capacitors (included in the package) should be used.

The ESC runs BlHeli_32 firmware, allowing you to configure a wide range of parameters such as motor direction, 3D mode, motor timing, and PWM output frequency up to 128kHz. Configuration is most convenient via PC using the BlHeliSuite32 software. You can download the configurator here. To connect the ESC to your PC, a USB-to-serial adapter or flight controller is required.
