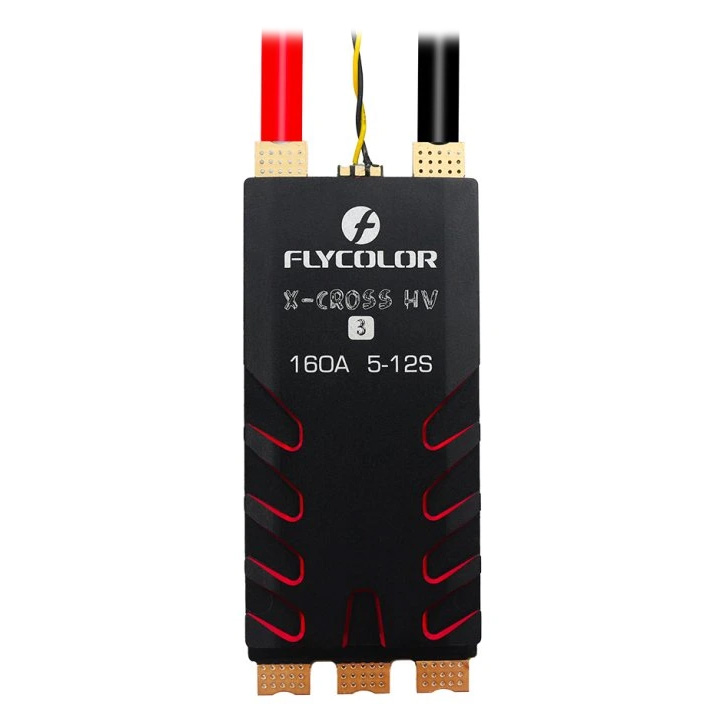

Flycolor X-Cross HV3 160A 5-12S BL32

Flycolor X-Cross HV3 is a premium ESC for high-performance FPV drones and aircraft models. The ESC can handle current up to 160A and allows powering 5-12S Lipo batteries. It is thus suitable primarily for large 20-30" drones or F3A planes. The ESC is equipped with aluminum heatsinks to help dissipate heat. Capacitors are already installed on the ESC. A 50cm long servo cable and 10AWG power cables of 30cm are also soldered on.

The ESC uses the BlHeli_32 firmware. With this firmware, you can set a large number of parameters in the ESC, such as rotation direction, 3D mode support, timing, output PWM frequency up to 128kHz, motor timing, and more. The settings are most conveniently done via a computer using the configurator. You can find the configurator for settings here. To connect the ESC to the PC, a USB converter or flight controller is needed.
