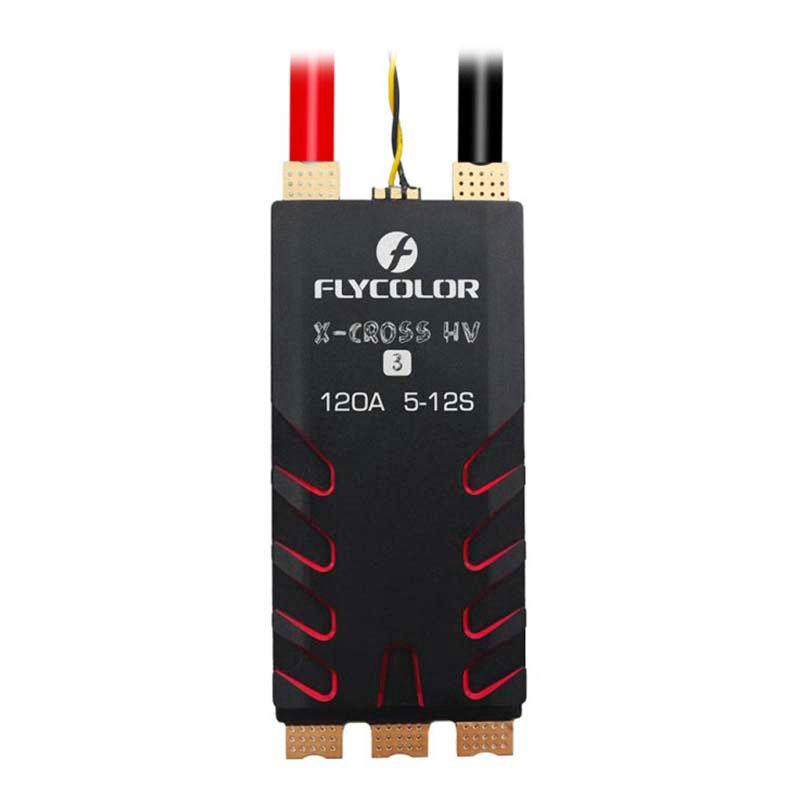

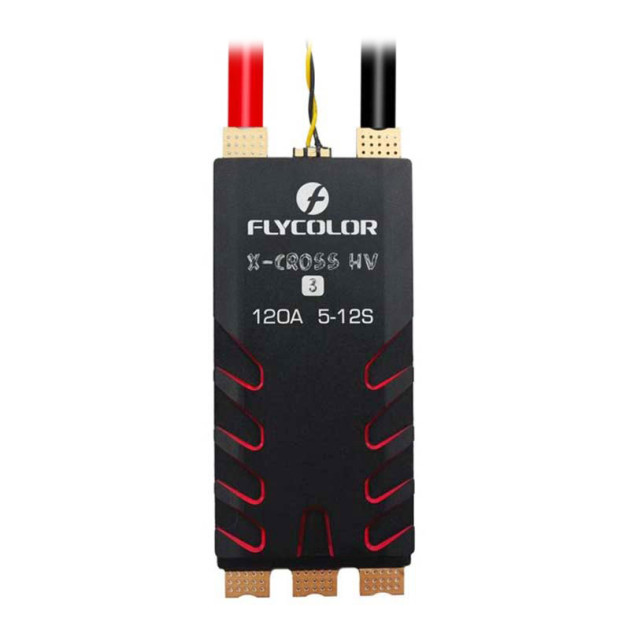

Flycolor X-Cross HV3 120A 5-12S BL32

Flycolor X-Cross HV3 is a top-tier ESC designed for powerful FPV drones and aircraft. It supports up to 120A of continuous current and is compatible with 5–12S LiPo batteries. This makes it especially suitable for large 20–30" drones or F3A competition planes. The ESC features robust aluminum heatsinks for efficient cooling. Capacitors are pre-installed, and the unit comes with a pre-soldered 50cm servo cable and 30cm 10AWG power wires.

The ESC runs on BlHeli_32 firmware, allowing a wide range of settings such as motor direction, 3D mode support, timing, and PWM output frequency up to 128kHz. Configuration is easiest via PC using the BlHeliSuite32 software. You can download the configurator here. To connect the ESC to your PC, a USB-to-serial adapter or a flight controller is required.
