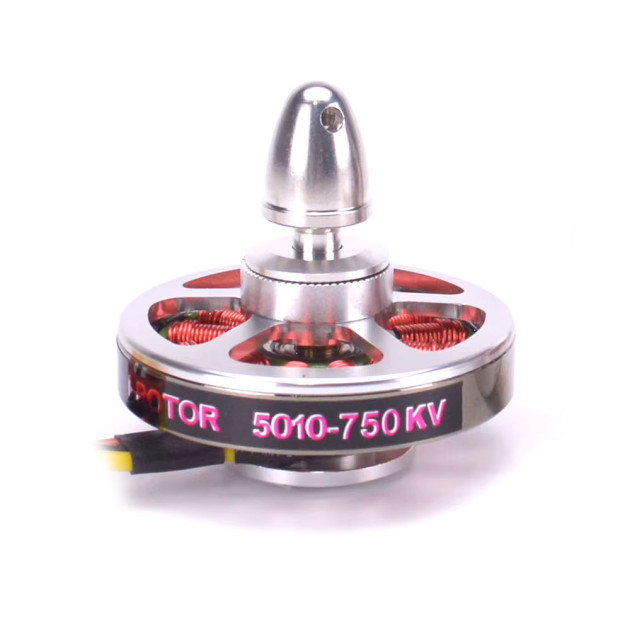

FlyCat i-Rotor 5010 750Kv

FlyCat i-Rotor 5010 750Kv is an affordable motor for 12–16" lightweight carbon propellers with 4–6S battery. The motor uses weaker NdFeB magnets and windings resilient up to 140 °C. It is particularly suitable for more affordable testing platforms that aim for longer flight times rather than maximum performance. The motor features mounting holes with a diagonal spacing of 19 × 16 mm M3. The propeller can be mounted using the T-Mount system with two screws spaced 12 mm apart or via the included adapter for a 6mm shaft. The weight of the motor is approximately 90 grams, including 18AWG cables with a length of 35 centimeters.

5010 indicates the outer dimensions of the motor. The stator dimensions are 40 mm in diameter and 7 mm in height.
