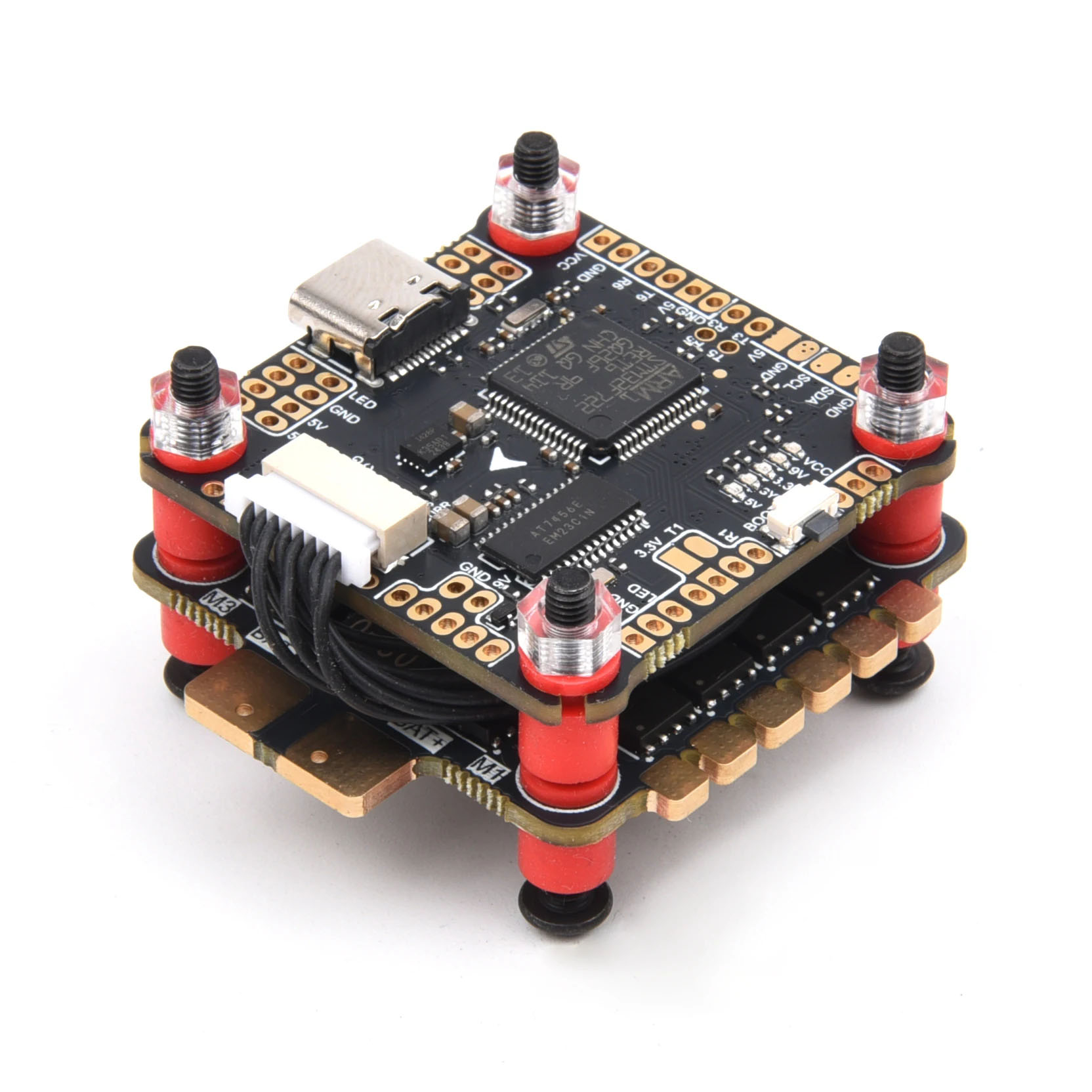

Readytosky F722 + 60A BLS is an affordable stack consisting of an F7 flight controller and 60A ESC, suitable for freestyle and long-range drones powered by 3–6S batteries. The flight controller is based on an F722 processor with an ICM42688P gyro. It features 16MB of blackbox memory, 5V/3A and 9V/2A BECs, and an OSD chip for analog video. A durable USB-C connector is used for PC connection. The board includes large solder pads for easier soldering and a connector for digital video transmission modules.
The stack is complemented by an ESC rated for up to 60A, running BlHeli_S firmware. It also features a current sensor.
Key Features
- Input voltage: 3-6S
- Processor FC: STM32F722
- Gyro: ICM42688-P
- BEC: 9V@2A, 5V@3A
- Blackbox: 16MB
- Current: 4x60A
- ESC FW: BlHeli_S
- Current sensor
- Mounting holes: 30.5x30.5mm M3
User Guides
Package Includes
- 1x Flight controller
- 1x ESC
- 1x Capacitor
- 1x XT60 with cable
- 1x Cable set
- 1x Screw set
- 1x Softmount set
