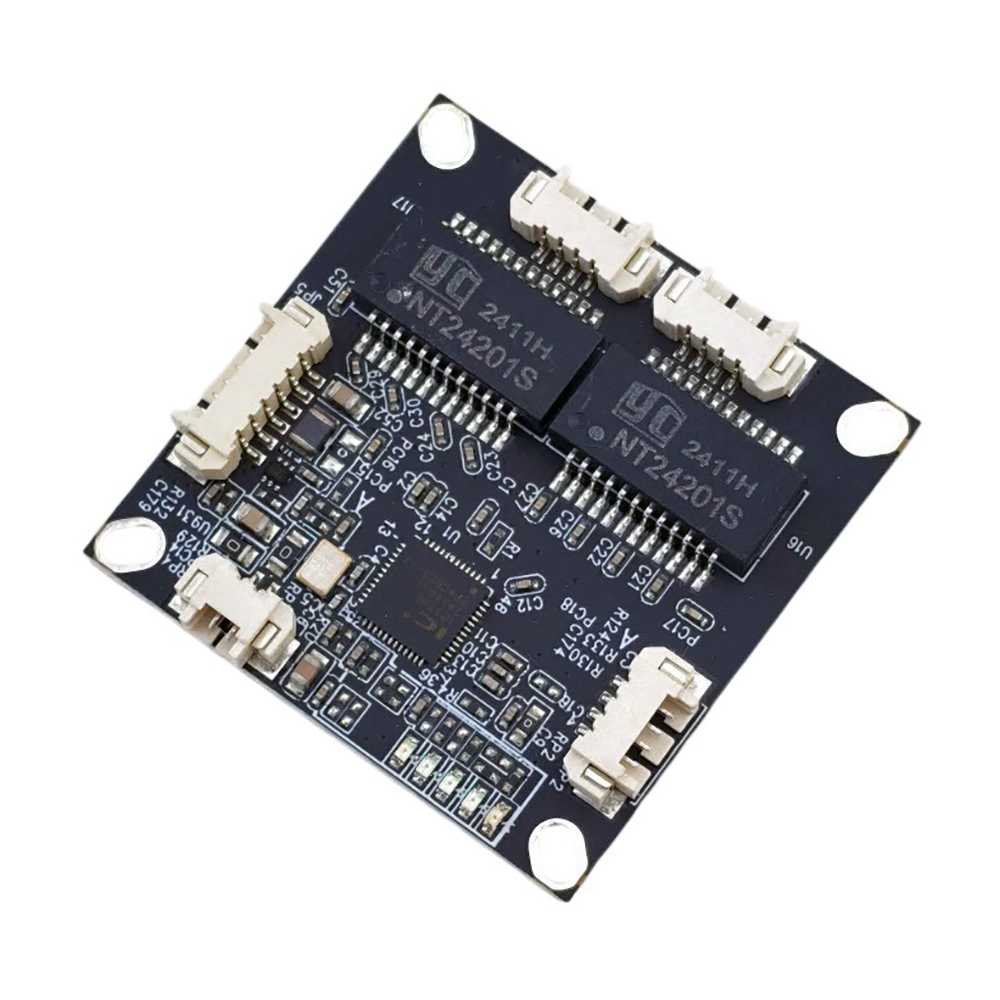

Ethernet Switch 4port 10/100M is a compact network switch designed for integration into embedded systems, robots or drones. It offers 4x 10/100 Mbps Ethernet ports with automatic speed detection and support for Auto MDI/MDIX, eliminating the need to worry about cable types. It is powered by 12V DC.
The switch operates as an unmanaged device with no configuration required and supports IEEE 802.3 / 802.3u / 802.3x standards. Using the store and forward method, it ensures reliable data transmission without collisions and automatically adapts to network conditions. Each port supports auto-negotiation and the device features automatic learning of MAC addresses.
With very small dimensions of 38x38x7 mm and a weight of approximately 12 g, it is ideal for installation in confined spaces. The status of the device is indicated by LED indicators for power and activity of individual ports.
The Ethernet Switch 4port 10/100M is suitable for applications where network connectivity needs to be expanded in a compact form factor without the need for configuration.
Key Features
- Power: 12V
- Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
- Speed: 10Base-T/100Base-TX adaptive
- Consumption: 0.9-2W
- Size: 38x38mm
- Weight: 12g
- Number of Ethernet ports: 4
Package Includes
- 1x Switch
- 1x Cable set
