Emax OpenIPC Wyvern Link Alpha 800mw

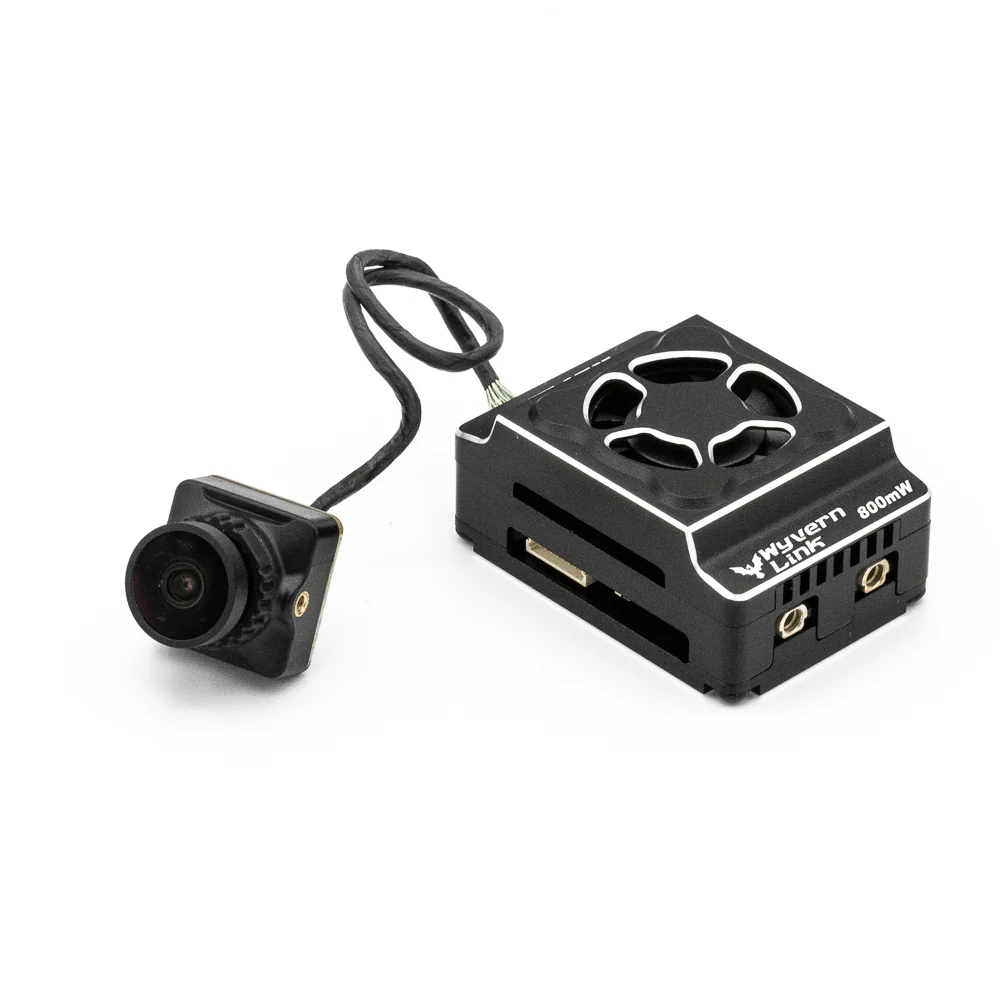

EMAX OpenIPC Wyvern Link Alpha 800mW is a combination of a camera and a video transmitter for digital image transmission in the OpenIPC or RubyFPV systems.

OpenIPC is an open project for digital FPV image transmission. It utilizes IP cameras and Wi-Fi modules, which can build an HD video transmission for RC models with relatively low latency. This project is often used for experimental or development FPV systems, where total control over hardware and software is required. The Wyvern Link Alpha is a pre-built and configured unit that significantly simplifies the deployment of OpenIPC transmission. The Alpha designation indicates that it is an early edition.

For easy installation into the frame, the camera has a standard size of Micro (19mm). The camera uses the IMX415 sensor, which supports a resolution of 1080P at 90 FPS or 720P at 120 FPS. The camera is connected to the transmission unit via a MIPI cable, which allows a maximum transmission power of 800mW. The transmitter is housed in an aluminum case that helps dissipate heat and protect sensitive electronics from mechanical damage. For better cooling during longer flights, the transmitter is equipped with an active fan. The unit uses two antennas connected via a MMCX connector. Configuration of the VTX and camera is possible via an Ethernet port or USB-C directly from a computer. The transmission unit is powered by a voltage range of 7.6-24.6V (2–6S).

OpenIPC is recommended for technically skilled users. WiFi video transmissions are mainly suitable for FPV wings and drones with GPS stabilization. Due to higher latency, the transmission is not suitable for freestyle or racing drones.
