Emax F4 Magnum Mini (MPU6000, BL32)

€ 81,54

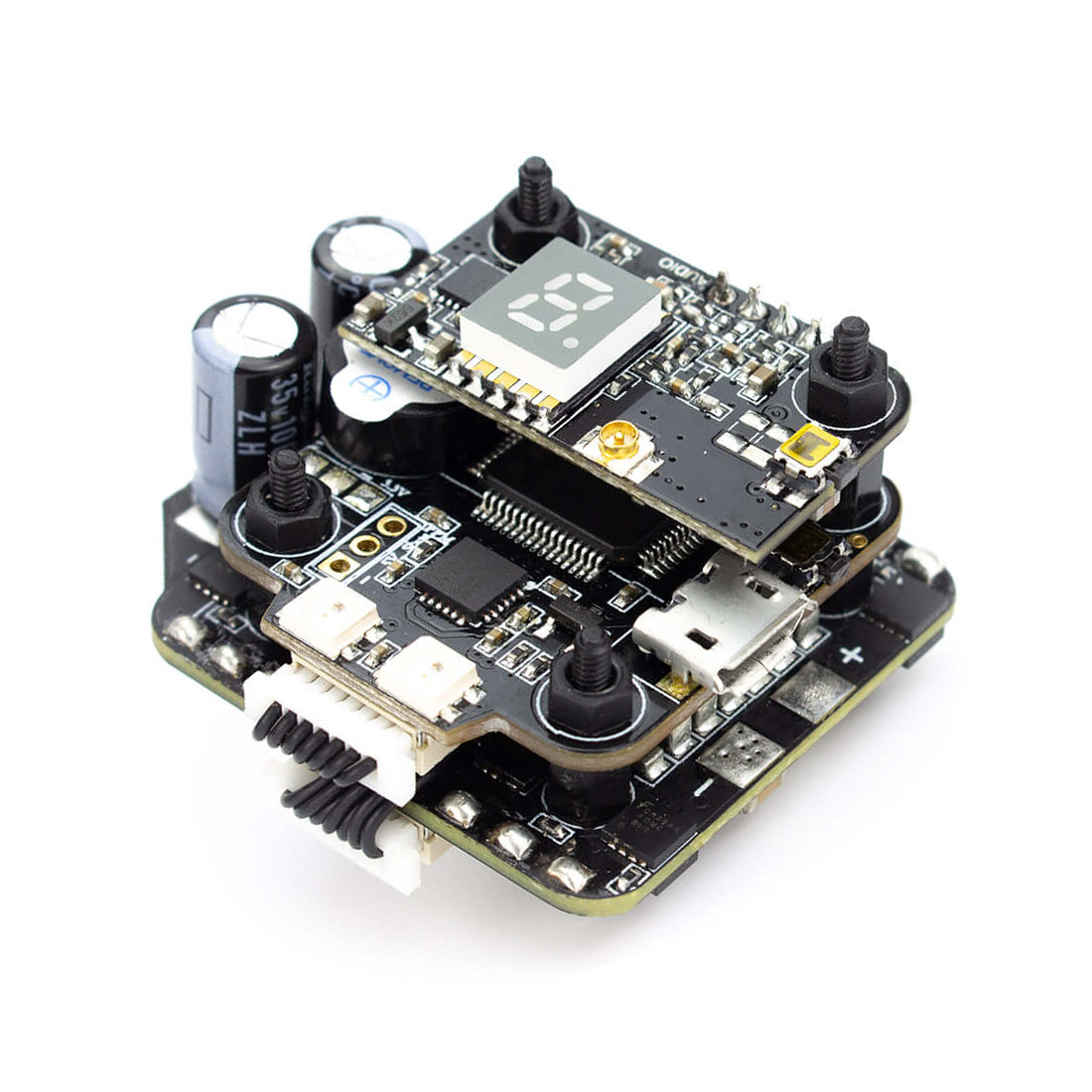

The Emax F4 Magnum Mini is a solid stack of FC, ESC and video transmitter in one, especially suitable for 3-4" copters, cinewhoops and 5" ultralights. The basis is a FC with an F4 processor and a reliable MPU6000 gyro. The board has an OSD, 2 LEDs and a powerful 5V 3A BEC. The biggest advantage of this stack are the ESC. They use BlHeli_32 firmware, also support 6S and can handle a load of up to 35A. Two capacitors then take care of filtering the input voltage. The stack also includes a video transmitter with a u.FL connector and a power of 25/200mW. The video transmitter supports Smart Audio protocol settings.

You can find the English instructions here.

Key Features

  • Input voltage: 2-6S
  • FC processor: STM32F405
  • Gyro: MPU6000
  • BEC: 5V@3A
  • BF Target: Omnibus F4
  • Maximum current: 35A
  • ESC firmware: BlHeli_32
  • VTX protocol: Smart Audio
  • Number of channels: 40
  • Power: 25/200mW
  • Input voltage: 5V
  • Mounting holes: 20x20mm M2
  • Size: 35x28x20mm

Package Includes

  • 1x Stack (FC+ESC+VTX)
  • 1x XT60 connector
  • 1x SMA pigtail
  • 1x Linear antenna
