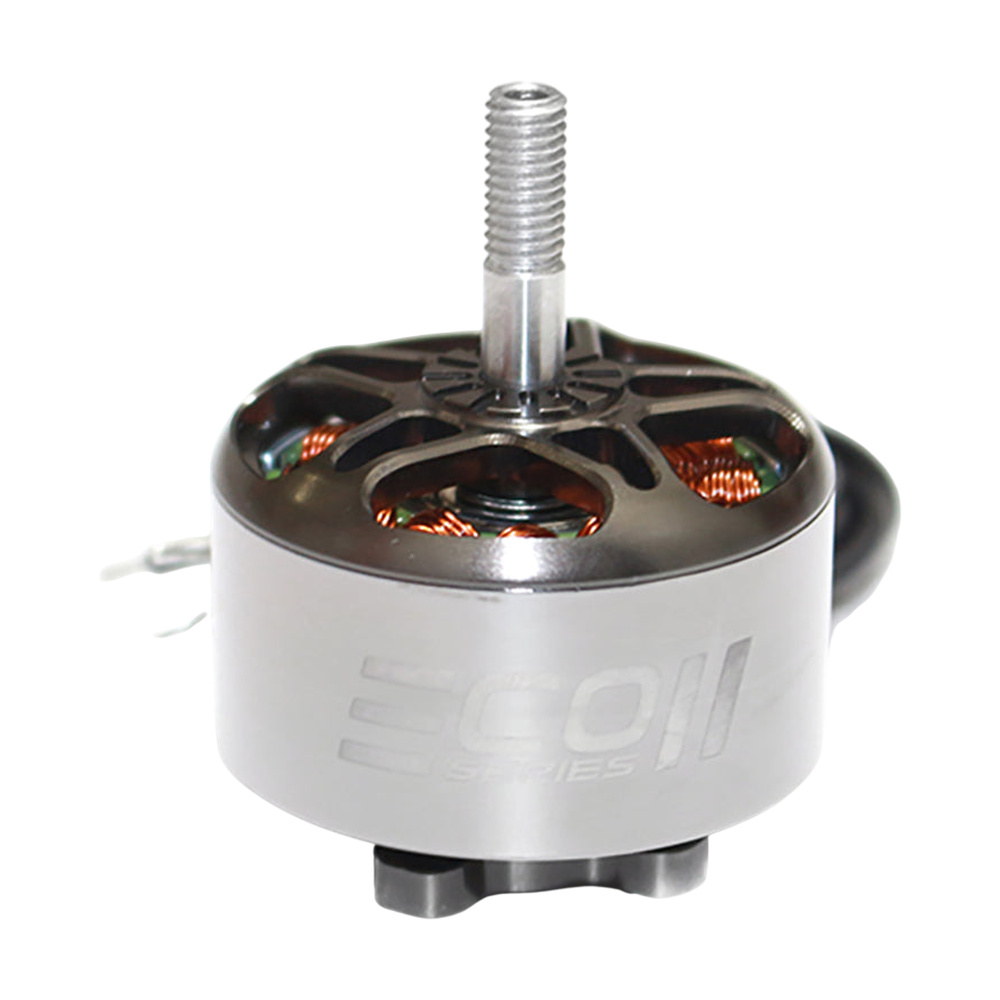

Emax Eco II 3115 900Kv is a powerful motor suitable for 10" long-range drones with 6S LiPo batteries. It is the largest motor in the affordable Eco II series.

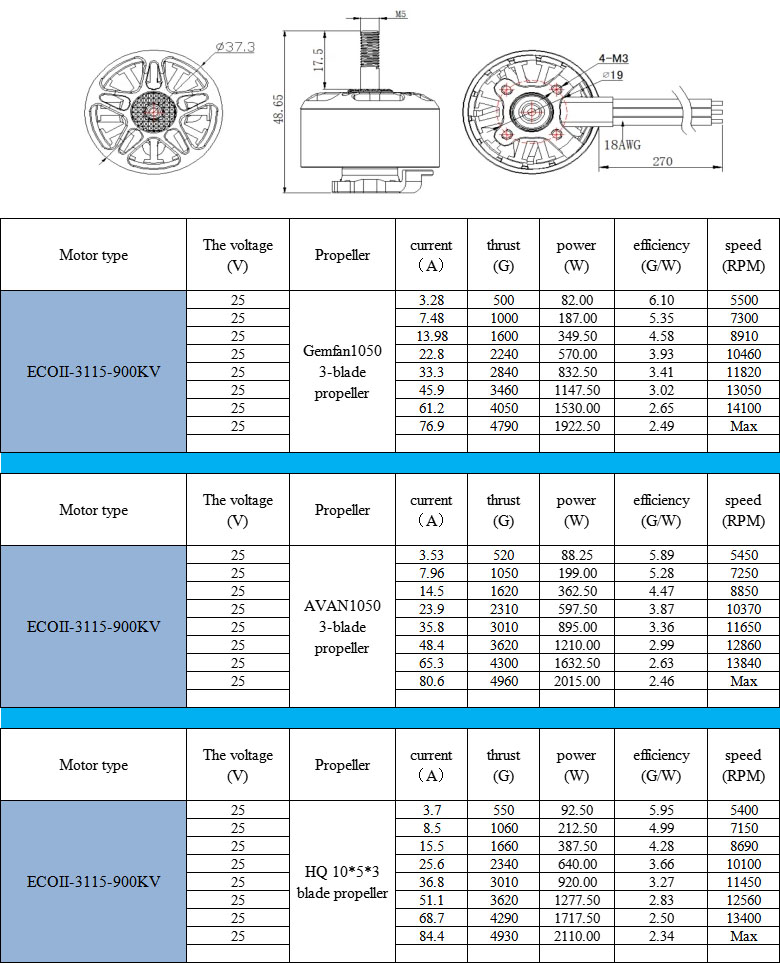

The motor has a 5mm shaft and M3 19x19mm mounting holes. With a diameter of 37.3mm and a height of 48.65mm, it weighs 105 grams without cables; the 18AWG cables are 270mm long. At full throttle, the motor draws up to 85A.
Key Features
- Size: 3115
- Kv: 900
- Configuration: 12N14P
- Mounting holes: 19x19mm M3
- Shaft: 5mm (M5)
- Dimensions: φ37.3x48.65mm
- Cables: 18AWG, 270mm
- Stator: 31x15mm
- Shaft length: 17.5mm
- Battery: 6S
- Recommended propeller: 10"
- Internal resistance: 42mΩ
- Weight: 105g (without cables)
Package Includes
- 1x Motor
- 1x Screw set
