DYS Mini F4
Discontinued
€ 15,89
37.29
-57% OFF!

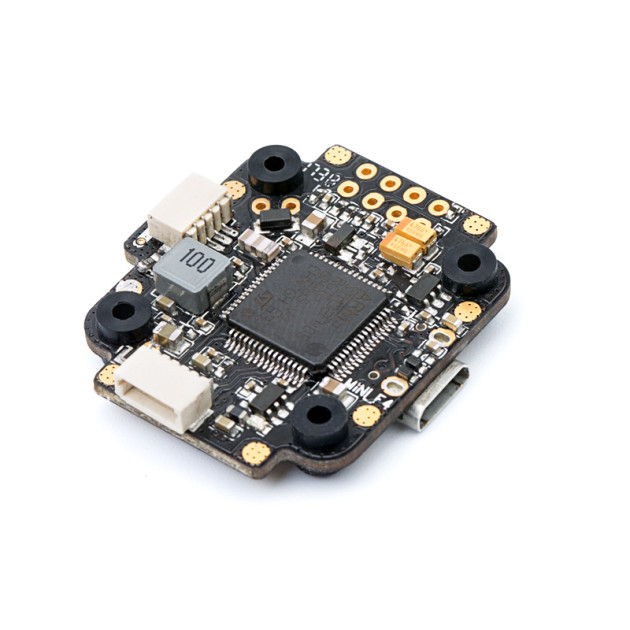

Powerful all-in-one 20x20mm control unit built on the F4 processor and modern gyro. This control unit also serves as PDB and OSD. Just solder 4 regulators (or use DYS F18A 4in1 controller) and you're done. Thanks to the all-in-one board, you save space and weight, and you'll make the drone build faster.
The board is supplied with a softmount mount, making it even better and smoother.
Key Features
- DYSF4PRO firmware
- STM32F405 GRT6, frequency up to 8kHz
- PCB 3OZ
- 5V 2A BEC
- simple installation thanks to well-accessible soldering pins
- compatible with all controllers, the DYS F18A 4in1 can be connected without any soldering
- integrated OSD, all can be easily set up via the Betaflight OSD
- possibility to set PID through OSD
- possibility to set VTX (band, channel, performance) through SmartAudio (applies to TBS Unify transmitters)
- softmount mount to minimize vibration and better flight characteristics
- input voltage 2-4S lipo
- weight: 6g
- size: 33 * 30mm, mounting size: 20 * 20mm
- gyro: MPU6000
