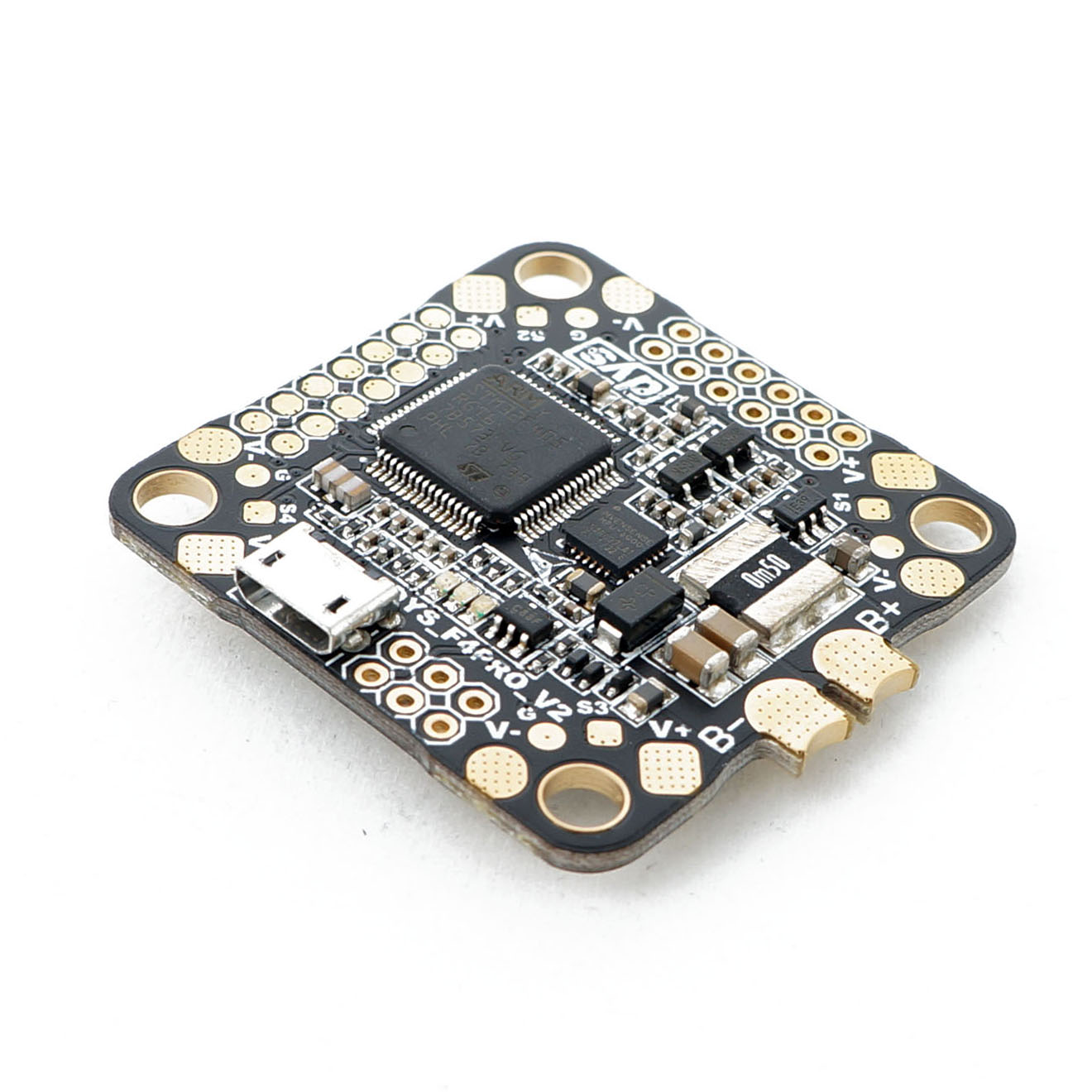

Powerful all-in-one control unit built on the F4 processor and modern gyro. This control unit also serves as a PDB with current sensor and OSD. Just solder 4 regulators (or use DYS F30A 4in1 controller) and you're done. Thanks to the all-in-one board, you save space and weight, and you'll make the drone build faster.
The board is supplied with a softmount mount, making it even better and smoother.
Key Features
- OMNIBUSF4 firmware
- STM32F405 GRT6, frequency up to 8kHz
- PCB 3OZ
- 5V 3A BEC
- simple installation thanks to large and easily accessible soldering pins
- compatible with all controllers, plus DYS 4in1 can be connected without any soldering
- integrated OSD, all can be easily set up via the Betaflight OSD
- built-in high-precision current sensor, which makes it possible to measure current current and total consumption / remaining capacity of the battery
- possibility to set PID through OSD
- possibility to set VTX (band, channel, performance) through SmartAudio (applies to TBS Unify transmitters)
- softmount mount to minimize vibration and better flight characteristics
- input voltage 2-6S lipo
- weight: 11.2g
- size: 42 * 36mm, mounting size: 30.5 * 30.5mm
- gyro: MPU6000
- 3.3V output
