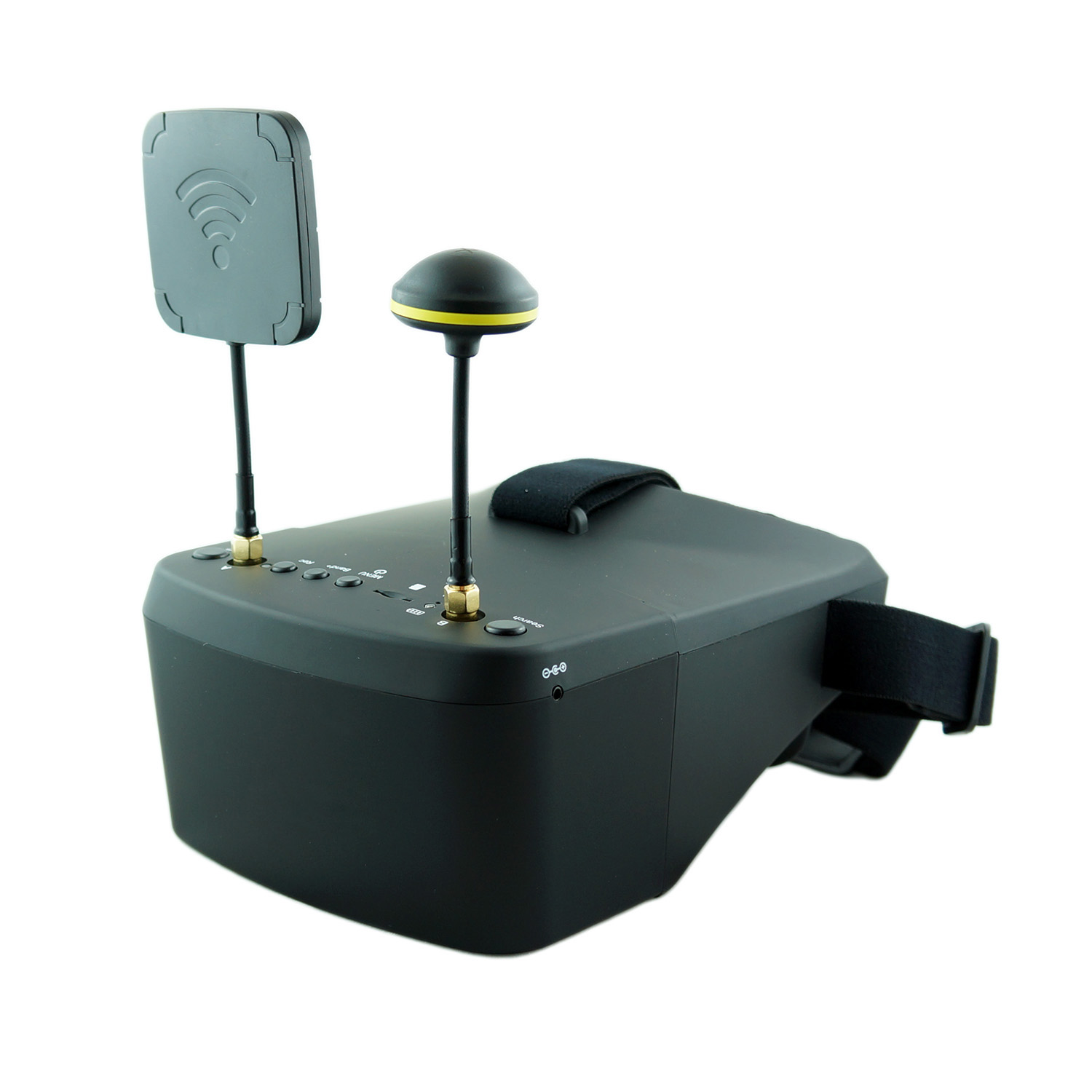

DMKR EV800D are basic FPV goggles at an affordable price. The foundation is an LCD display with a diagonal of 5", an aspect ratio of 16:9, and a resolution of 800x480 pixels, which is sufficient for displaying analog video signals. The main advantage of the EV800D goggles is the ability to remove the display section, which you can then use as a preview screen for spectators. The image reception is handled by a dual receiver that supports all standard 40 channels in combination with an omnidirectional and directional antenna with circular polarization. Power is provided by an integrated 2S battery with a capacity of 1430mAh, lasting for 2-3 hours of operation. The battery is charged via a DC055 connector with a 12V power supply included in the package. The goggles support DVR functionality, allowing you to record the received image on an SD card of up to 16GB (FAT32). Headphones or an external video receiver can be connected to the goggles. The goggles are delivered in a hard zippered case.
\r\n\r\n
\r\n\r\n
Key Features
- Dimensions: 180 x 145 x 84mm
- Screen diagonal: 5"
- Screen resolution: 800 x 480 pixels
- Ability to detach the screen from the headpiece
- Built-in battery 3.7V/1430mAh providing 2-3 hours of operation
- Charging via DC055 connector with external 12V power supply
- Built-in dual receiver
- Support for external image source input
Package Includes
- FPV goggles
- Omnidirectional antenna
- Panel antenna
- Charging cable with JST connector
- 12V power supply for charging
- Audio/video cable
- Case
