DJI O4

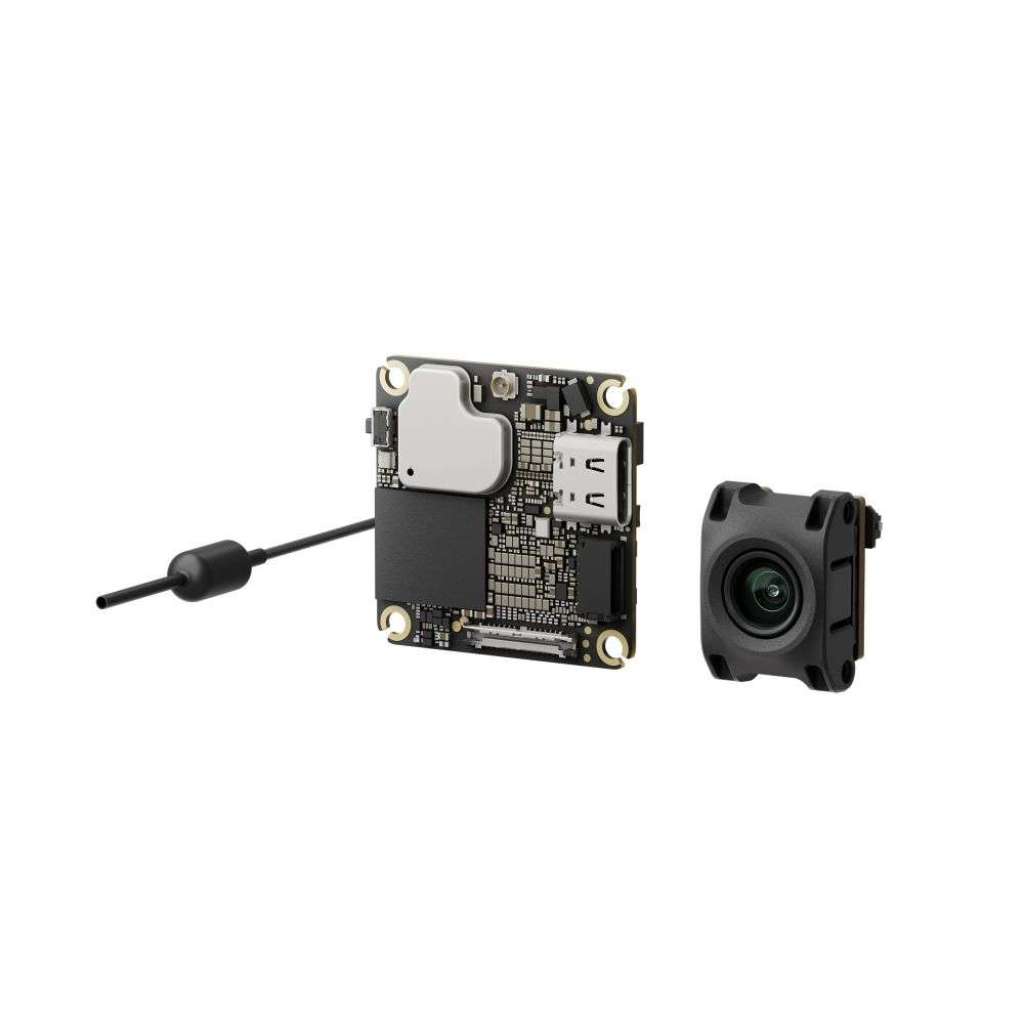

DJI O4 is a high-end digital video transmission system for smaller FPV drones or racing FPV drones. The set consists of a camera, transmission module and one antenna. DJI O4 offers excellent image transmission in 1080p resolution at 100 fps with a data rate of up to 60 Mbps. The unit also allows video recording directly on the drone, up to 4K resolution at 60 fps. The recorded video is stored in the internal 23 GB memory. Image stabilization is possible either instantly with DJI Rocksteady or later using Gyroflow. For racing enthusiasts, there is a Racemode available, promising low latency down to 20 ms. The video transmission supports the so-called Canvas Mode, where you can use the standard OSD layout from the flight controller. Power supply is possible with a 2–3S Lipo battery (3.7–13.2 V). The transmission module has M2 mounting holes with a spacing of 25.5x25.5 mm.

DJI O4 Pro is intended for use with DJI Goggles 3 or DJI Goggles N3 and DJI Controller 3.

DJI O4 Pro can also be used with DJI Goggles 2 or DJI Integra with DJI Controller 2. In this case, however, Racemode is not available and the maximum bitrate is limited to 50 Mbps.
