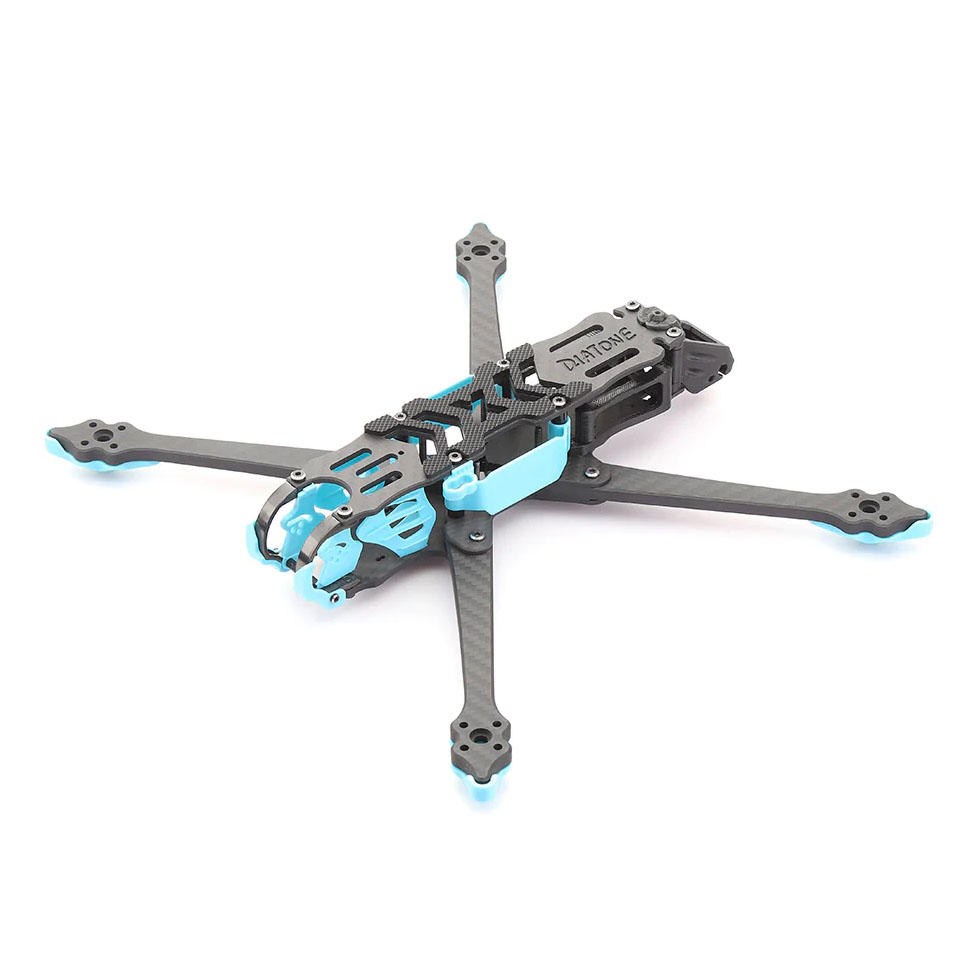

Roma F7 is a frame for 7" freestyle drone suitable for longer distance flights.
The main advantages of the frame are durable camera cage made of 7075 aluminum alloy, 6mm thick arms, plastic stack cover and a set of 3D printed accessories. The frame also includes a plastic battery cable holder. This keeps the XT60 securely against the frame and minimizes the chance of propeller cables being cut. The frame fits motors with 16x16mm M3 mounting hole spacing. The frame has stack holes with both 30.5x30.5mm M3 and 20x20mm M2 spacing. In height, the frame can accommodate a 23mm stack. The rear of the frame can then accommodate an analog or digital video transmitter.
Key Features
- Diagonal motor pitch: 290mm
- Weight: 200g
- Propeller size: 7"
- Mounting holes for stack: 30.5x30.5mm M3 / 20x20mm M2
- Mounting holes for motors: 16mm M3
- Height for stack: 23mm
- Top plate: 2.5mm
- Shoulder thickness: 6mm
- Camera size: 19mm (Micro)
Package Includes
- 1x Frame
- 1x Set of plastic parts
- 1x Set of screws
