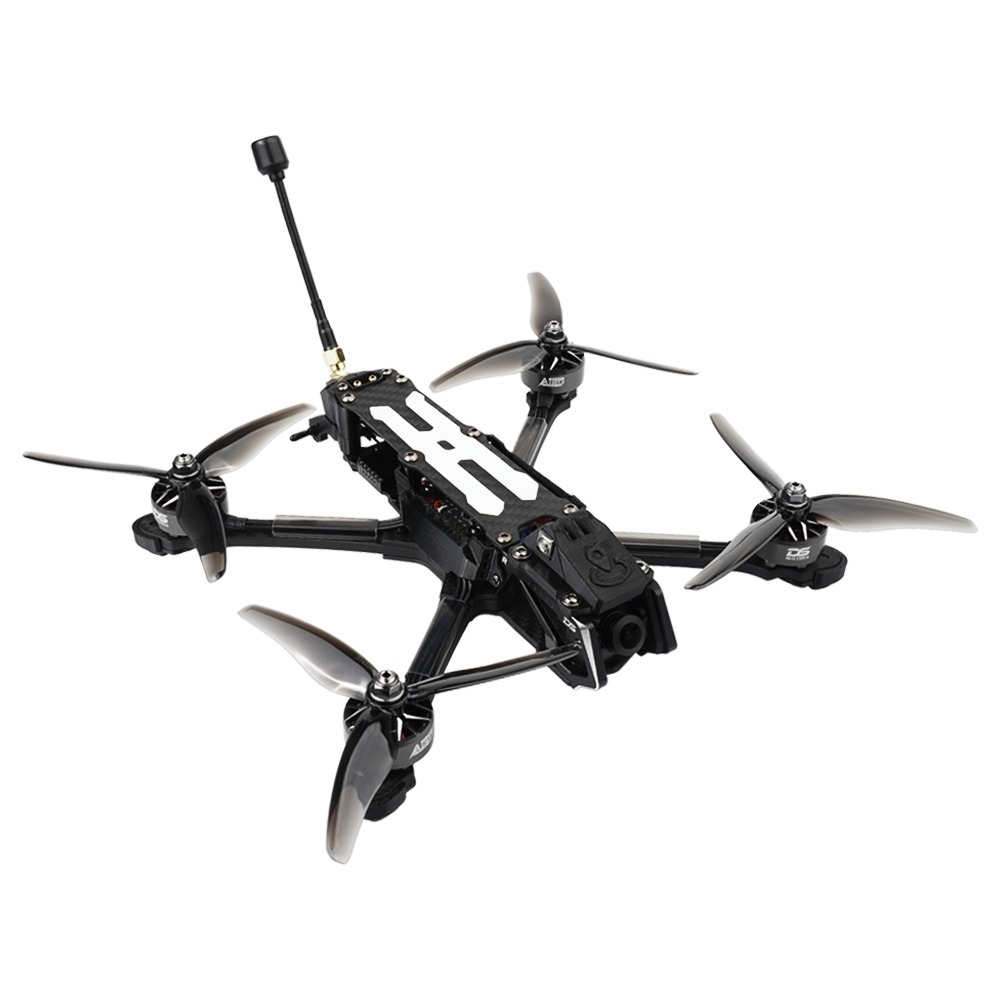

DeepSpace Seeker5 is a 5" freestyle FPV drone designed for outdoor freestyle flying and capturing action footage. The drone is equipped with an analog video transmission system. Thanks to its Deadcat configuration, where the front arms are shifted backwards, the propellers are not visible in the FPV camera view. For mounting an external action camera, the drone features a GoPro holder. The holder also includes space for a GPS module, which provides speed, distance, home direction, and enables an automatic return-to-home function. The electronics in the center are protected by flexible TPU side plates. At the rear, a fixed XT60 connector prevents the battery cables from reaching the propellers. The drone comes with a 2.4GHz ELRS receiver, mounted on the underside in a plastic-protected compartment for easy access.
The flight controller is based on an F722 processor with an ICM42688P gyro, a DPS310 barometer for altitude measurement, and 16MB of blackbox memory. It is paired with 60A ESCs running BlHeli_32 firmware. Power is delivered by DeepSpace Aether 2207.3 1960Kv motors with a 6S battery. Video transmission is provided by a Caddx Ratel 2 camera combined with an analog video transmitter supporting up to 1.6W output power.
Recommended batteries: 6S 1300–1500 mAh.
