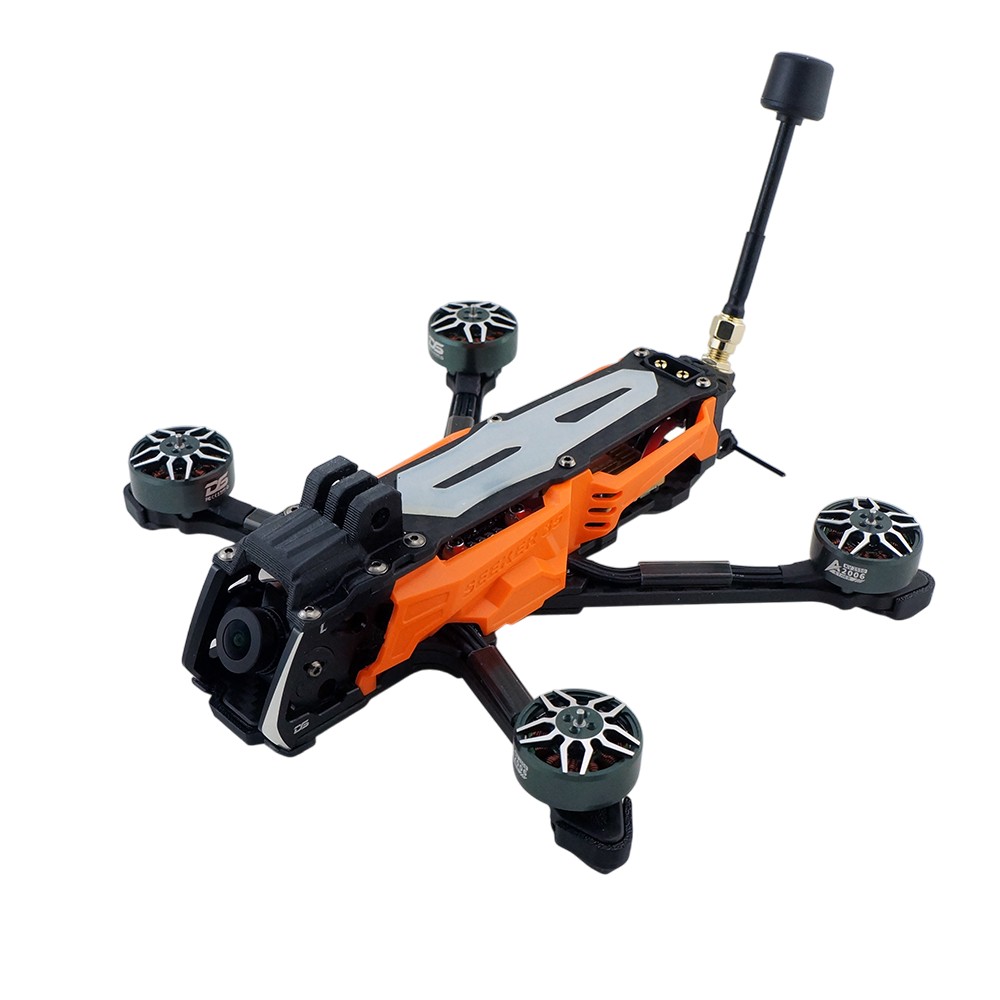

DeepSpace Seeker 35 DC - 6S ELRS with GPS

Seeker 3.5 is a powerful smaller freestyle drone for 3.5" propellers. Seeker is equipped with analog video transmission with a power of up to 1300mW. It is suitable for outdoor flying in fields or larger gardens. The frame is in the shape of a Deadcat, where the camera is placed in front of the arms, so the propeller edges are not visible in the camera image. The drone has a holder for an external action camera and a GPS module that allows for automatic return to the launch point. The image also shows information about speed, altitude, and distance. The FPV camera is secured in aluminum side plates that protect the camera. Sensitive electronics are covered with plastic side plates. The package includes orange side plates and spare black side plates. At the rear, there is a securely mounted XT60 connector that eliminates the possibility of cutting the battery wires by the propellers. The ELRS receiver operating at 2.4 GHz is mounted outside the frame in a plastic casing. This makes it easily accessible while being protected. On the bottom, there is a buzzer for easy finding of the drone in tall grass. Next to the camera, there is an external USB-C connector for easy setup of the flight controller. For high durability, the arms are milled from 4mm thick carbon.

Flight is provided by Aether 2006 2550Kv motors, which in combination with Gemfan 3630 propellers and a 6S battery have more than enough power. The drone uses a Mini size stack. The flight controller uses F722 processor and ICM42688 gyro. It has 16MB memory for blackbox and a barometer for altitude measurement. It is supplemented with 40A 32bit ESCs.

Recommended batteries are 6S with a capacity of 1000–1200 mAh.
