DeepSpace Seeker 3 - 4S ELRS with GPS

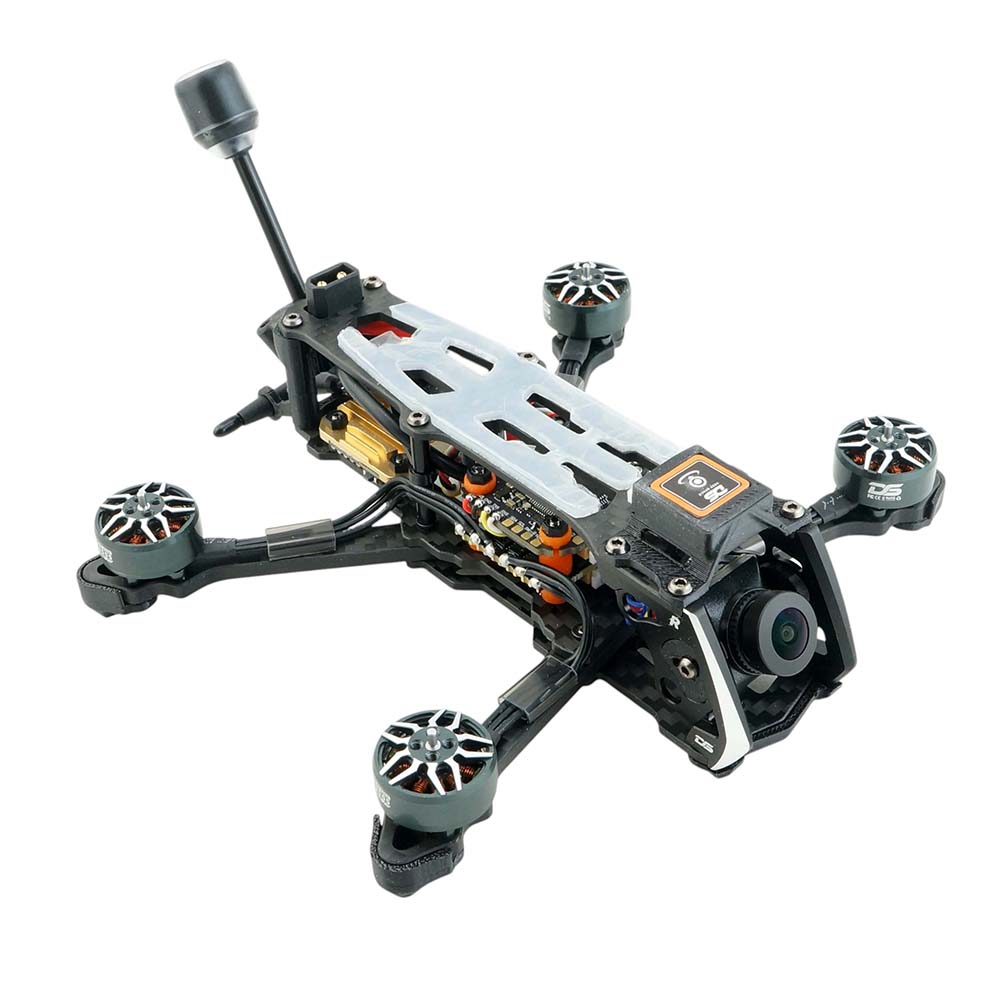

The DeepSpace Seeker 3 is a compact 3" freestyle FPV drone with an analog video transmission system. The Seeker 3 features a deadcat configuration, where the front arms are positioned further back, ensuring that propeller edges are not visible in the camera view. With a light weight of only 155 g (without battery), it stays within the 250 g flight weight limit. The drone is equipped with a GPS module for monitoring speed, distance, and flight direction, and supports a return-to-home function. At the rear, a fixed XT30 connector prevents battery cables from getting caught in the propellers. An integrated ELRS 2.4GHz receiver is also included.

Flight control is provided by a 20x20 mm stack. The flight controller uses an F722 processor with an ICM42688P gyro, a DPS310 barometer, and 16MB blackbox memory. The ESCs support currents up to 40A and run on BlHeli_32 firmware. Propulsion is provided by DeepSpace Aether 1505 4000Kv motors combined with a 4S battery. Video transmission is handled by a PandaRC VTX with up to 1300mW output power paired with a micro-sized FPV camera.

Recommended batteries: 4S with 650–950mAh capacity.
