DeepSpace Roc 4

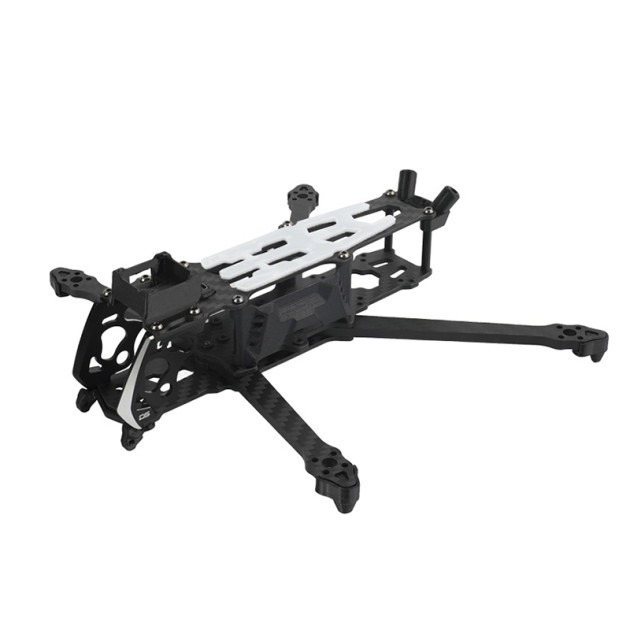

DeepSpaceFPV Roc 4 is a 4" frame suitable for building a smaller freestyle or long-range copter. The frame is designed in a deadcat configuration, where the front arms are shifted back and disturbing propeller edges are not visible in the frame. The frame can be equipped with both analog and digital video transmission systems such as DJI O4 Pro and Walksnail Avatar with a 20mm camera. The camera is mounted in aluminum side plates. Above the camera, there is a 3D printed holder for a GPS of size 18mm. Behind the GPS holder, a USB-C connector is provided for easy setup of the flight controller. The frame also includes plastic side plates that cover the AIO board. The frame can accommodate stacks with mounting holes of 20x20mm and 25x25mm AIO boards. In the rear part, there is space for mounting a video transmitter with mounting holes of 20x20/25.5x25.5mm M2. At the bottom of the frame, there is space for a beeper that makes it easier to find a downed drone. Roc 4 weighs 64 grams including 3D printed parts that are included in the package.
