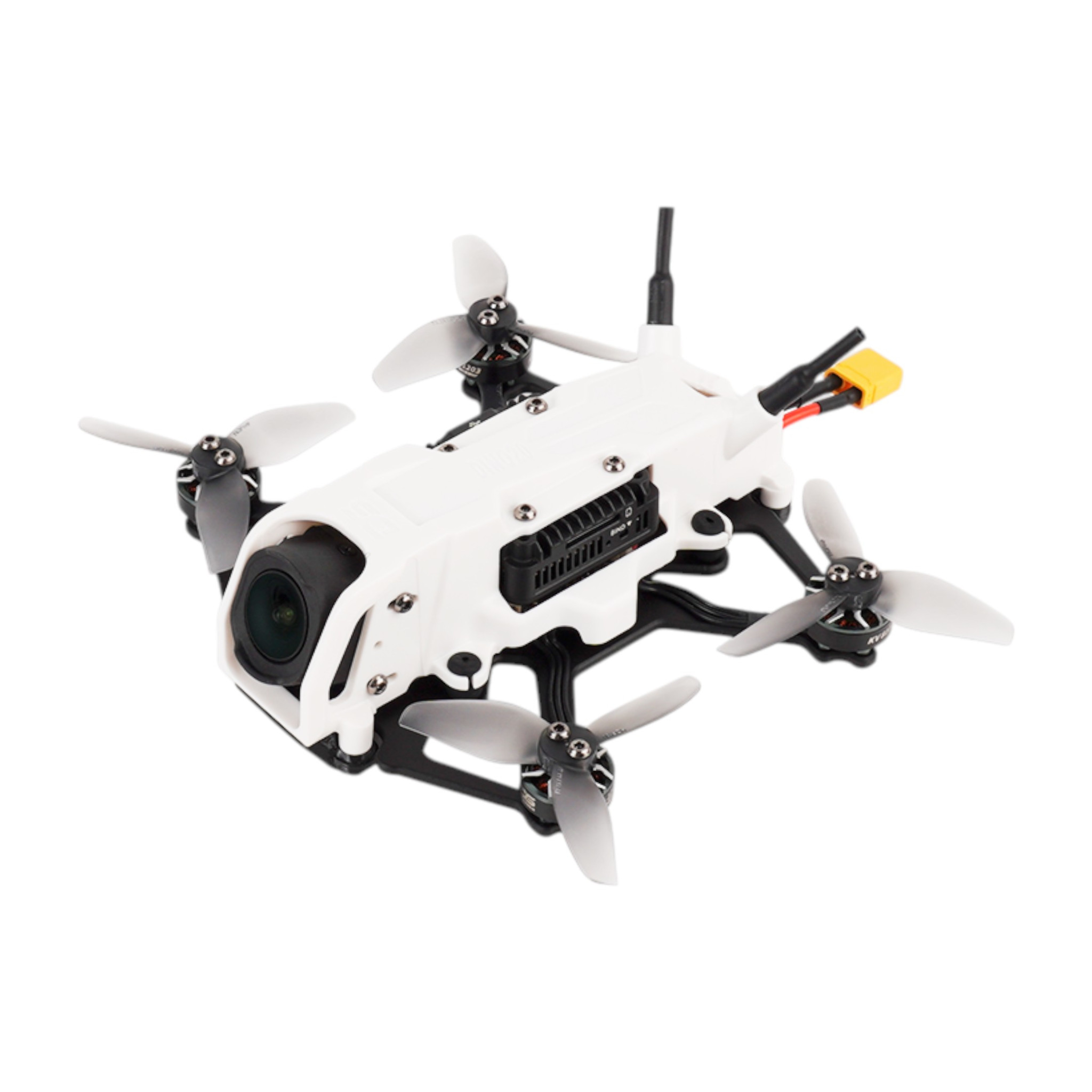

DeepSpace DINO 20 is a small 2" drone with DJI O4 Pro digital video transmission, suitable for outdoor freestyle and indoor flying. Safety during indoor flight is ensured by removable protective plastic prop guards. Thanks to the frame geometry, distracting propeller edges are not visible in the image.
The plastic canopy is attached to the lower carbon plate via four soft mounts, which dampen vibrations and reduce the jello effect in the footage. The modular design simplifies assembly and any service. The canopy with the FPV system can be shared between several Dino 20 drones.
The heart of the drone is an AIO board with an STM32 F405 processor, ICM-42688-P gyro, barometer for altitude measurement, 16 MB memory for Blackbox, and an integrated 2.4GHz ELRS receiver with 100 mW telemetry power. The board also has an integrated buzzer for easy drone location in the field.
Power is provided by 20A ESCs with Bluejay firmware and DS Aether 1203 8000KV motors together with 2.2" propellers.
The recommended battery is a 3S LiPo with a capacity of 550–850 mAh and an XT30 connector.
Key Features
- Motor diagonal distance: 113 mm
- MCU: STM32F405
- Gyro: ICM-42688-P
- Barometer: yes
- Blackbox memory: 16 MB
- Video transmission: DJI O4 Pro Air Unit
- Camera tilt: 0–35°
- Propeller size: up to 2.2"
- Receiver: ELRS 2.4 GHz
- Power supply: 3S LiPo / LiHV
- Motors: DS Aether 1203 8000KV
- ESC: 8bit 20A
- ESC firmware: Bluejay
- Connector: XT30
- Dimensions: 148x120x39 mm (without prop guards)
- Weight: approx. 103.5 g ±5 g (without battery and guard)
Package Includes
- 1x Drone
- 8x Propellers
- 2x LiPo straps
- 1x Set of removable protective guards
- 1x Spare canopy - pink
- 1x Accessory set
