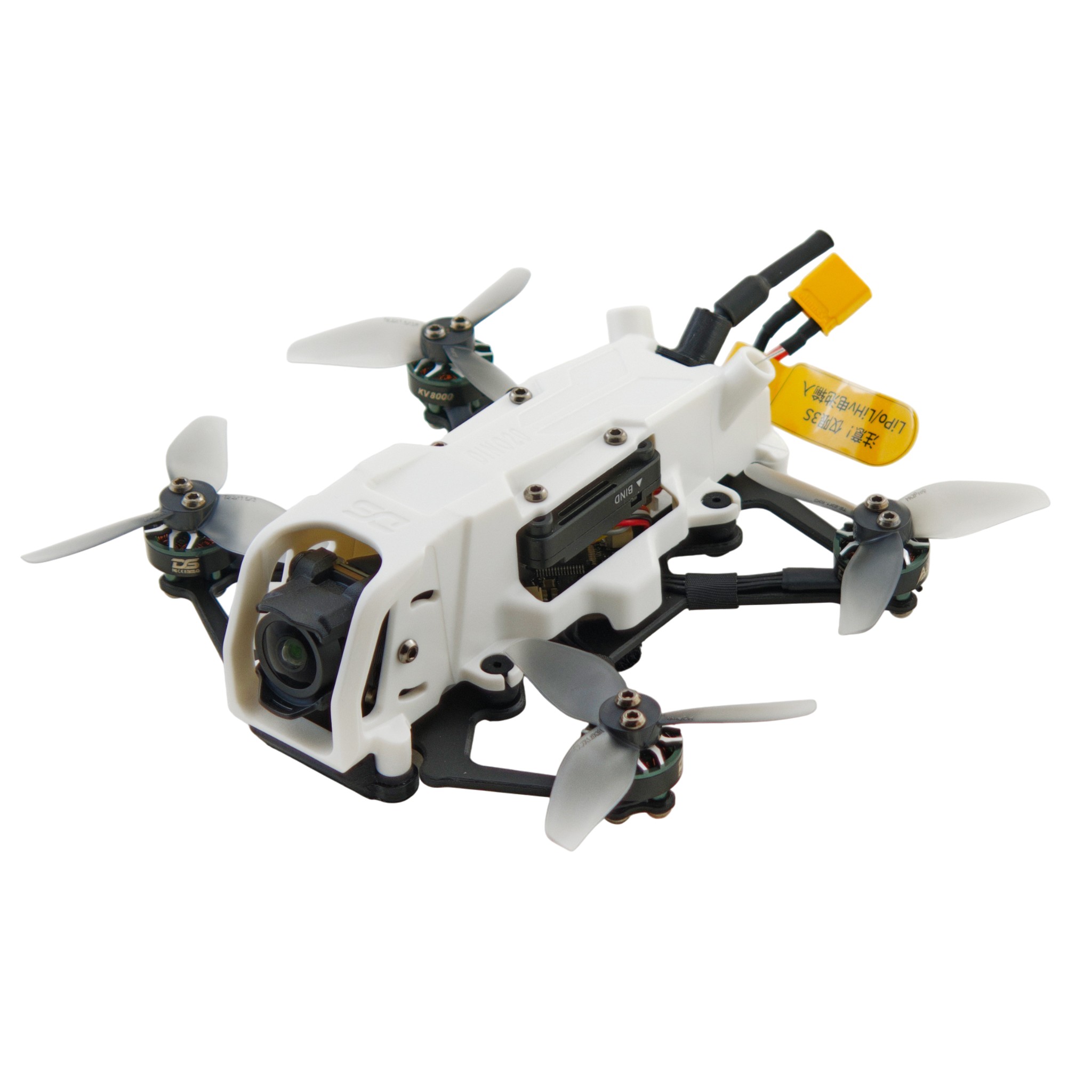

DeepSpace DINO 20 O4 Wide - 3S ELRS

DeepSpace DINO 20 is a small 2" drone with DJI O4 Wide digital video transmission, suitable for outdoor freestyle and indoor flying. Safety during indoor flight is ensured by removable protective plastic ducts. Thanks to the frame geometry, the disruptive edges of the propellers are not visible in the image. The Wide designation in the video transmission name means that the camera has a wider 159° FOV, unlike the standard DJI O4, which has a narrow 117.6° FOV. The video transmitter in this drone is equipped with an aluminum heatsink for better heat dissipation.

The plastic canopy is attached to the bottom carbon plate via four softmounts, which damp vibrations and suppress the jello effect in the footage. The modular design simplifies assembly and any service work. The canopy with the FPV system can be shared between several Dino 20 drones.

The heart of the drone is an AIO board with an STM32 F405 processor, ICM-42688-P gyro, barometer for altitude measurement, 16 MB memory for Blackbox, and an integrated 2.4GHz ELRS receiver with 100 mW telemetry power. The board also has an integrated buzzer for easy location of the drone in the field.

Power is provided by 20A ESCs with Bluejay firmware and DS Aether 1203 8000KV motors together with 2.2" propellers.

The recommended battery is a 3S LiPo with a capacity of 550–850 mAh and an XT30 connector.

Important notice: The DJI O4 camera uses a new generation of gyros that are more sensitive to vibrations. This may affect the proper functioning of RockSteady and Gyroflow stabilization.
