DeepSpace DINO 20 O4

DeepSpace DINO 20 is a 2" frame suitable for building a lightweight freestyle drone with digital video transmission using DJI O4 Pro or DJI O4. The diagonal motor spacing is 113mm, the frame fits propellers up to 2.2", and weighs 32g.

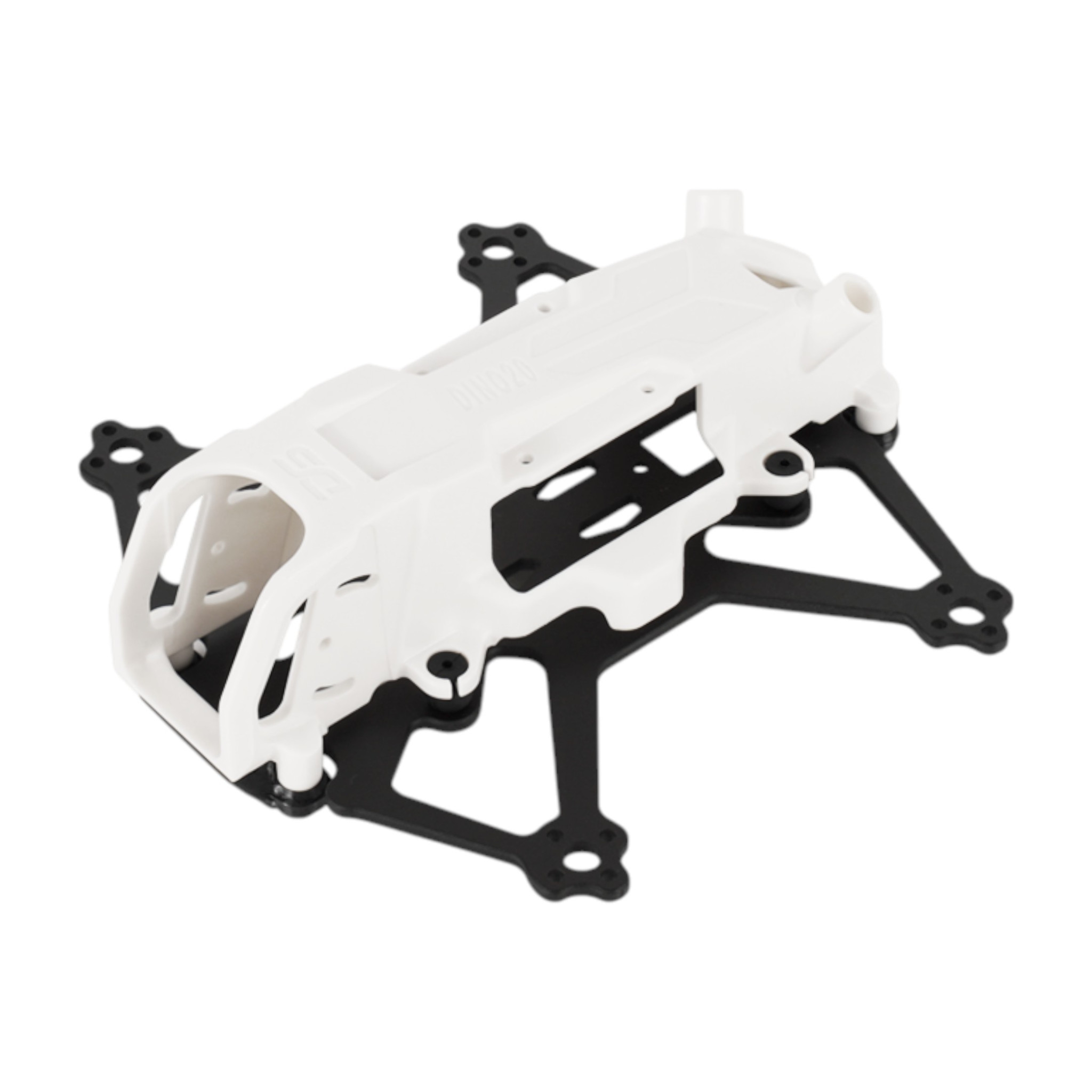

The bottom section is made of a 2mm-thick unibody carbon plate — the arms and center are milled from a single piece, so the frame has no joints that could loosen in a crash. The top section is an injection-molded plastic canopy that carries both the camera and the transmission unit. The two parts are connected by four rubber dampers, which filter vibrations from the motors and keep the camera in a soft mount. The canopy is included in both white and pink versions.

The frame is designed for AIO boards with a 25.5x25.5mm hole pattern. Mounting holes 20x20mm are prepared for the video transmitter, along with a bay measuring 34x34x12mm; the antenna mounts have a diameter of 5mm. The motors are installed using 9mm mounting holes.

The frame can be used in two configurations. In the open configuration it is the lightest and suitable for outdoor freestyle; after installing the protective arc guards under the motors, it is safer for indoor flying and flying near obstacles.
