DeepSpace DS 5.8G 2.5W VTX 25-2500 mW

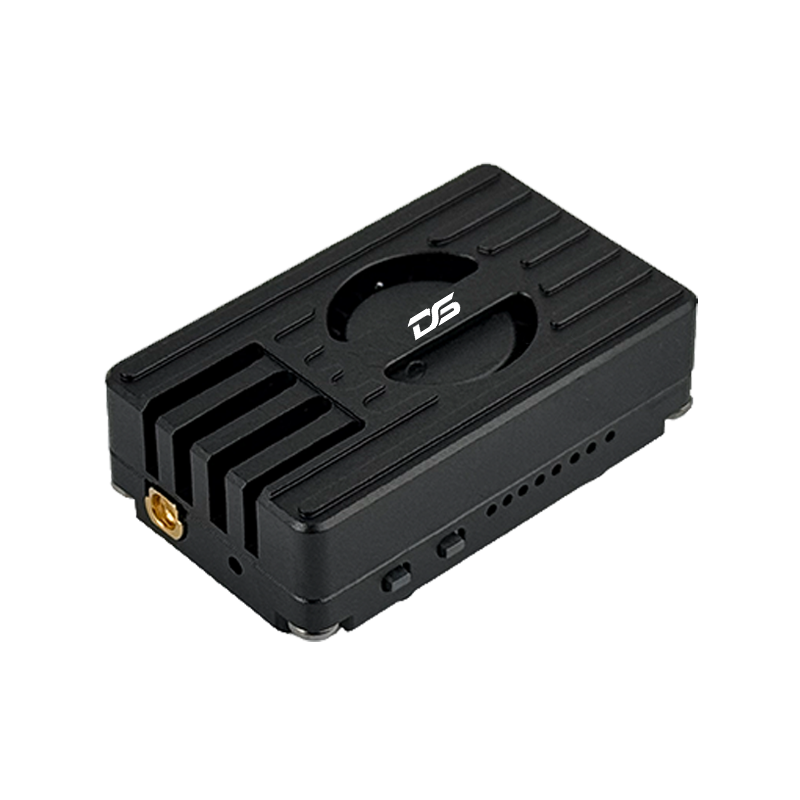

DeepSpaceFPV DS58G25W is a analog video transmitter, mainly suitable for long-range and freestyle drones. The video transmitter is equipped with an aluminum heatsink and a fan that helps dissipate heat.
The video transmitter can transmit with output power up to 2.5W on 72 channels and the channels can be set using buttons or more conveniently via the flight controller using the IRC Tramp protocol. Power input is possible in the range of 7-36V.
For easy mounting in the frame, the DS58G25W has M2 mounting holes with 20x20mm spacing. The video transmitter also includes a 5V output for powering the camera. The video transmitter is equipped with an MMCX connector for antenna connection.
Do not power on the video transmitter without a connected antenna.
Key Features
- Power input: 7-36V (2-8S)
- Video transmitter output power: 25/1000/2000/2500mW
- Protocol: IRC Tramp

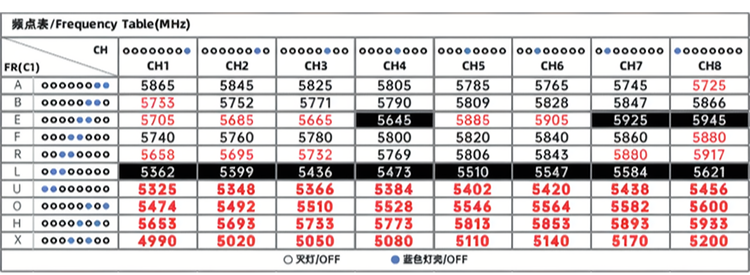

- Number of channels: 72
- Heatsink for heat dissipation
- Mounting holes: 20x20mm
- BEC: 5V
- Size: 41x25x14mm
- Antenna connector: MMCX
- Connector: SH1.0 6pin
- Weight: 30g
Package Includes
- 1x VTX
- 1x MMCX / SMA pigtail
- 1x cable for connection to the flight controller
