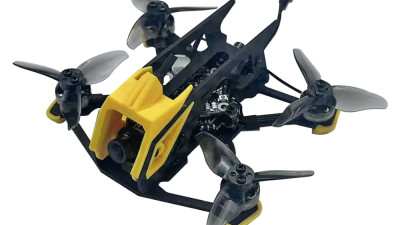

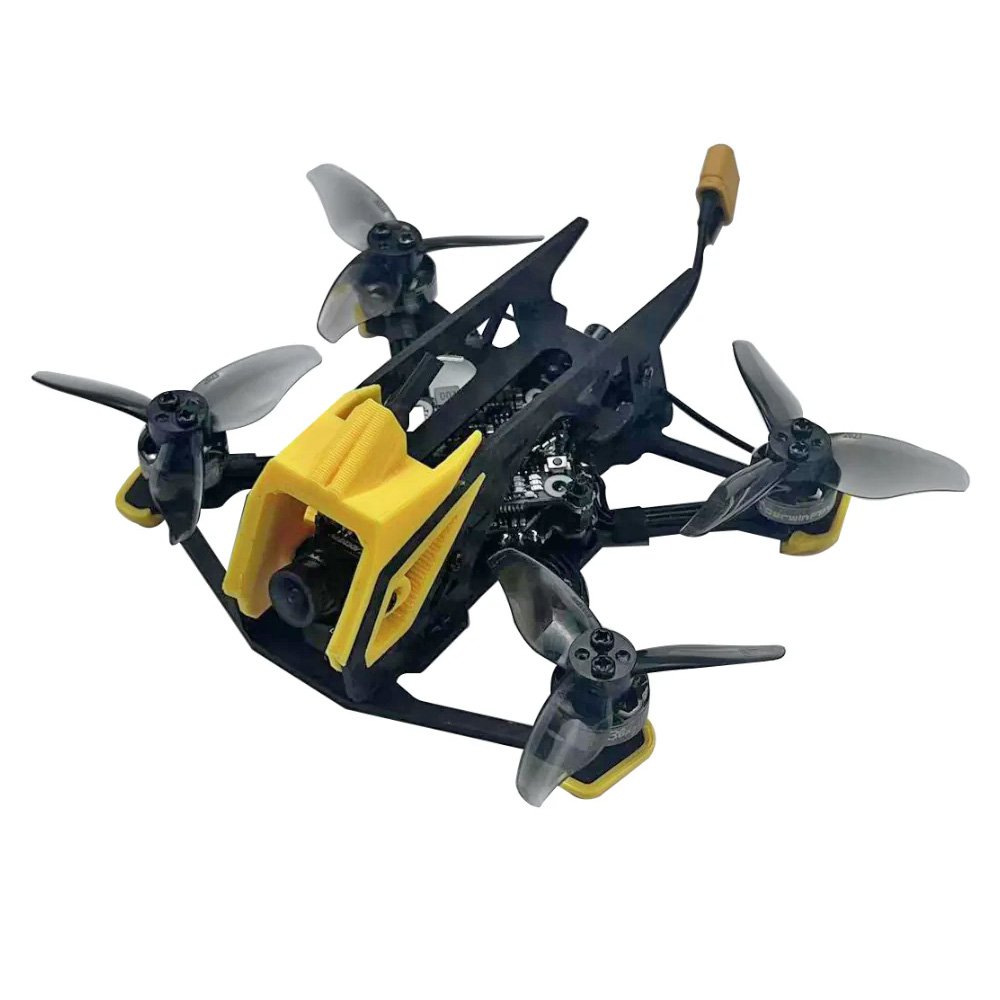

DarwinFPV BabyApe III Mini is a small 2" freestyle drone with analog video transmission. The drone is suitable for flying in the garden, park, or during travel.
The battery is placed on the top of the drone between the carbon plates. This protects it and keeps it securely in place. Batteries up to 16mm wide can be placed between the carbon plates.
The drone uses an AIO board DrawinFPV F411 with 15A Bluejay regulators and an integrated ELRS receiver operating at 2.4GHz. The board uses a gyro MPU6500. Propulsion is provided by Bling 1103 12000Kv motors combined with Gemfan 2023-3 propellers. The video transmission is ensured by Caddx Ant combined with video transmitters of up to 1200mW output.
Recommended batteries are 2S with a capacity of 450-550mAh and an XT30 connector.
Key Features
- AIO: DarwinFPV F411 15A ELRS AIO
- FPV Camera: Caddx Ant
- Video transmitter: DarwinFPV 5.8G 1.2W
- Diagonal motor distance: 97mm
- Motors: Bling 1103 12000Kv
- Propellers: Gemfan 2023-3
- Receiver: SPI integrated
- Configuration: Wide-X
- Arm thickness: 2mm
- Propeller size: 2"
Package Includes
- 1x Drone
