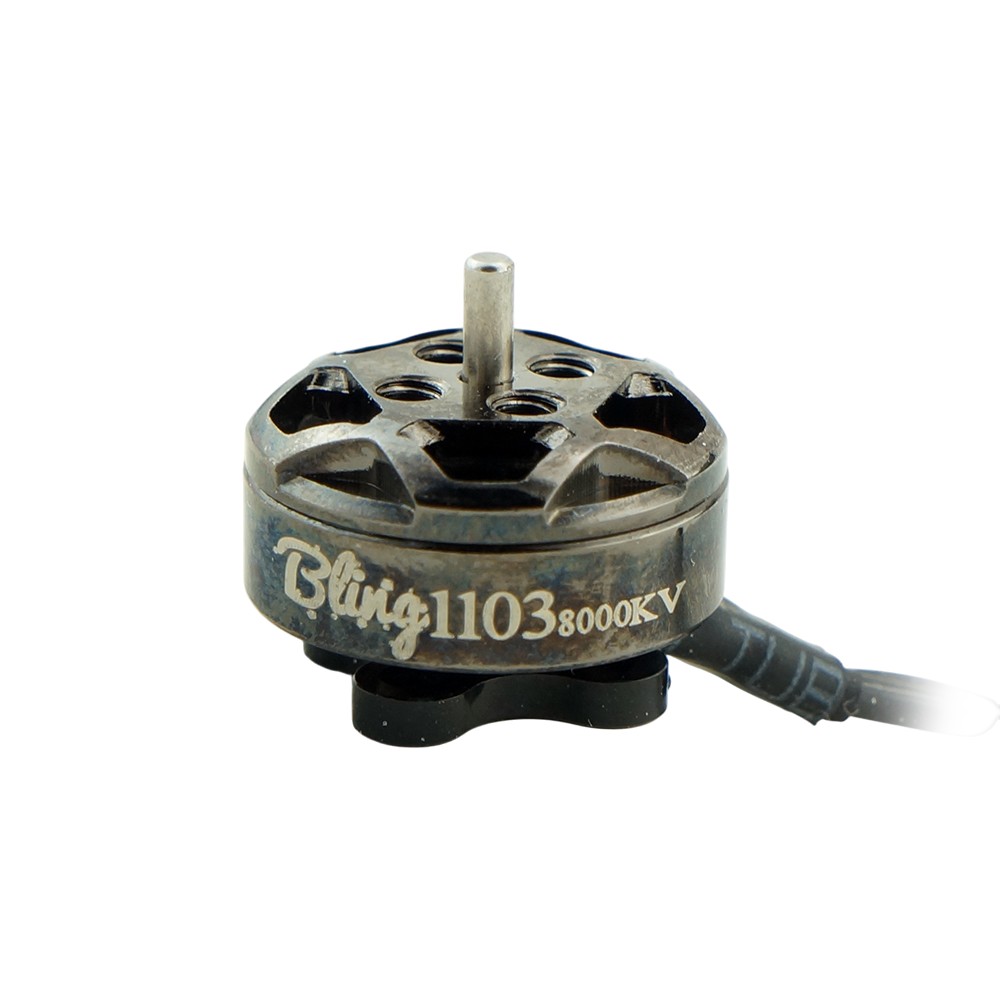

DarwinFPV Bling 1103 is a motor suitable for small 2–2.5″ toothpick drones in combination with a 2-3S Lipo battery. The motor uses strong N52H magnets, high-quality NSK bearings, and copper windings with a thermal resistance of up to 220 °C.
The Bling series features a distinctive glossy finish. The motor has a 1.5mm shaft and mounting holes of size M1.6 on a circle with a diameter of 8.5mm. The cables are finished with a connector for easy attachment to the flight controller.
Key Features
- Size: 1103
- Kv: 8000
- Configuration: 9N12P
- Dimensions: 14.2x9.5mm
- Weight: 4.1g (including cable)
- Cable: 28AWG
- Mounting holes: 8.5mm M1.6
- Magnets: N52
- Bearings: NSK 1.5x4x2
Package Includes
- 1x Motor
- 1x Screw set
