Cubepilot Cubenode ETH

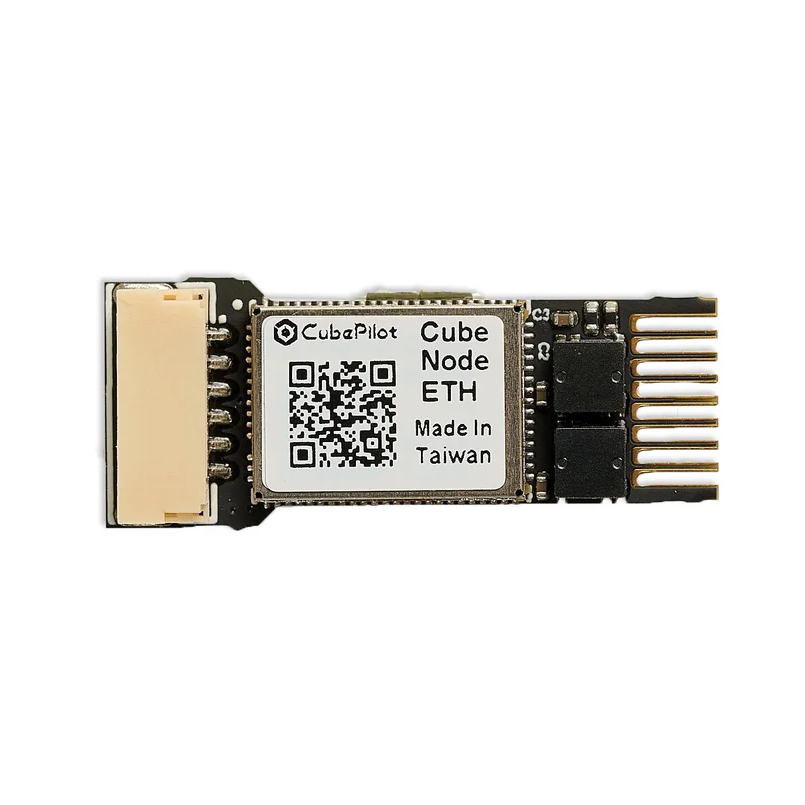

CubeNode ETH is a network module that adds Ethernet connectivity to Cube flight controllers without native network support. The module activates the PPP protocol on one serial port of the flight controller (ideally with flow control) and creates a network connection with a speed of up to 12 Mbit/s.

CubeNode ETH connects to the flight controller via CAN1 and Telem2 ports, and connects to a laptop or ground station using a standard RJ45 cable. Native PPP protocol support is available on the CubeOrange+ and CubeRed flight controllers with firmware ArduPilot 4.5 or higher. Older CubeOrange and other flight controllers can also be used if they are built from a custom ArduPilot build with network support.
