Cubepilot CubeLAN 8-Port Switch
In Stock
€ 66,09

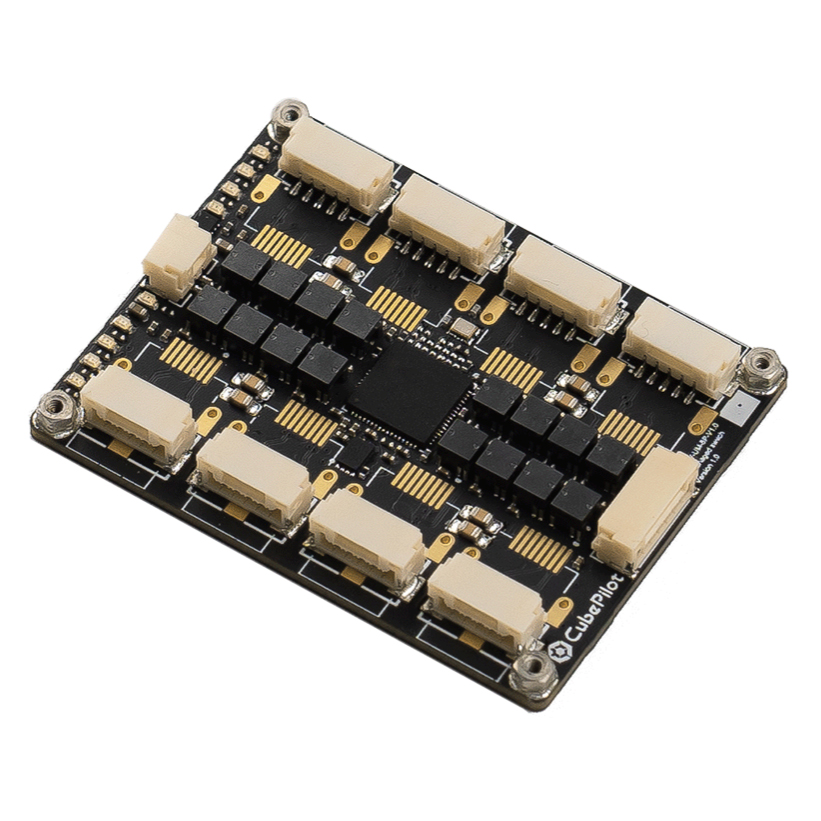

CubeLAN 8 Port Switch is a miniature 8-port Ethernet switch for connecting multiple network devices in CubePilot drone systems. The switch allows simultaneous connection of up to eight devices — for example, a controller, onboard computer, IP camera, or other network peripherals. It supports speeds of 10/100 Mbit/s and the Auto MDI-MDIX function, so the type of cable (straight or crossover) does not matter.
The switch is powered by a voltage of 4–5.5 V via a JST SM02B-GHS connector. Ethernet interfaces are available through JST SM05B-GHS and TE Connectivity 2294415-1 connectors. The board dimensions are 41.15 × 52.58 mm.
Key Features
- Input voltage: 4–5.5 V
- Number of ports: 8
- Speed: 10/100 Mbit/s
- Auto MDI-MDIX: Yes
- Power connector: JST SM02B-GHS
- Ethernet connector: JST SM05B-GHS / TE Connectivity 2294415-1
- Dimensions: 41.15 × 52.58 mm
- Operating temperature: 0–70 °C
User Guides
Package Includes
- 1x CubeLAN 8 Port Switch
