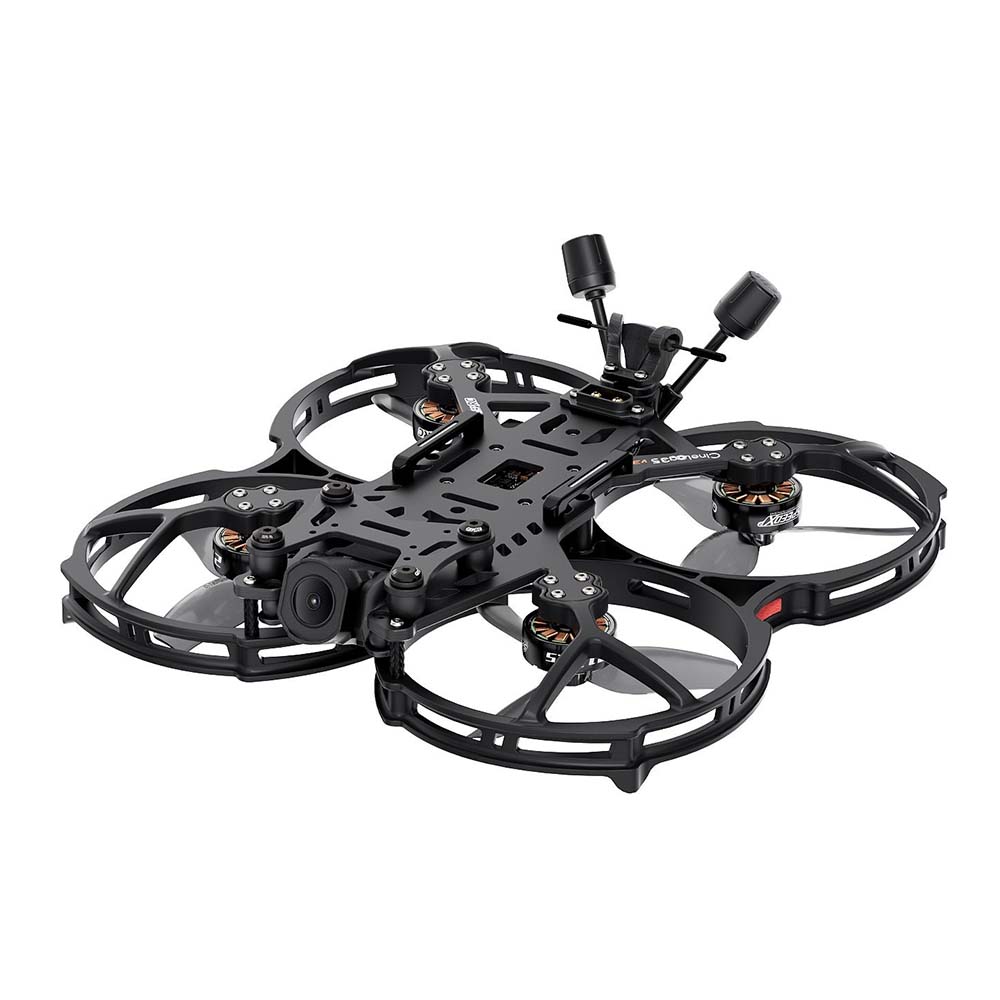

GEPRC Cinelog35 V3 is a larger 3.5" Cinewhoop designed for outdoor action flying. The latest version is equipped with DJI O4 Pro digital video transmission, which enables video recording in up to 4K at 120 fps. The frame design provides easy access to the DJI O4 unit, especially the USB-C connector and memory card slot.
The camera is mounted using an anti-vibration system, which effectively dampens vibrations and ensures a stable image even during dynamic maneuvers. Above the FPV camera is a GoPro-style action camera mount, also attached on rubber soft mounts for vibration damping.
The drone is equipped with a GPS module, which enables return-to-home and displays distance and speed data in the image. Control is handled by the GEP-F722-45A AIO V2 flight controller with F722 processor, ICM42688 gyro and 45A BlHeli_S ESCs. Power is provided by SPEEDX2 2105.5 2650KV motors with HQProp D-T90MM propellers, which in combination with a 6S battery deliver high performance and smooth response. GEPRC Cinelog35 V3 is equipped with an ELRS receiver on the 2.4GHz frequency.
The frame consists of a 3.5mm carbon plate with a diagonal motor distance of 142 mm, ensuring high strength while maintaining low weight. The XT60 connector for battery connection is firmly mounted in the frame, eliminating the risk of cables getting caught in the propellers.
Important note: The DJI O4 camera uses a new generation of gyros that are more sensitive to vibrations. This may affect the proper functionality of RockSteady and Gyroflow stabilization.
Key Features
- Diagonal motor distance: 142mm
- Carbon plate thickness: 3.5mm
- Flight controller: GEP-F722 45A AIO V2
- Gyro: ICM42688-P
- Blackbox memory: 16MB
- ESC: 45A BlHeli_S
- Motors: SpeedX2 2105.5 2650Kv
- Video transmission: DJI O4 Pro
- GPS: GEP-M10
- RC receiver: GEPRC ELRS PA100 2.4GHz
- Weight: approx. 280g
Package Includes
- 1x Drone with GPS
- 2x Lipo strap
- 1x USB cable
- 1x Propeller set
- 2x Battery pad
- 1x Hex key set
- 1x Keychain
- 1x GoPro mount
