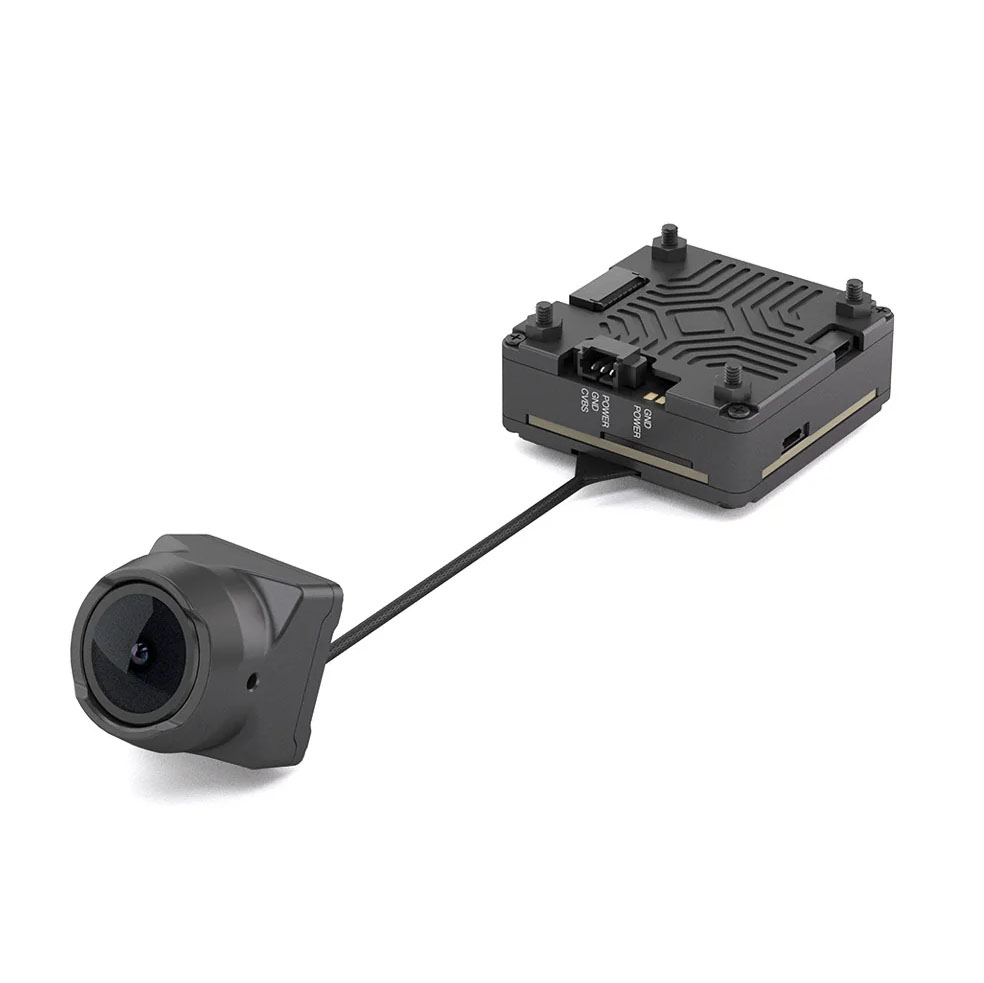

Caddx Farsight is an analog camera offering up to 8x digital zoom. The system includes the main camera and an "AI Box" that helps enhance image quality. It uses a large 1/2" sensor and a 2.2 mm lens. The camera's FOV is 122.5°. The horizontal resolution of the analog output is 1500TVL with a 4:3 aspect ratio. Power input is supported in the range of 9–24 V. The camera's zoom can be controlled from the flight controller via PWM signal.
Key Features
- Power supply: 9-24V
- Sensor: 1/2"
- Horizontal resolution: 1500TVL
- FOV: 122.5°(H) x 92.2°(V) x 155°(D)
- Lens: F1.0/2.2mm
- Standard: CVBS
- Aspect ratio: 4:3
- Zoom: 1-8x
- Camera size: 19x19x19.5mm
- AI Box size: 33.5x33.5x12.35mm
User Guides
Package Includes
- 1x Camera
- 1x Cable Set
- 1x Screw Set
