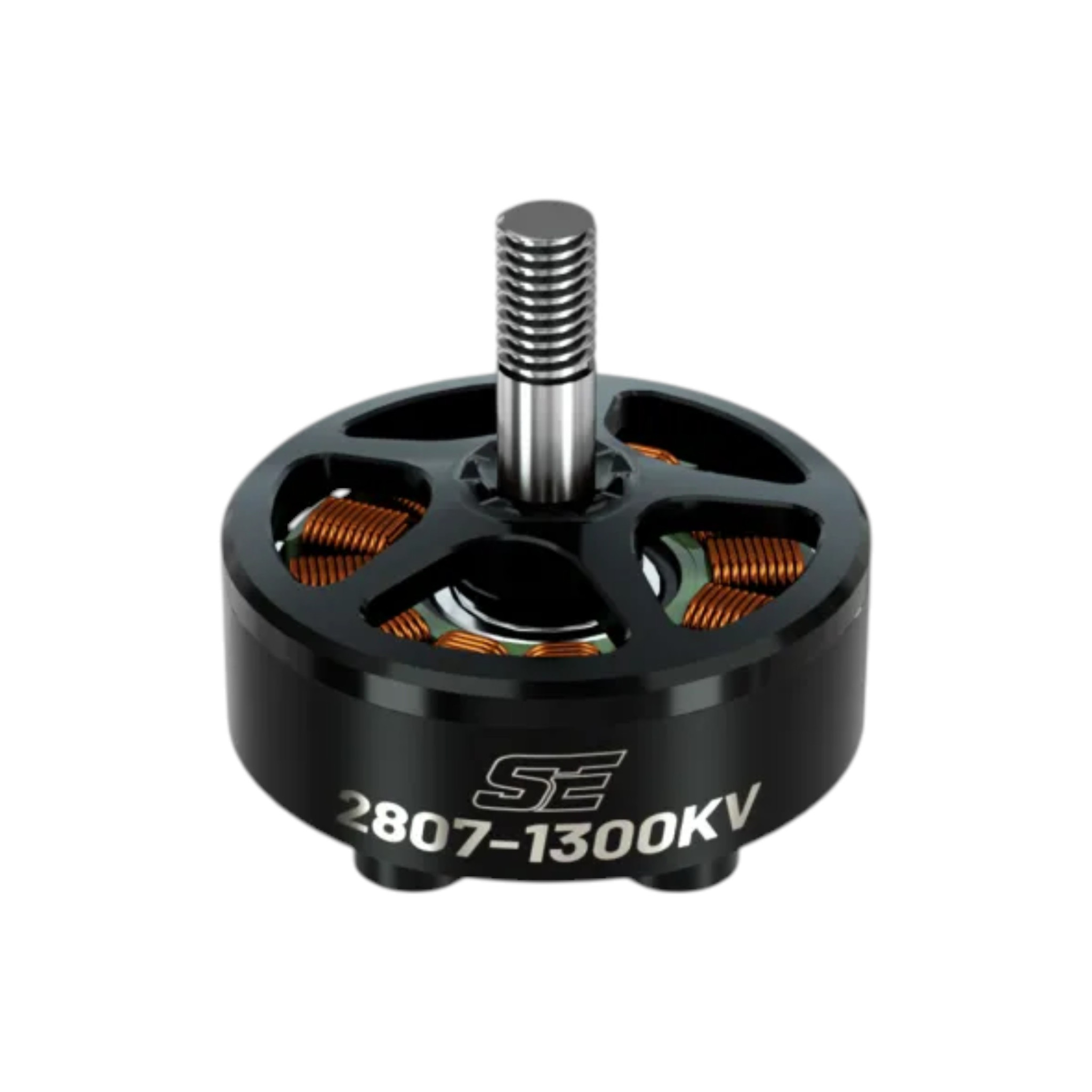

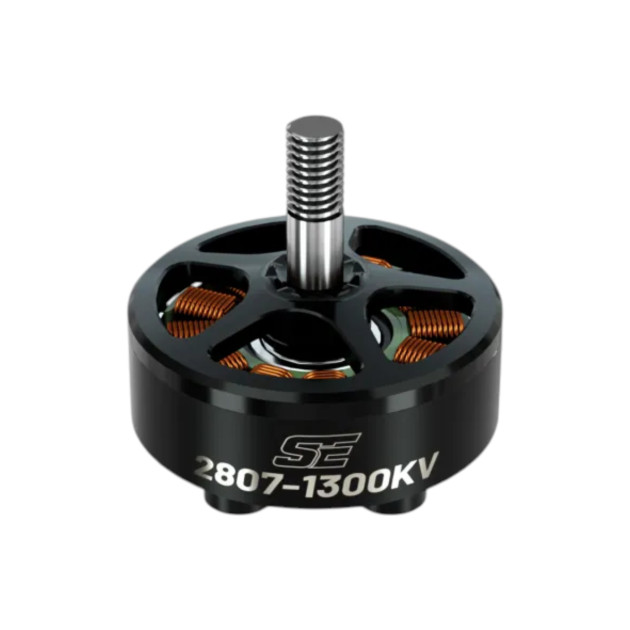

BrotherHobby SE 2807 1300kv

BrotherHobby SE 2807 1300Kv is a powerful motor suitable for 7" propellers and 6S LiPo batteries. It is particularly suitable for 7" long-range drones.

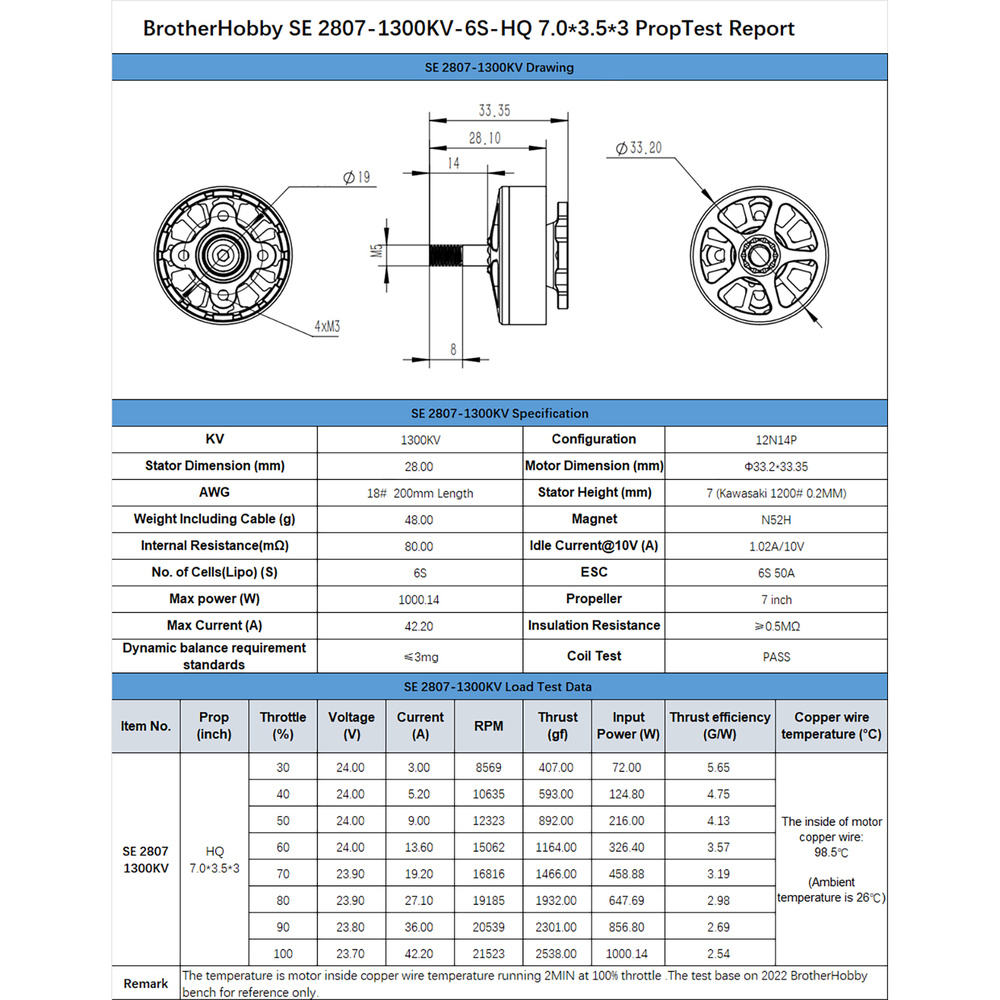

The 28x7mm stator with a 12N14P configuration is made of 0.2mm Kawasaki laminations, which reduce eddy current losses. According to the manufacturer's measurements, with a HQ 7x3.5x3 propeller at 23.7V, the motor delivers up to 2.54kg of thrust at 42.2A and 1000W of power. At half throttle, it delivers 892g at 9A.

Both the bell and base are made of 7075 aluminum alloy, the rotor uses curved N52H magnets, and the heat-treated SUS420 steel shaft with an M5 thread runs on Japanese NMB bearings. The motor mounts to the frame using M3 19x19mm mounting holes. With a diameter of 33.2mm, it weighs 48 grams with 20cm cables. The manufacturer recommends ESCs rated for 6S and 50A.
