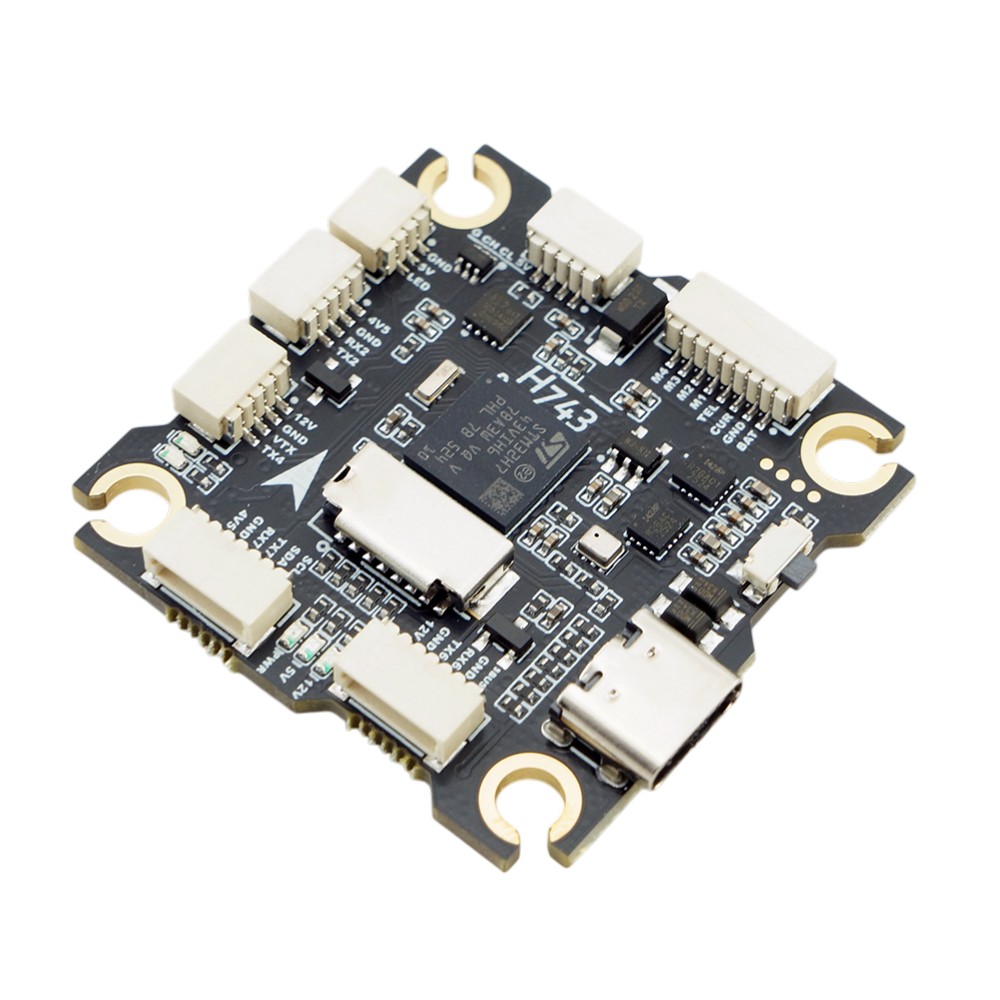

BrotherHobby Returner H743 is a powerful flight controller suitable for freestyle and long-range drones powered by 3–8S LiPo batteries using Betaflight or ArduPilot firmware.

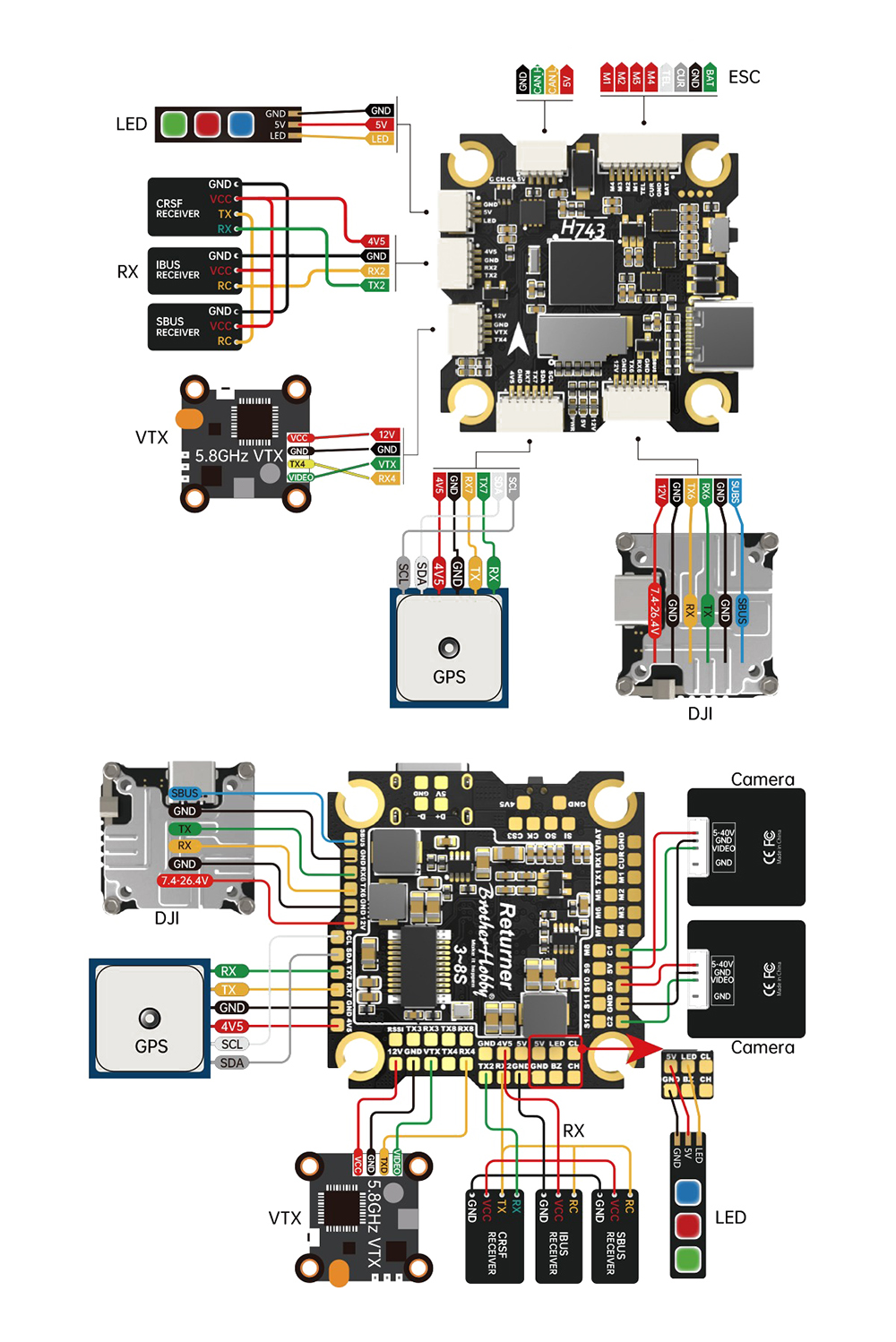

The flight controller uses the H743 processor in combination with two IMU units ICM-42688. It also features a barometer for altitude measurement, an OSD chip for analog video, a slot for a microSD card, and 5V and 12V BECs. The board has 12 PWM outputs for connecting motors or servos. There are also 7 UARTs, I2C bus, and CAN bus for connecting additional peripherals. The board allows connection of two analog cameras, which can be switched between. For setup, the board is equipped with a USB-C connector. There are also pads for connecting an external USB connector. For easy wiring, the board is equipped with connectors. For fans of soldering, there are pads on the bottom side of the board.
Key Features
- Input voltage: 3-8S
- BEC: 5V@2A, 12V@2A
- MCU: STM32H743VIH6
- Gyro: 2x ICM42688
- Barometer: SPL06-001
- OSD: Yes
- Blackbox: SD card
- Number of UARTs: 7
- Number of PWM outputs: 12
- I2C: Yes
- CAN: Yes
- Dual camera input: Yes
- Mounting holes: 30.5x30.5mm
- Size: 38.5x38.5mm
- Weight: 9g
Package Includes
- 1x Flight controller
- 1x Set of cables
- 1x Set of softmounts
