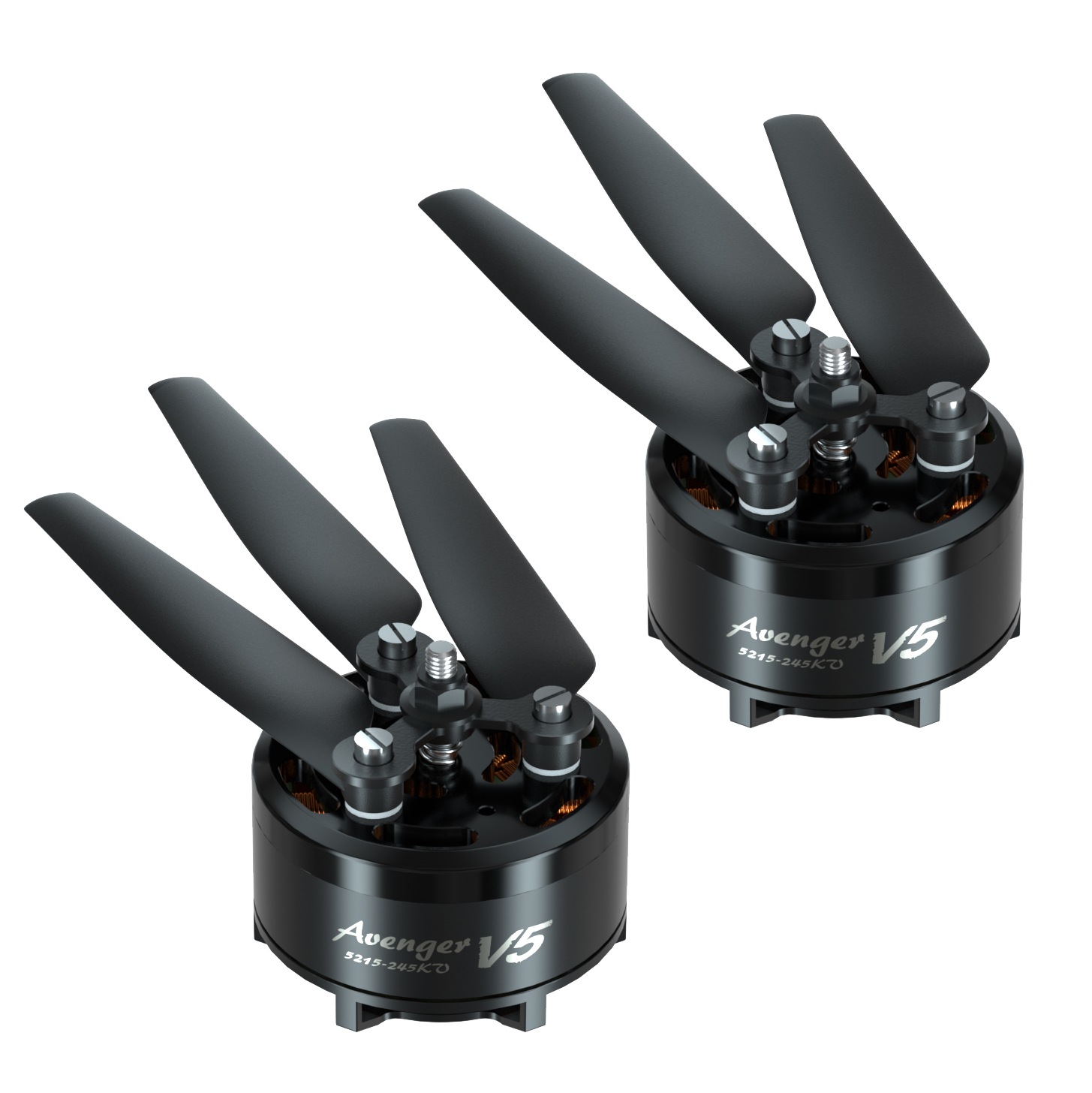

BrotherHobby Avenger 5215 V5 415Kv is a powerful motor suitable for large long-range and heavy-lift drones. The motor is supplied together with a 16" 3-blade folding propeller, which mounts directly onto the drone bell. The motor is designed for use with an 8S Lipo battery, with a maximum thrust of approx. 8.6 kg. For lightweight drones, it can be operated with a 6S battery. The motor should be paired with at least 80A ESCs.
The motor is made of 7075 aluminum alloy with hardened anodizing, uses a heat-treated steel shaft SUS420, rounded N52H magnets and precision 16x8x5 mm bearings. The motor has 90 cm 16AWG cables and weighs approx. 340 grams. The motor mounting holes are M4 on a circle with 25mm and 30mm diameter.
The motors are supplied as a set of 2 motors with propeller in CW and CCW versions.
Key Features
- Size: 5215
- KV: 415
- Recommended battery: 8S
- Recommended ESC: 8S 80A
- Configuration: 12N14P
- Dimensions: 59.8 x 57.9 mm
- Shaft: 5 mm SUS420 (M5 thread)
- Bearings: 16x8x5 mm
- Bell and base material: 7075 Aluminum
- Magnets: N52H Arc
- Mounting holes: M4 25/30 mm
- Cable: 16AWG 90 cm
- Weight: approx. 340g with cable
Package Includes
- 2x Motor
- 2x Set of 3-blade folding propellers
- 2x Propeller adapter (propeller connector)
- 2x Flange nut
- 2x Spring
- Spacers
- Set of screws
