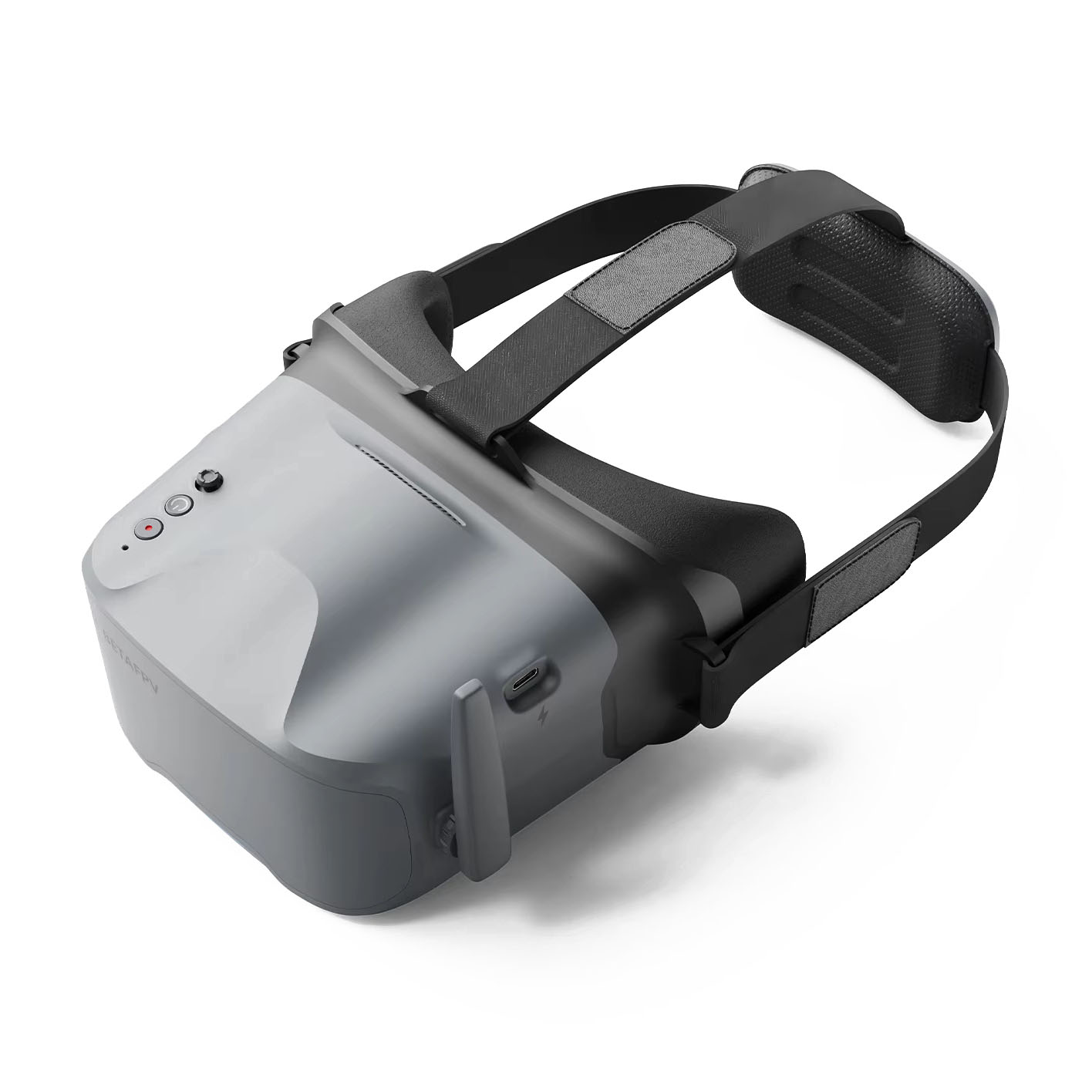

BetaFPV VR04 are FPV goggles in a "box" design suitable for beginner pilots. The goggles are equipped with an LCD display with a resolution of 800×480 pixels, which is sufficient for displaying analog video transmission. The goggles include a DVR module that allows recording incoming video onto a microSD card of up to 64GB in size.
The integrated receiver in the 5.8GHz band supports 48 channels and is compatible with almost all analog 5.8GHz video transmitters. Signal reception is ensured by an external antenna, which is connected via an RP-SMA connector. The package includes a linear antenna that can be replaced with another if needed.
The goggles have a built-in 2000mAh battery, so there is no need to deal with external power supply and cables. The battery is charged through a USB-C connector. However, they also feature a standard DC 5.5/2.1mm connector for powering from an external 2-6S LiPo battery if needed.
Key Features
- Display: LCD 800 × 480px
- Video format: NTSC / PAL
- Frequency band: 5.8GHz
- Number of channels: 48CH
- Antenna connector: RP-SMA
- Video recording: yes (DVR)
- Recording resolution: 480p
- Recording format: AVI
- Card slot: MicroSD (not included)
- Supported cards: FAT32, max. 64 GB (recommended Class 10)
- Maximum recording length: 10 minutes per file
- Power: built-in battery 3.7 V / 2000 mAh
- Runtime: approx. 2 hours (normal mode) / approx. 1 h 10 min (recording)
- Charging: USB-C
- Max. charging current: 1 A
Package Includes
- 1× VR04 FPV analog goggles
- 1× Adjustable strap
