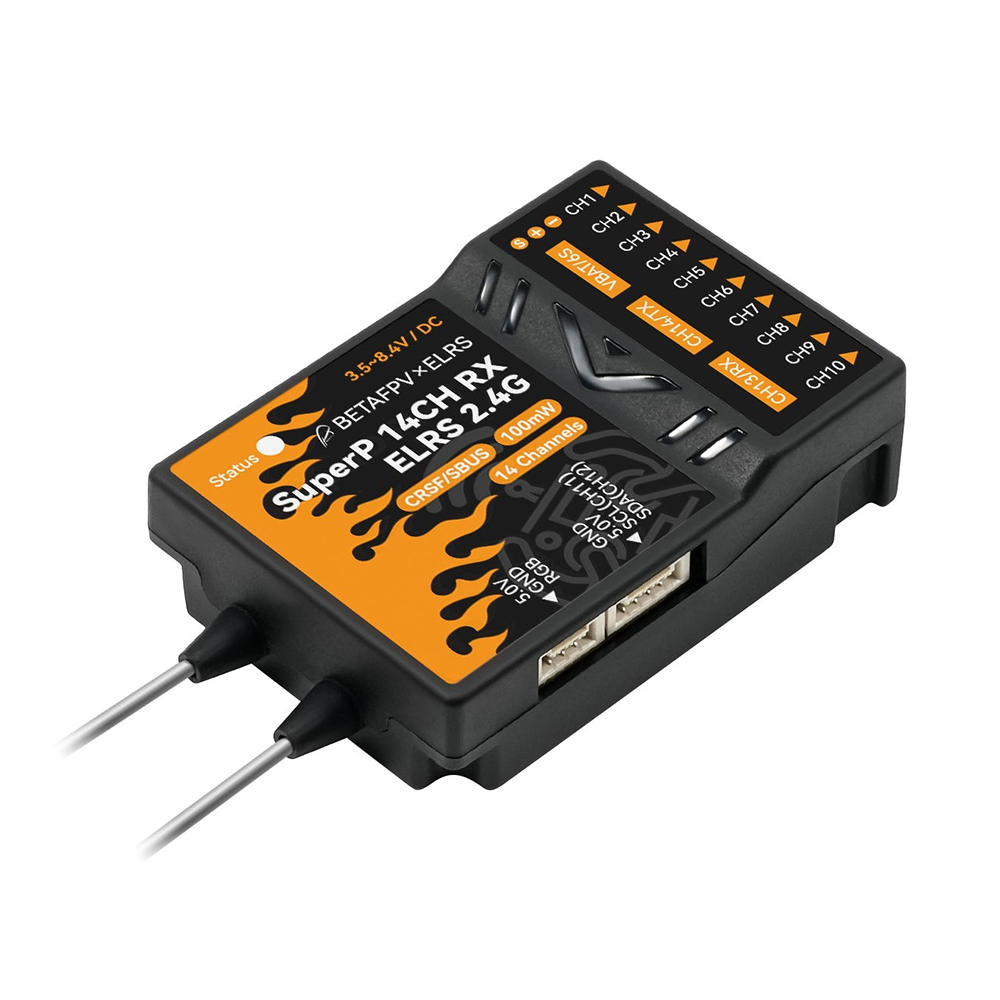

BETAFPV SuperP 14CH Diversity is an ELRS receiver operating in the 2.4 GHz band. With 14 PWM channels, it is primarily suitable for RC aircraft models without a flight controller. The receiver supports full diversity and Gemini mode. It is equipped with two independent RF modules that ensure reliable transmission. The USB-C connector allows for firmware updates not only via Wi-Fi but also using a cable.
SuperP 14CH allows for power input in the range of 3.5–8.4 V, enabling direct connection of 1–2S LiPo battery. The telemetry power is up to 100 mW. The receiver features an I2C interface, to which external sensors such as a barometer or current sensor can be connected. It can also connect an RGB LED strip that indicates the receiver's status. The receiver includes an integrated voltage sensor that measures the voltage of the drive battery in the range of 5–25.2 V.
Key Features
- Input voltage: 3.5–8.4V
- MCU: ESP32 Pico D4 + 2× SX1280 / SX1281 + 2× AT2401C
- Frequency: 2.4GHz ISM
- Number of channels: 14 PWM
- Output protocol: PWM / CRSF / SBUS
- Telemetry power: 100mW (20dBm)
- Voltage sensor: 1–6S
- Current draw: 180mA @ 5V
- Ant connector: IPEX1
- Antennas: 150mm monopole
- Interface: USB-C for flashing, I2C port for external sensors (e.g. barometer SPL06), 3-pin port for RGB LED strip
- TCXO crystal: Yes
- I2C: Yes
- Dimensions: 46.9×32.7×14.6 mm
- Weight: 15.5 g
User Guides
Package Includes
- 1× SuperP 14CH Diversity Receiver (2.4GHz)
- 2× 150mm antennas
- 1× GH2.0 3-pin cable
- 1× GH2.0 4-pin cable
- 1× Y power cable for servo
