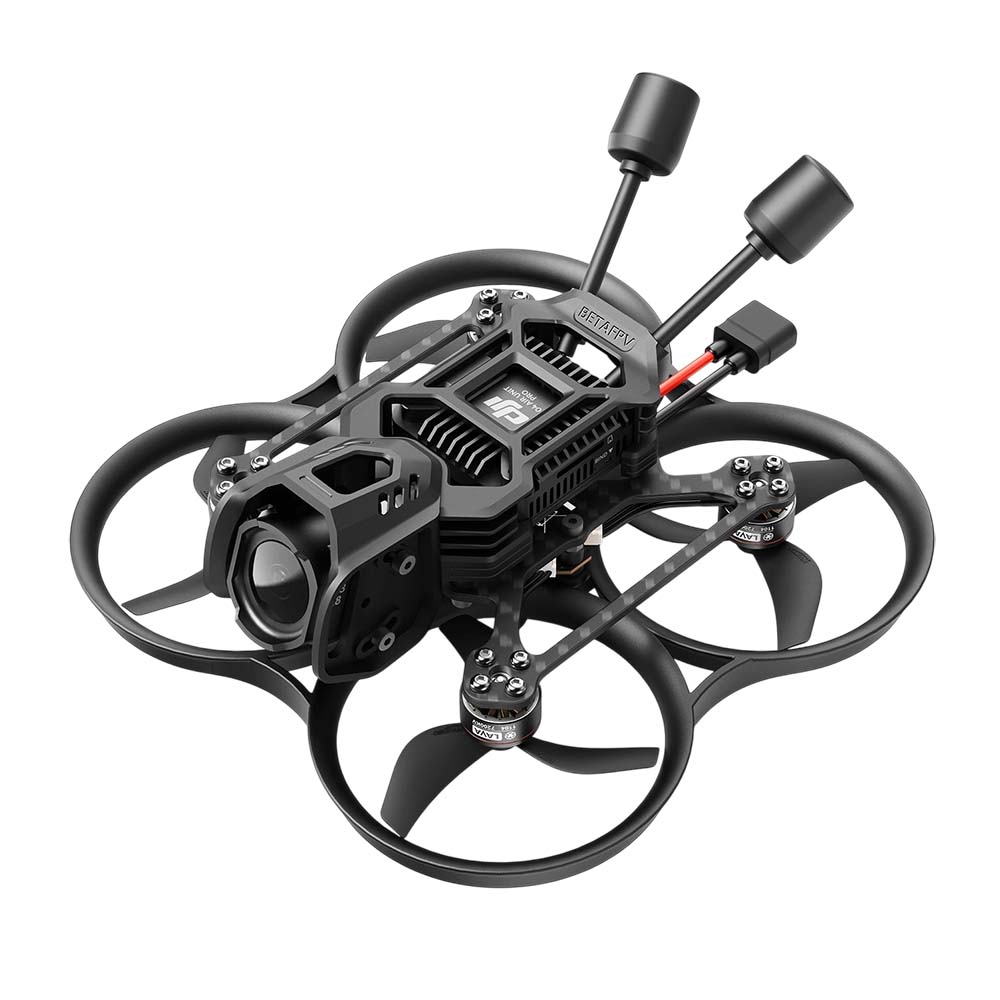

BetaFPV Pavo20 Pro O4 Pro - 3S ELRS

Pavo20 Pro is a small 2.2" Cinewhoop equipped with top-notch DJI O4 Pro digital video transmission capable of recording up to 4K resolution at 120 fps. The drone is primarily designed for indoor filming or small outdoor spaces, where it excels with stable imagery and precise control. Thanks to its low flight weight and enclosed propellers, flying the drone is relatively safe. The drone has an integrated ELRS receiver on a frequency of 2.4GHz.

The foundation of the drone is the AIO board BETAFPV F4 2-3S 20A AIO FC V1 with a F405 processor, ICM42688P gyroscope, and integrated 20A ESCs. The unit also includes a 9V/2A BEC and 16MB memory for Blackbox. The drone utilizes LAVA 1104 7200KV motors and Gemfan 2218 3-Blade propellers with a 1.5 mm shaft in combination with a 3S battery. The propeller guards and the DJI O4 Pro mount with camera are made from durable nylon PA12 plastic.

The modular frame allows for easy replacement of the mount for different transmission units. The replacement occurs without the need for frame modifications. The camera has an adjustable angle and the mount is equipped with rubber softmounts that dampen vibrations.

Thanks to its size, low weight, and DJI O4 digital video transmission, the Pavo20 Pro is suitable for detailed indoor flights, shots from small spaces, and training for precise control of FPV drones.

Suitable batteries are 3S with a capacity of 450–650mAh and an XT30 connector.
