BetaFPV Pavo Pico II O4 - 2S ELRS

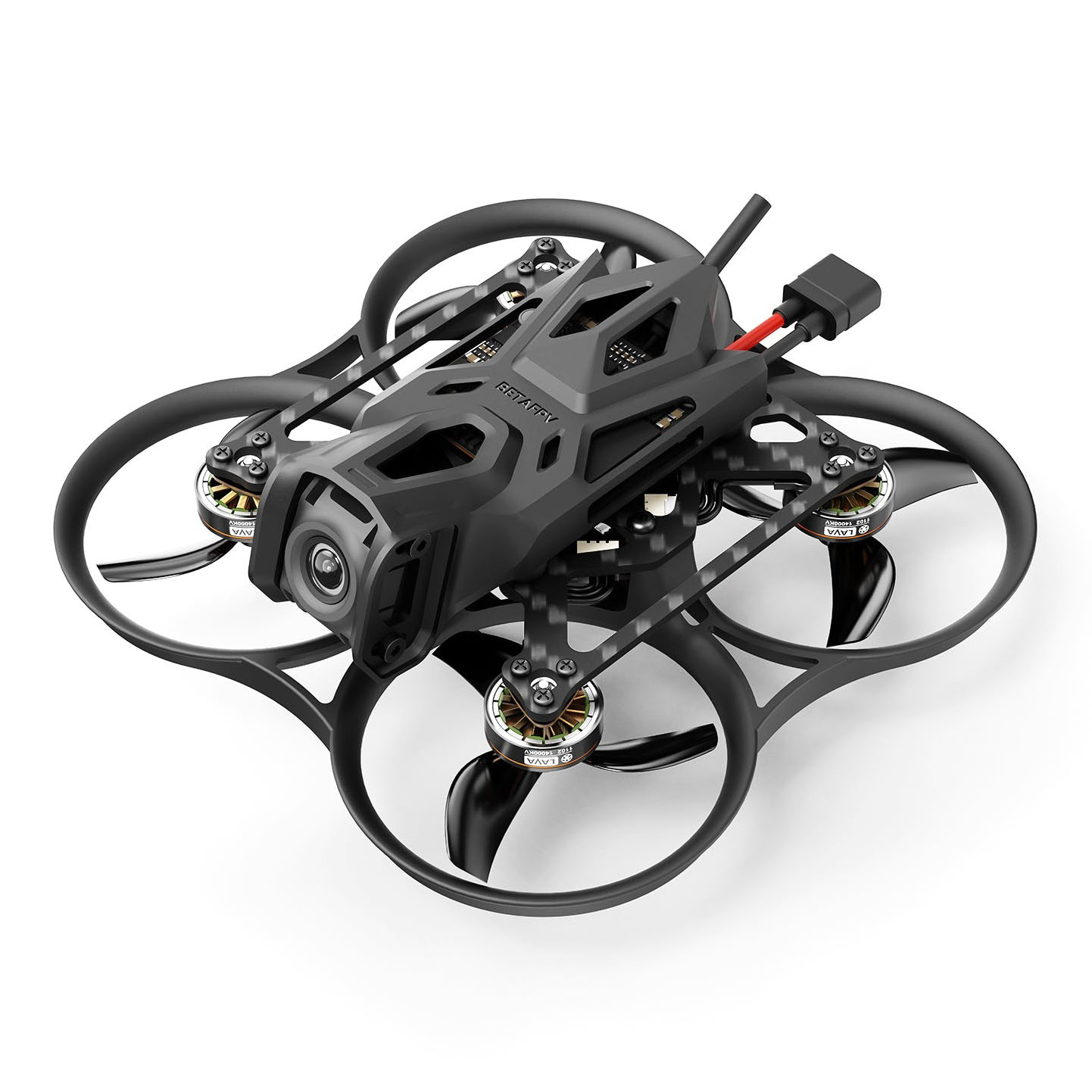

Pavo Pico II is a small cinewhoop for 45mm propellers (1.77") with digital image transmission DJI O4. The drone is primarily suitable for capturing action shots indoors and outdoors. Thanks to its low weight and covered propellers, flying with it is relatively safe. The base is a Pavo Pico II frame with a diagonal spacing of 80 mm. The frame is made of a carbon plate, which is connected to the plastic propeller guards with four screws. The DJI O4 camera and unit are mounted via rubber softmounts, which minimize vibration transfer to the camera.

The propulsion is provided by LAVA 1102 14000KV motors in combination with GF 45mm tri-blade propellers. Flight control is handled by the BetaFPV F4 AIO board. This integrates a flight controller with an F405 processor, ICM42688 gyro, 16MB memory for blackbox and barometer for altitude measurement, as well as integrated Bluejay ESCs with a maximum current of up to 20 A. The board also features an integrated ELRS receiver on the frequency of 2.4 GHz.

Recommended batteries are 2S with a capacity of 450–550 mAh.
