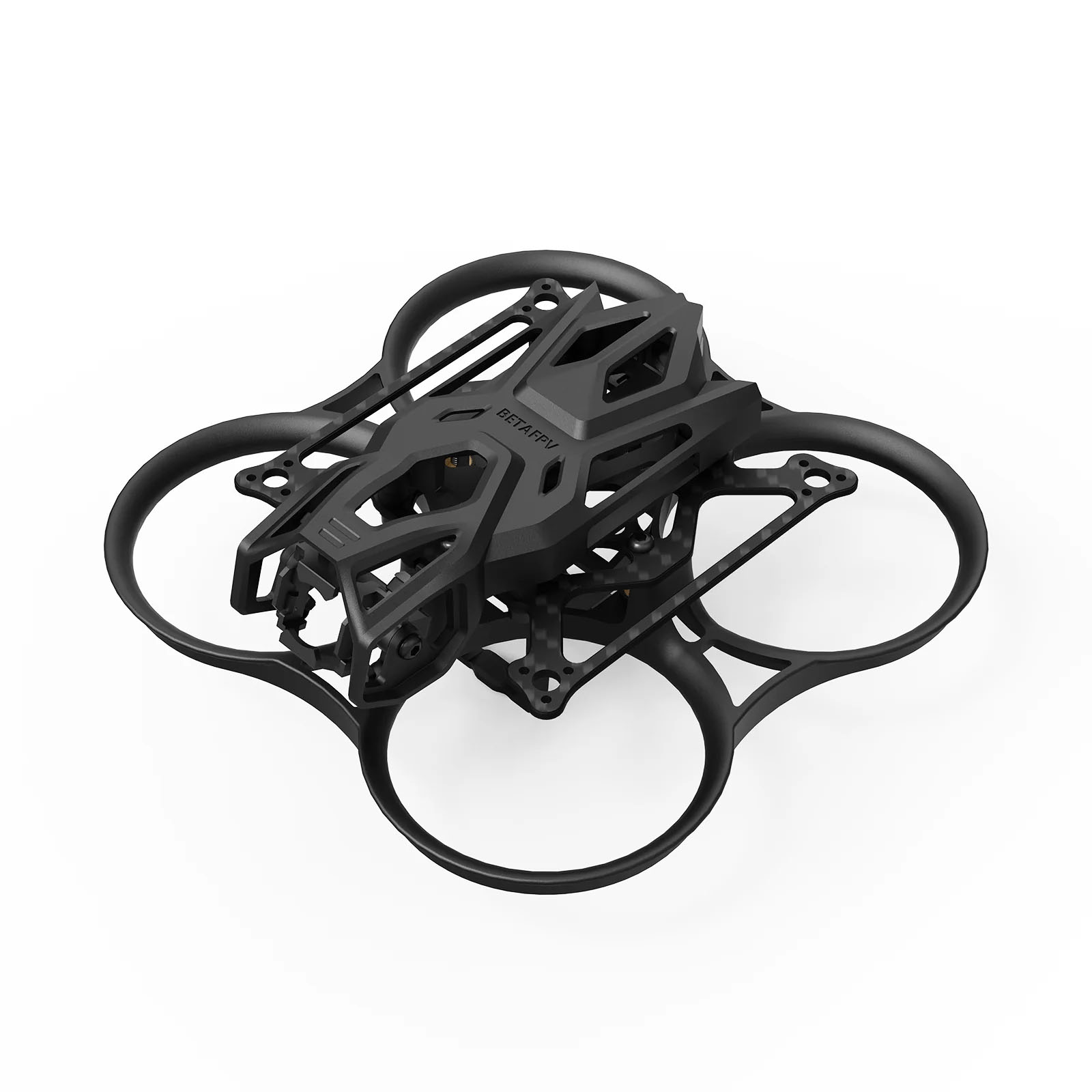

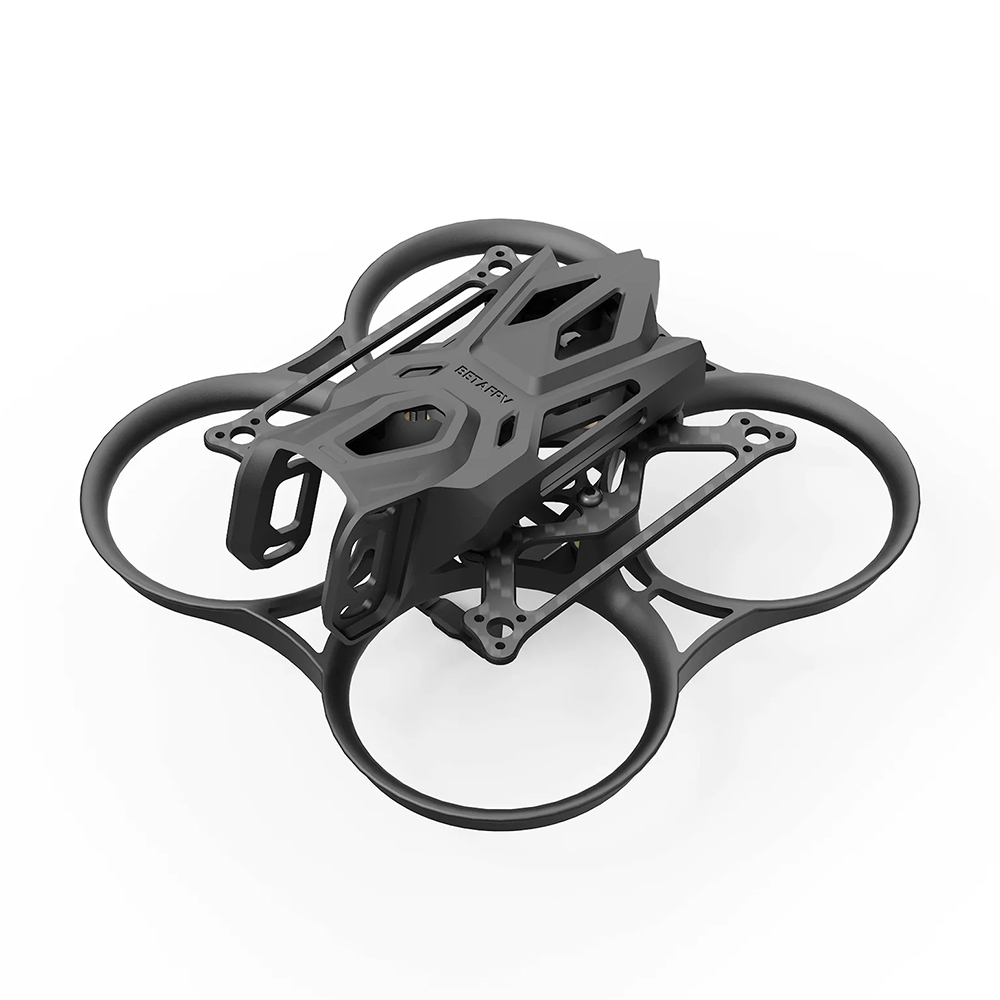

Pavo Femto is a frame designed for building a small 1.6" Cinewhoop with a 75 mm motor-to-motor distance. The frame consists of a 2 mm carbon plate combined with a plastic propeller guard and a PA12 nylon canopy. It is optimized for DJI O4 digital video transmission and includes a reinforced protective structure for the O4 video transmitter. A dedicated O4 camera mount with camera holder and damping elements is also included.
The frame is designed for AIO boards with 25.5×25.5 mm mounting holes and motors with M1.4 ø6.6 mm holes. The camera mount width is 20 mm. The duct weighs 8.6 g, the complete frame weighs 22 g, and the canopy weighs 6 g. The canopy is designed to provide stability while protecting the camera and electronics during crashes.
Key Features
- Motor diagonal distance: 75mm
- Carbon thickness: 2mm
- Plastic material: PA12
- Frame weight: 22,16g
- Mounting holes for AIO plate: 25,5x25,5mm
- Mounting holes for motors: 3x M1.4 ø6.6
- Width for camera: 20mm
Package Includes
- 1x Carbon Frame
- 1x Propeller Covers
- 1x Top Cover
- 1x DJI O4 Camera Mount
- 1x Linear Antenna
- 1x Screw Set
- 1x Softmount Kit
