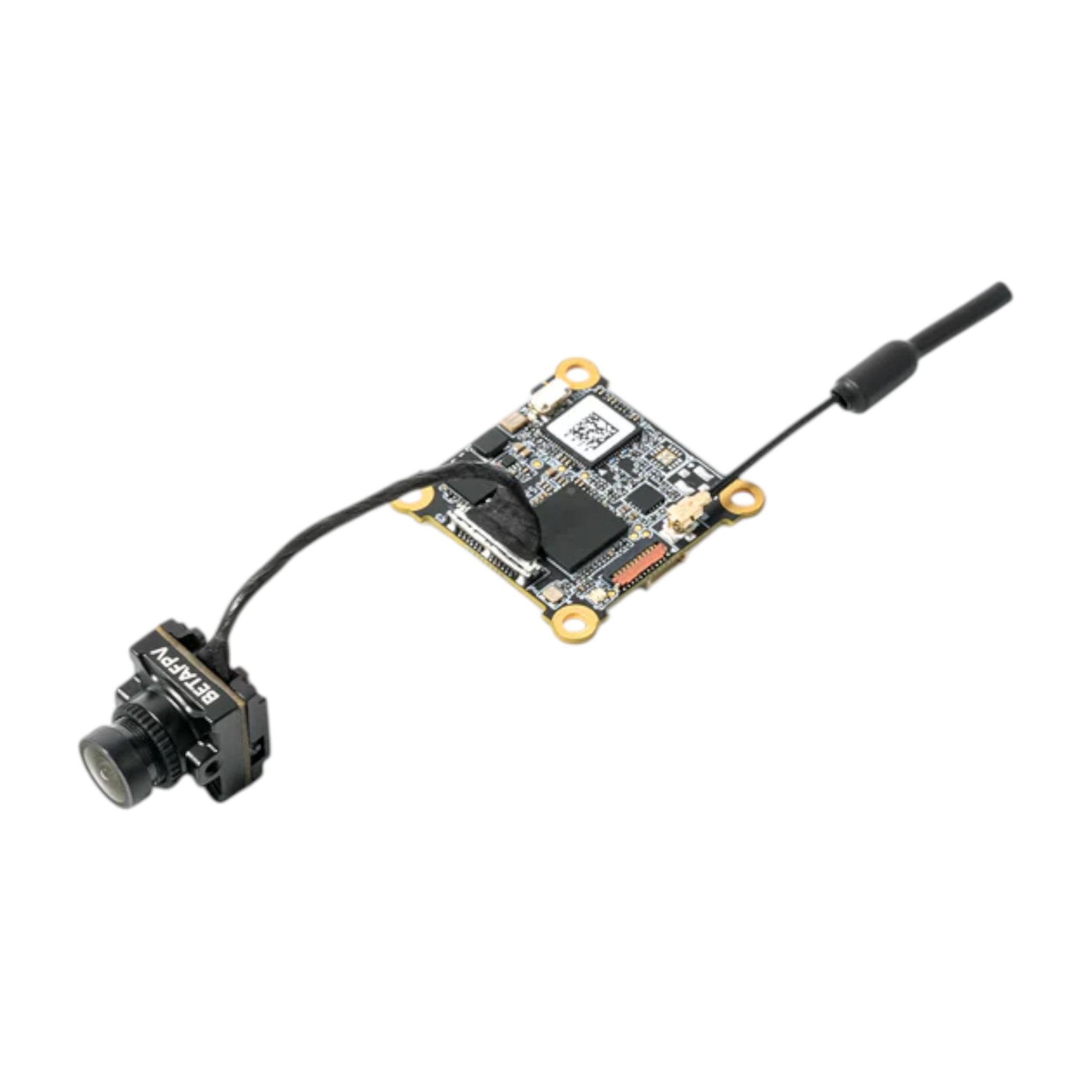

BetaFPV P1 Air Unit HD
BetaFPV P1 Air Unit HD is a camera with video transmitter (air unit) for the ArtLynk digital image transmission system. The P1 Air Unit video transmitter is suitable for small FPV drones. The camera uses a 1/2.9" CMOS sensor with a wide 170° field of view, the video transmitter has a maximum transmit power of 200 mW and data rate up to 20 Mbps at a bandwidth of 10 MHz. It connects to the flight controller via a 6-pin SH1.0 connector and communicates using the MSP (OSD) protocol. The video transmitter has mounting holes with a spacing of 25,5x25,5mm M2,5 (M2 with softmount) and the camera is in nano (14mm) size.
The ArtLynk system is an open digital HD image transmission system for FPV. Thanks to the common standard, flight units, FPV goggles and receiver modules from different manufacturers are mutually compatible. The system includes brands such as BetaFPV, HGLRC, SkyZone or TJRC. ArtLynk transmits image in 1080p at 60fps with latency around 60ms and, compared to analog transmission, offers a significantly cleaner and more stable image. It is an affordable alternative to DJI and Walksnail for pilots who want HD quality without the closed ecosystem of a single brand.
Key Features
- Input voltage: 5V
- System: ArtLynk
- Camera sensor: 1/2.9" CMOS
- FOV: 170°
- Resolution: 1080p / 60fps
- Latency: approx. 60 ms
- Transmitting power: 200 mW
- Data rate: up to 20 Mbps (MP4)
- Bandwidth: 10 MHz
- Connector: SH1.0 6-pin (MSP/OSD)
- Camera size: 14x14x17 mm (nano)
- Video transmitter size: 30x30x5,5 mm
- Mounting holes: 25,5x25,5 mm M2,5 (M2 with softmount)
- Weight: 6,8 g
User Guides
Package Includes
- 1x Camera with video transmitter (air unit)
- 1x Antenna
- 1x Connecting cable
- 1x Accessories set
