BetaFPV Meteor 75 Pro II

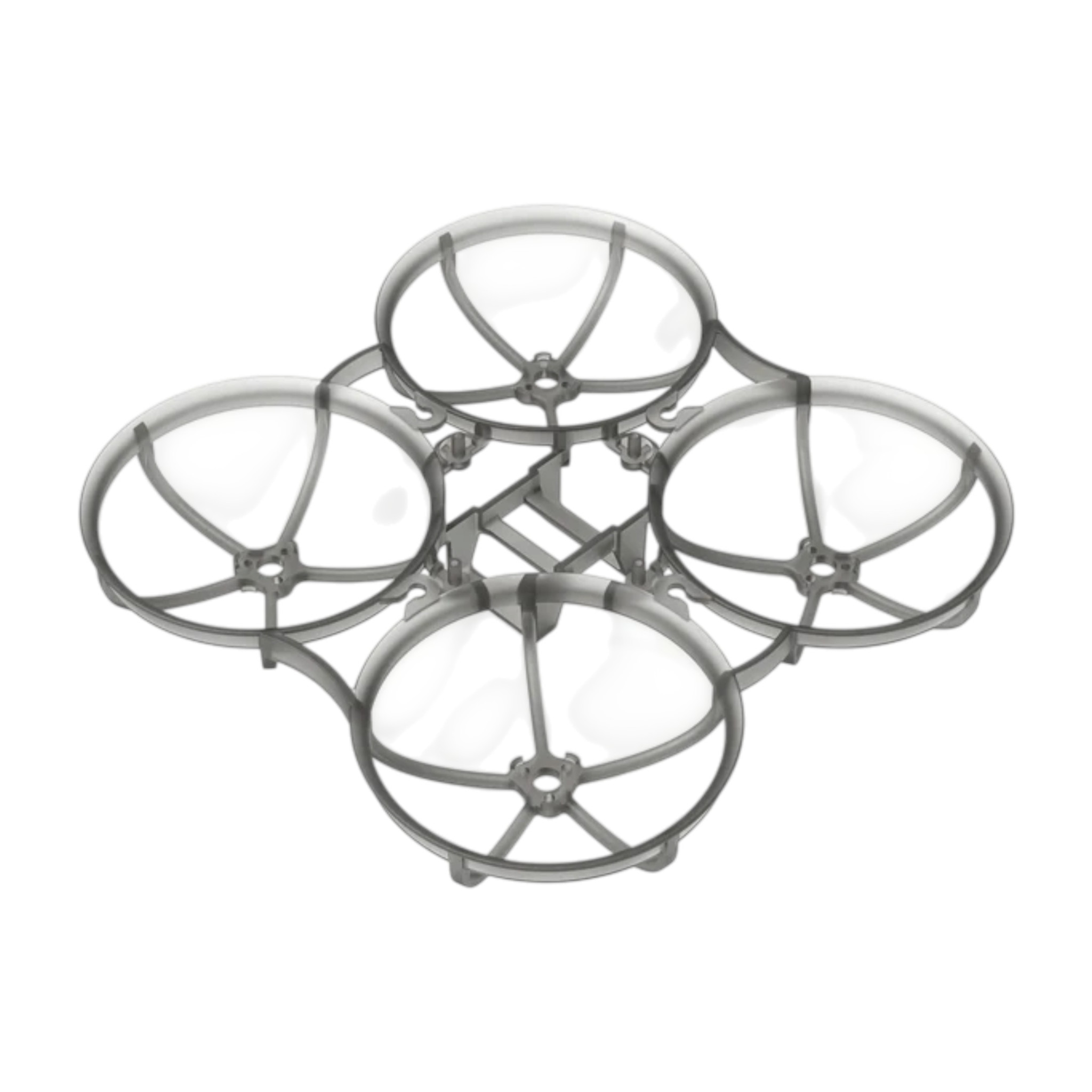

BetaFPV Meteor75 Pro II is a plastic frame for 1S whoops with an 80mm diagonal motor-to-motor distance and 45mm propellers. It is the second generation of the Meteor75 Pro frame, also used for the complete BetaFPV Meteor75 Pro II drone.

Compared to the first generation, the frame has five arm braces instead of six and curved protective rings (“ducts") with a lower height of 4,8mm, reducing both weight and air resistance. The frame weighs 5,80g, almost 2g less than the original Meteor75 Pro (7,73g). It is made of polypropylene (PP), which is flexible and impact-resistant, making it suitable for indoor and outdoor flying.

Motors are secured with three M1,4 screws in 6,6mm mounting holes. The manufacturer recommends 1102 motors and M1,4x3mm screws for the frame. The flight controller is mounted on a 26x26mm pattern — compatible boards include BetaFPV Matrix 1S 3IN1/4IN1, Matrix 1S 5IN1 and Matrix 1S 5IN1 II. The battery slot measures 16,1x6,3mm and is designed for LAVA II 480, 580 and 680mAh 1S batteries.

The canopy attaches to the frame via four holes for rubber damping balls, without screws. This mounting dampens vibrations and reduces image “jello". The frame is designed for the Canopy II for O4 Air Unit and also supports the Canopy for O4 Air Unit, Air II Canopy and Micro Canopy.

The package includes the frame only. Canopy, screws, motors, propellers and electronics are not included (sold separately).

The black + white variant is supplied as a pack of two. Other colour variants are supplied individually.
