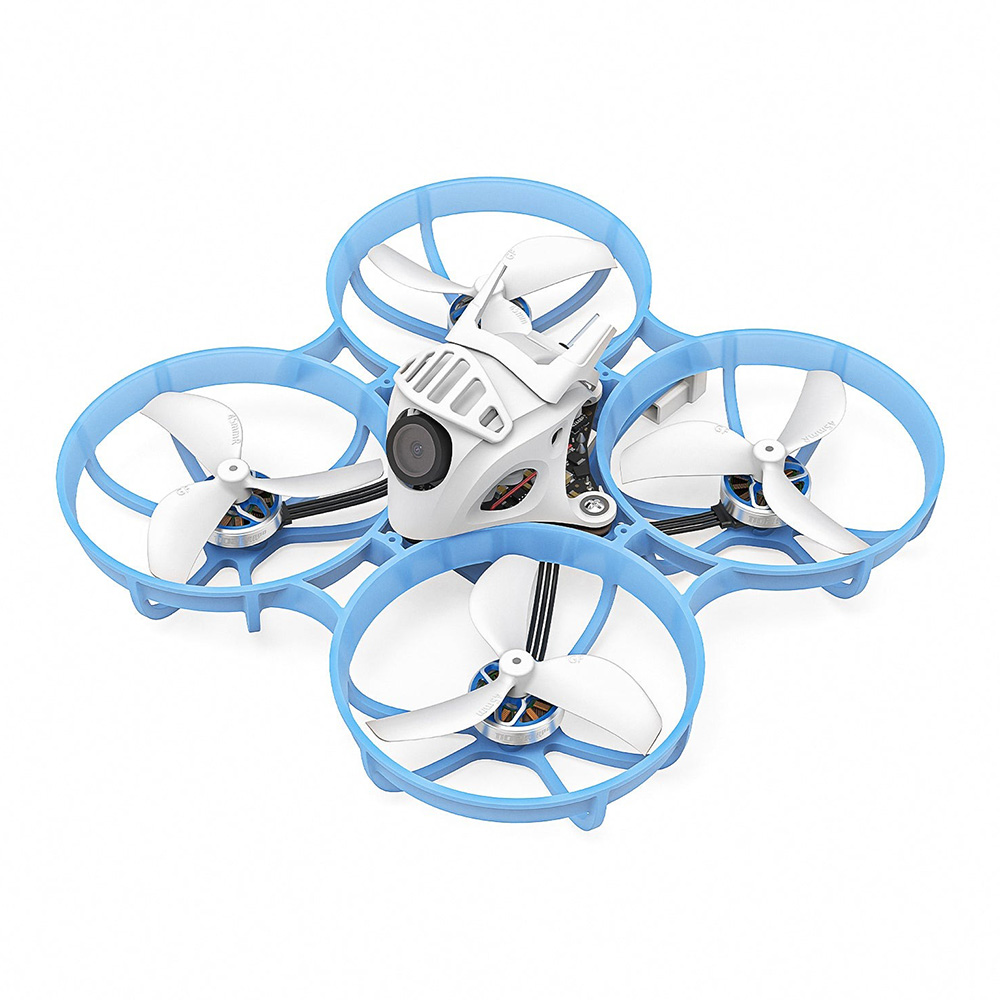

BetaFPV Meteor 75 Pro - 1S ELRS

Meteor75 Pro is a larger 1S Tinywhoop with an analog video transmission system and 45mm propellers. It is suitable for flying outdoors in the garden or park, as well as indoors at home or in an office. The drone has a motor-to-motor diagonal of 80.8 mm and a weight of approximately 30 g, making it relatively safe to fly.

The core of the drone is the BETAFPV Matrix 1S 5-in-1 AIO board, which integrates the flight controller, ESC, ELRS receiver, and analog video transmitter into a single unit. The flight controller is based on the G473 processor paired with a ICM42688P gyro. The ESCs run on Bluejay firmware. The built-in ELRS receiver is connected via UART, operates on 2.4 GHz, and uses a wire antenna. The integrated VTX supports the SmartAudio protocol for easy configuration, with adjustable output power from 25–400 mW. The antenna connects via a u.FL connector. The board also includes an analog OSD chip. The analog video system comes with a C03 camera offering 1200 TVL resolution.

The board features motor connectors for easy installation. The drone is powered by BETAFPV 1102 22000KV motors with 1.5 mm shafts, which, combined with Gemfan 45mm-3 propellers, deliver excellent performance.

The LiPo battery slides into the 16.7×6.3 mm frame slot. The drone is equipped with a BT2.0 connector.

Recommended batteries are 1S LiPo with around 500 mAh capacity. Two batteries and a simple USB charger are included in the package.
