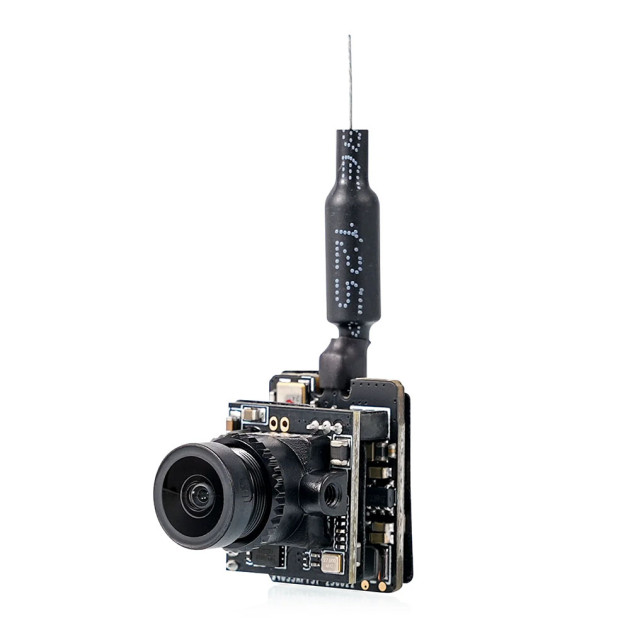

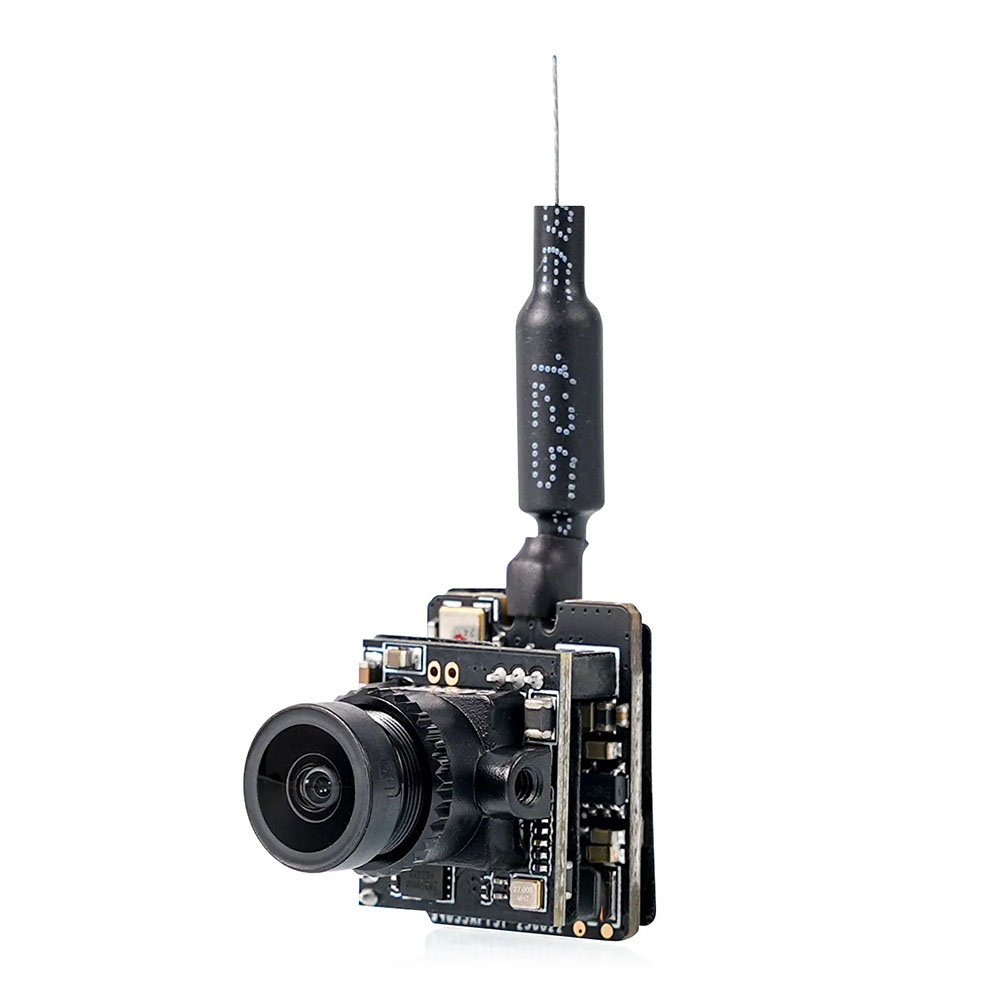

BetaFPV C04 is a FPV camera with a built-in analog video transmitter. It comes with a connector and solder pads for easy connection. The camera with video transmitter is suitable for small Tinywhoops or small RC airplane models.
The camera features a 1/3" CMOS sensor and offers a resolution of 1200 TVL with an aspect ratio of 4:3. The field of view is 160°, providing a wide perspective for indoor and outdoor flying. The total weight including the antenna is only 4.14g. The VTX operates in the 5.8 GHz band and has adjustable power up to 25–400mW. The camera with transmitter has a separate video output from the camera and video input for the video transmitter. It allows the use of analog OSD from the drone's flight controller. There is also Smart Audio for adjusting the power and channel of the video transmitter.
Key Features
- Input voltage: 5V
- Sensor: 1/3" CMOS
- Horizontal resolution: 1200TVL
- FOV: 160°
- Standard: NTSC
- Aspect ratio: 4:3
- Video transmitter power: 25-400mW
- Size: 14.5x21x23.5mm
- Weight: 4.14g
- Number of channels: 40
Package Includes
- 1x Camera with VTX
- 1x Cable
- 1x Screw set
