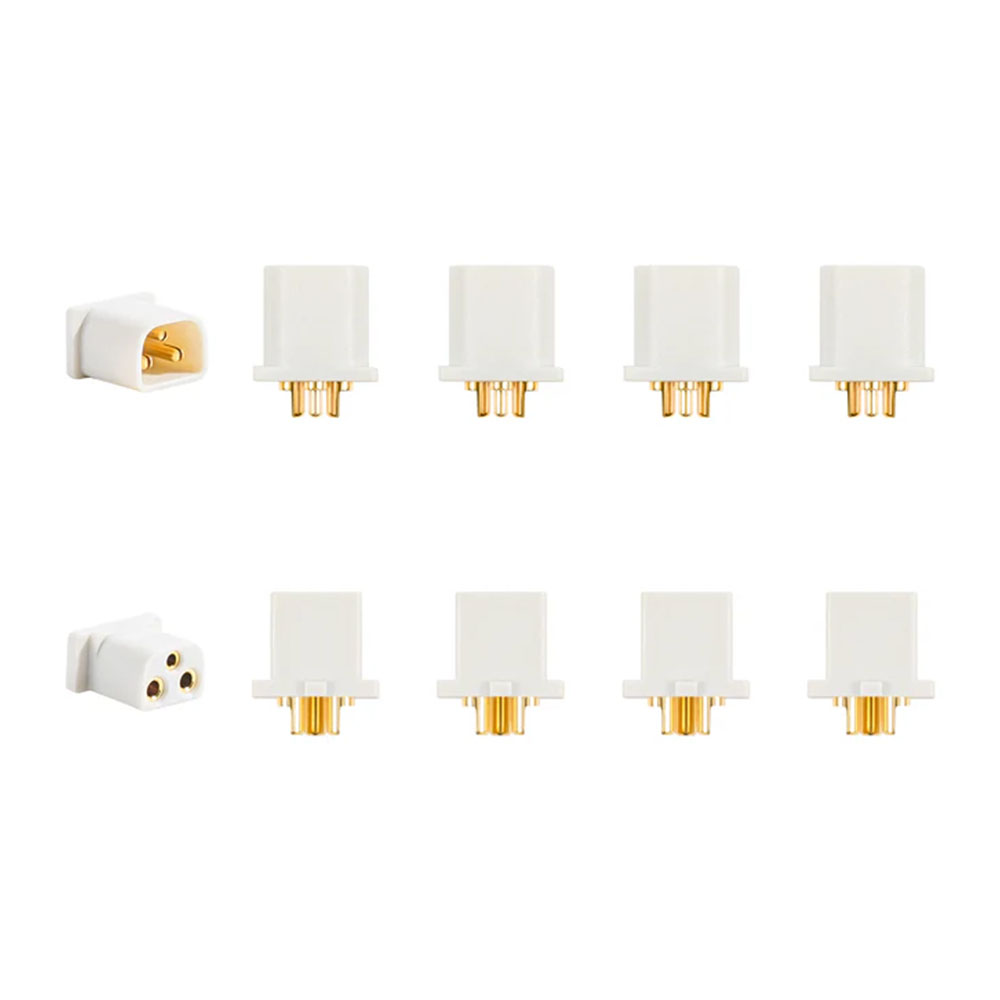

Set of BetaFPV BT3.0 connectors. BT3.0 connectors are specifically designed for 2S batteries used in small FPV drones. They use a three-pin solution that combines power contacts for discharging while allowing balanced charging without the need for a separate balance connector. This simplifies the construction and use of 2S batteries.
The connectors are very small and lightweight, with the entire pair weighing only 1.28 g, which is less than commonly used connectors. Despite their small size, they handle a continuous current of 12 A and temporarily up to 20 A.
BT3.0 connectors can also be used as a universal connector with two power and one signal pin, for example, for connecting powerful servos or programmable LEDs.
Key Features
- BT3.0 Male: 0.6g, 11.2*9.2*6.1mm
- BT3.0 Female: 0.68g, 10.1*9.1*5.4mm
- Plastic: Nylon PA9T
- Current: 12A
- Connection lifespan: 1000
- Material: Gold-plated copper
Package Includes
- 10x BT3.0 connector (as per variant)
