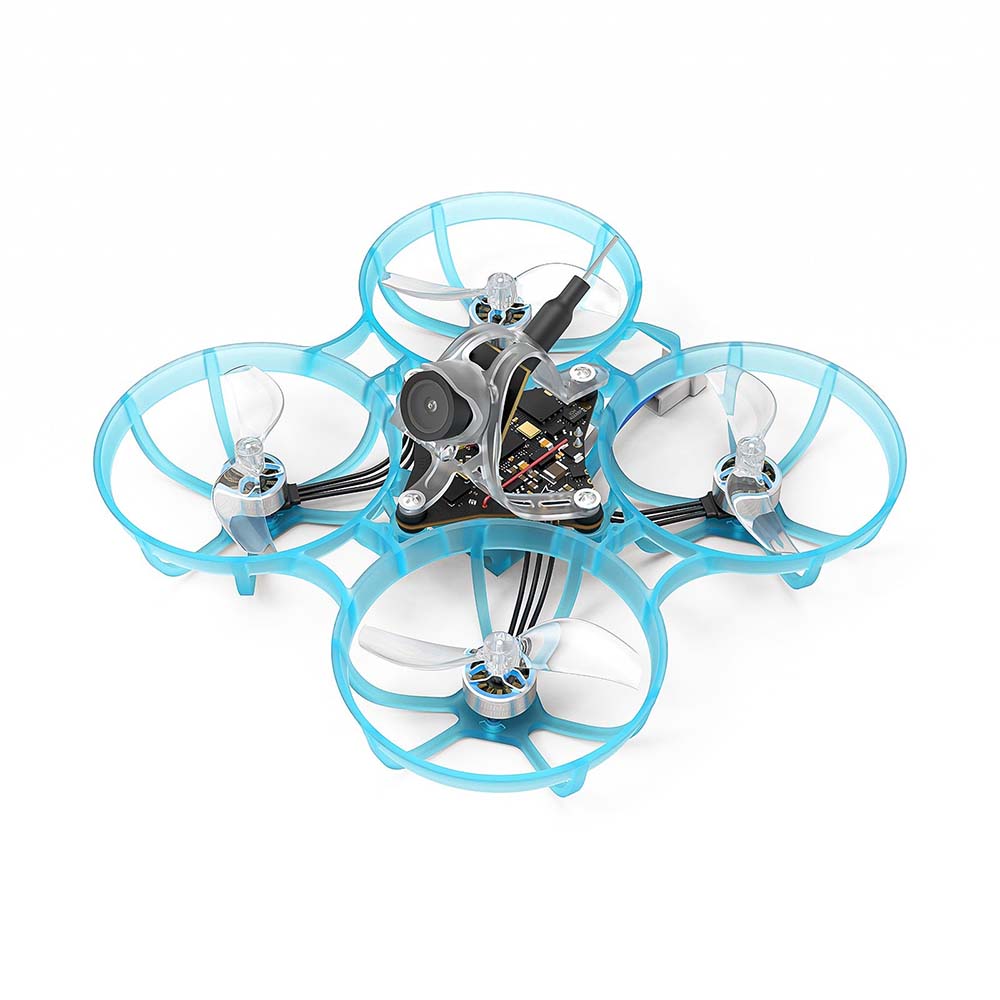

BetaFPV Air75 - 1S ELRS

Air75 is a lightweight 1S Tinywhoop designed for racing and freestyle flying both indoors and outdoors. The drone uses 40mm propellers and has a motor-to-motor diagonal of 75 mm. With a low weight of around 21 g, it offers agile flight characteristics and precise control while maintaining flight safety.

The heart of the drone is the modern AIO unit BETAFPV Air 1S 5-in-1, which combines the flight controller, ESC, ELRS receiver, and analog video transmitter with an integrated OSD chip on a single board. The G473 processor paired with the ICM42688P gyro ensures accurate control and smooth response. The integrated video transmitter supports power levels from 25–400 mW and uses the SmartAudio protocol for easy configuration. The drone comes equipped with a C03 camera offering 1200 TVL resolution, a 160° field of view, and a 4:3 aspect ratio. The camera is protected by a flexible Air Canopy with an adjustable tilt range of 25–50°. The integrated ELRS receiver operates on 2.4 GHz and uses a wire antenna.

The BETAFPV 0802SE 23000KV motors combined with Gemfan 40mm-2 propellers deliver ample power for dynamic and precise maneuvers. The Air75 frame is a lightweight version of the Meteor75 frame and weighs only 4.45 g.

Air75 is an ideal choice for experienced pilots looking for a lightweight and high-performance drone for agile flying.

The LiPo battery fits into a frame slot measuring 16.7×6.3 mm. The drone is equipped with a BT2.0 connector.

Recommended batteries are 1S LiPo with a capacity of around 450 mAh. Batteries are not included.
