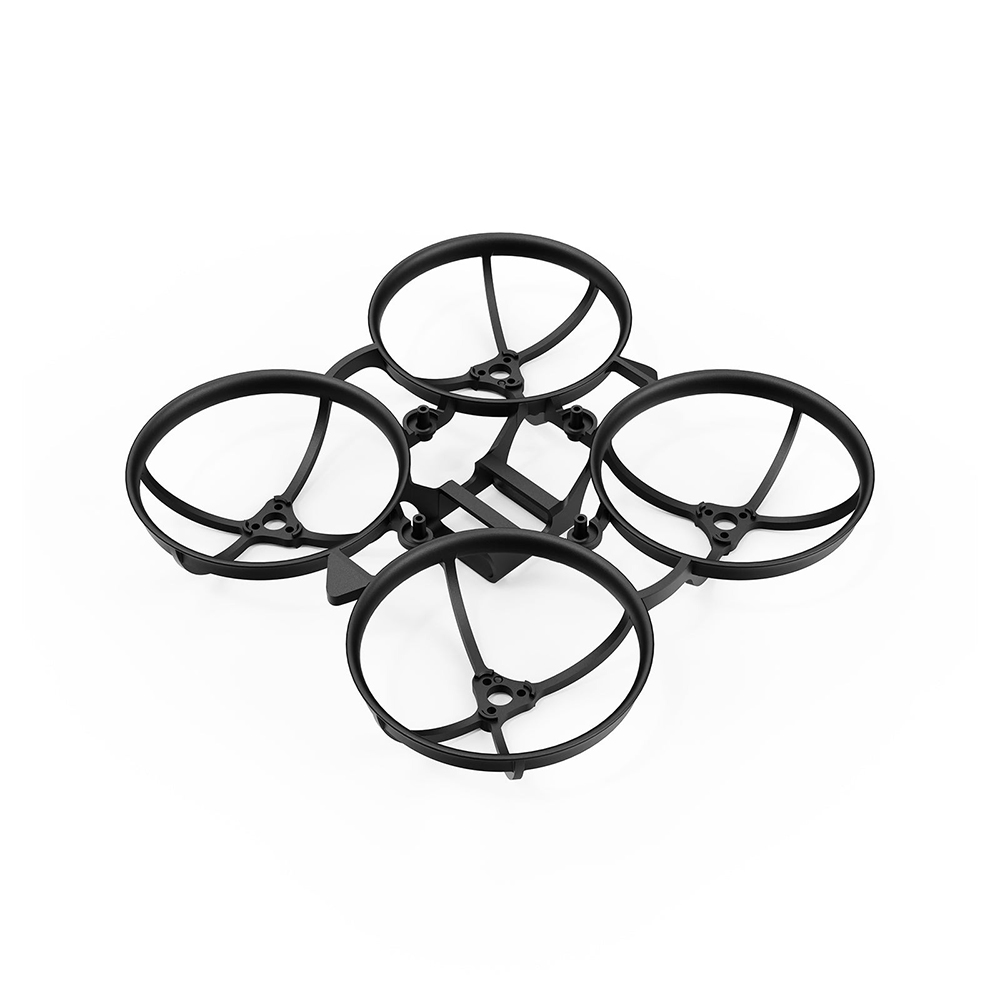

Air75 II Brushless Whoop Frame is a lightweight frame for 1S and 2S whoops with a motor spacing of 75mm. Compared to the first generation, the weight has been reduced by 10% to 4g, featuring a redesigned structure with 4 arm reinforcements instead of 6 and optimized duct geometry.
The frame is made of durable polypropylene, which excellently absorbs impacts and withstands harder crashes. The design has been modified to reduce vibrations and provide a more stable flight.
Additional practical details include motor slots with screw protection, enlarged mounting holes for the flight controller 25.5 × 25.5 mm, and space for a battery of size 16.3 × 6.3 mm. The overall size of the frame is 99.1 × 99.1 × 16.2 mm.
Key Features
- Diagonal motor spacing: 75mm
- Mounting holes for AIO board: 25.5x25.5mm
- Propeller size: 40mm (1.6")
- Guard height: 4.5mm
- Battery slot size: 16.3x6.3mm
- Material: Polypropylene
- Weight: 4g
Package Includes
- 1x Frame
