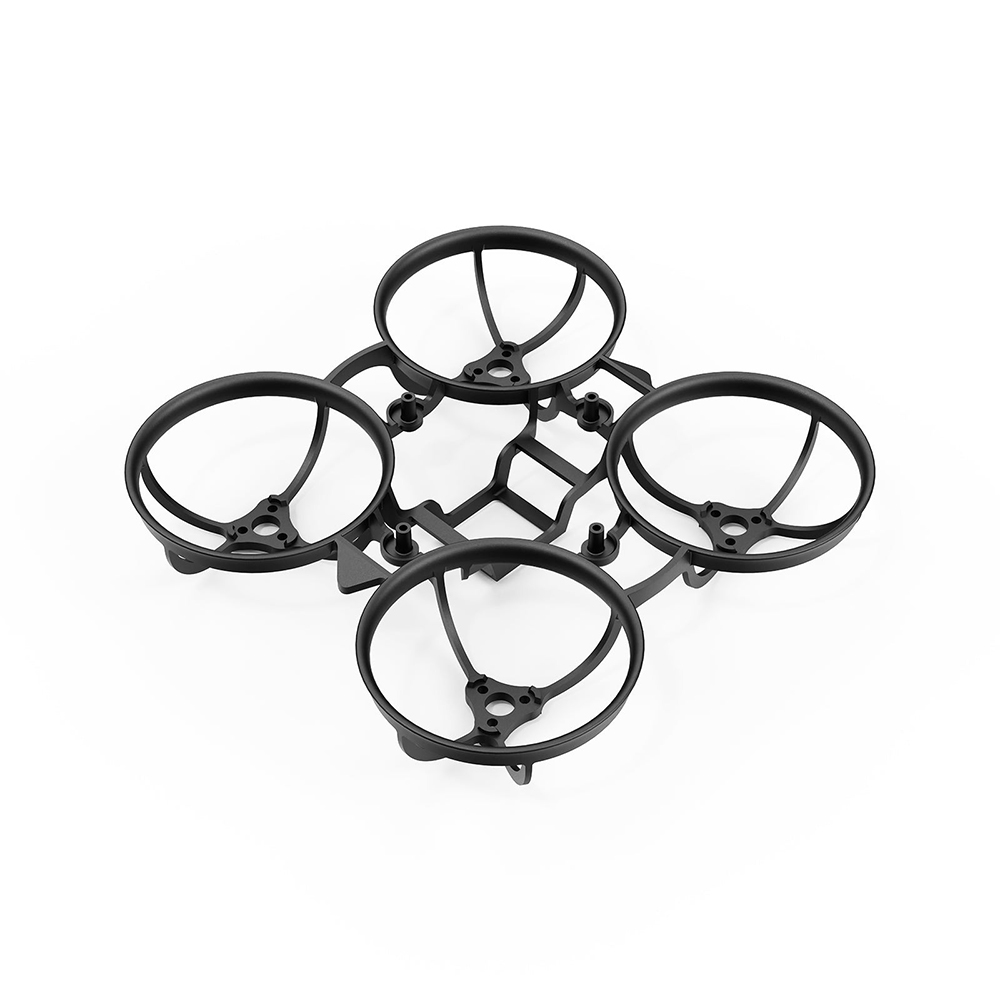

Air65 II is a lightweight frame for 1S TinyWhoops with a motor spacing of 65 mm and a weight of just 2.65 g. Compared to the first generation, it has a revised design with 4 arm reinforcements instead of 6 and optimized duct geometry.
The frame is made from durable polypropylene, which excellently absorbs impacts and can withstand harder falls. Practical details include enlarged mounting holes for the flight controller (25.5 × 25.5 mm), grooves for precise motor placement, and a protection for motor screws that reduces the risk of damage during a fall. The battery slot measures 11.4×6.2 mm and the overall dimensions of the frame are 82.6×82.6×15.1 mm.
Key Features
- Propeller size: 31mm (1.2")
- Weight: 2.65mm
- Protector height: 3.8mm
- Material: Polypropylene
Package Includes
- 1x Frame
