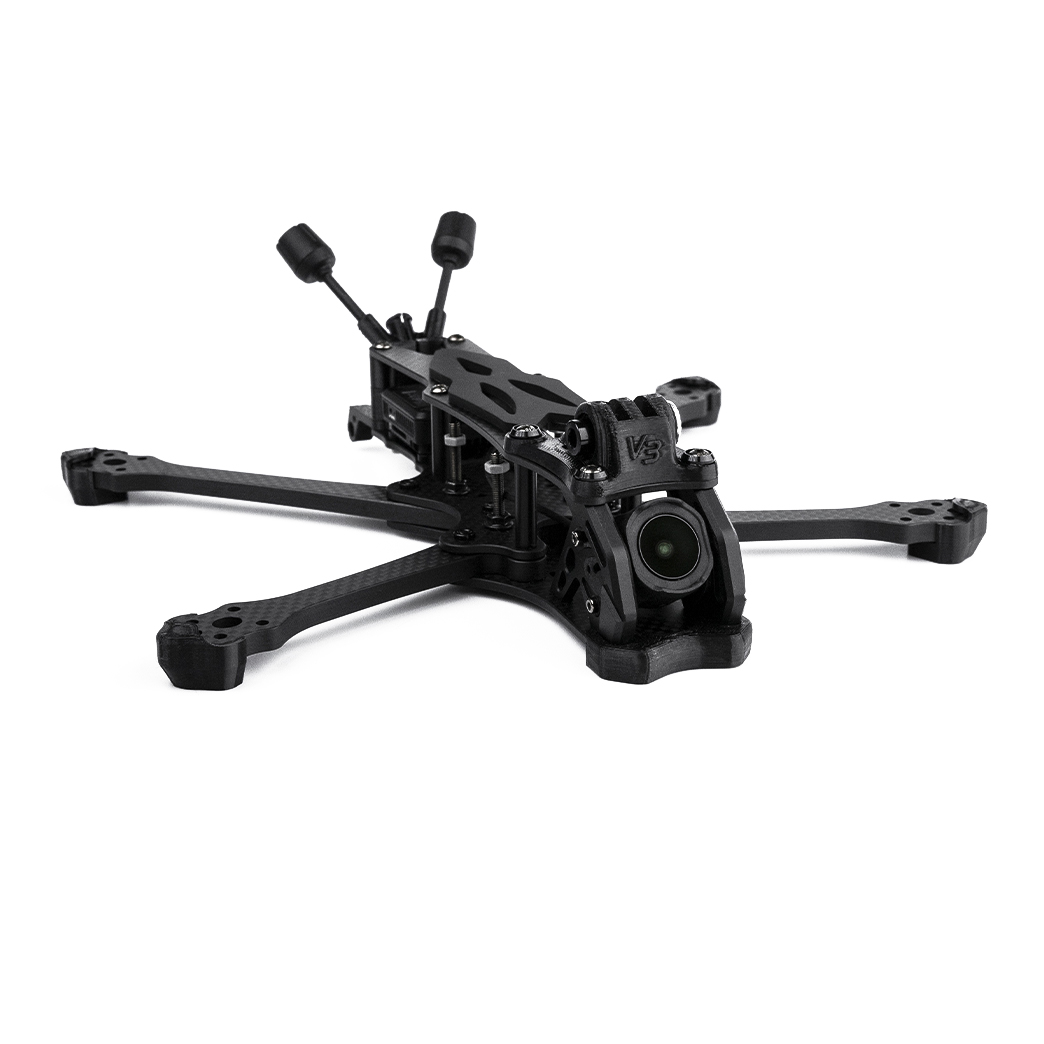

BCrow Swift V3 DC is a top-tier frame designed for building a freestyle drone. The Deadcat configuration is ideal for use with digital video transmission. The front arms are shifted further to the side, so disturbing propeller edges are not visible in the video. The frame excels in high durability while maintaining a reasonable weight of 142 grams. It supports both analog and digital video systems, including DJI O4 Pro.
For maximum strength, the arms are machined from 5.5mm Toray T700 carbon. The front camera mount is made from durable 7075 aluminum alloy, and the camera is secured via soft softmounts that dampen vibrations. The frame accommodates stacks with mounting hole spacing of 30.5×30.5 mm and 20×20 mm. At the rear, there is space for a video transmitter with a mounting hole spacing of 20×20 mm or 25.5×25.5 mm. The frame also includes a aluminum heatsink that ensures effective heat dissipation from the video transmitter.
The DJI O4 unit is not included with the frame.
Key Features
- Diagonal motor distance: 230mm
- Arms: 5.5mm Toray T700
- Camera mount: Aluminum 7075
- Heatsink: Aluminum 6061
- Mounting holes for stack: 20x20/30.5x30.5mm M3
- Mounting holes for VTX: 20x20mm M2
- Mounting holes for motors: 16mm M3
- Max. propeller size: 5.1"
- Camera size: 19/20mm
- Height for stack: 23mm
- Weight: 142g
Package Includes
- 1x Frame
